Background SHADOW 142L/EN
SHADOW

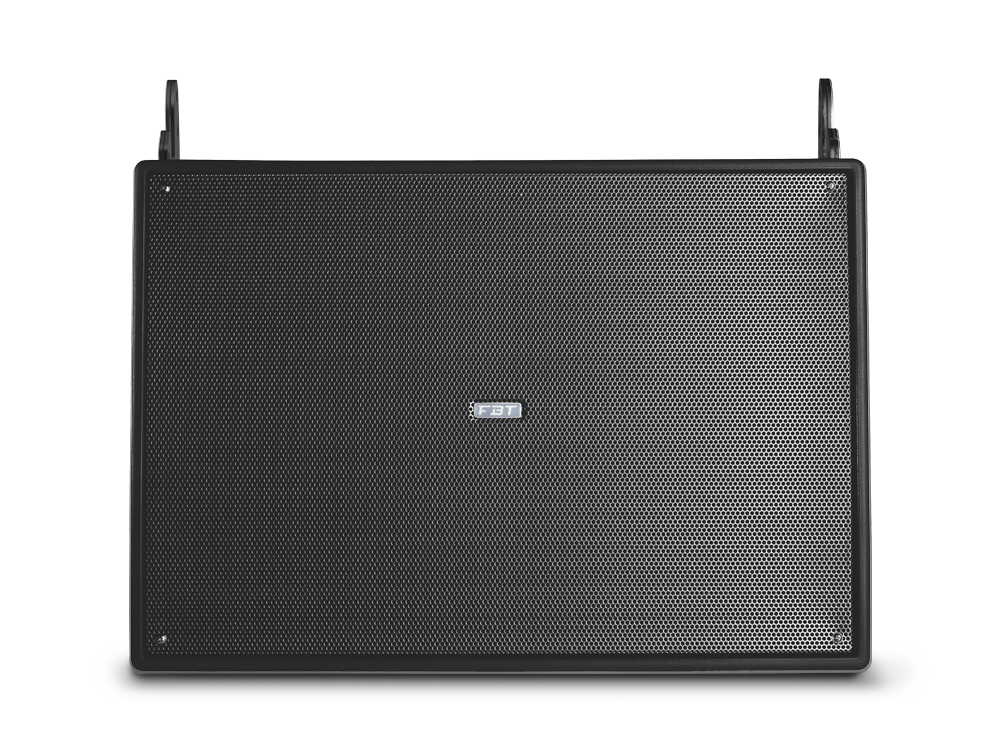

SHADOW 142L/EN

PASSIVE LINE ARRAY 14"

SHADOW 142L/EN

Weatherproof - EN54-24

SHADOW 142L/EN

Click on the image to zoom

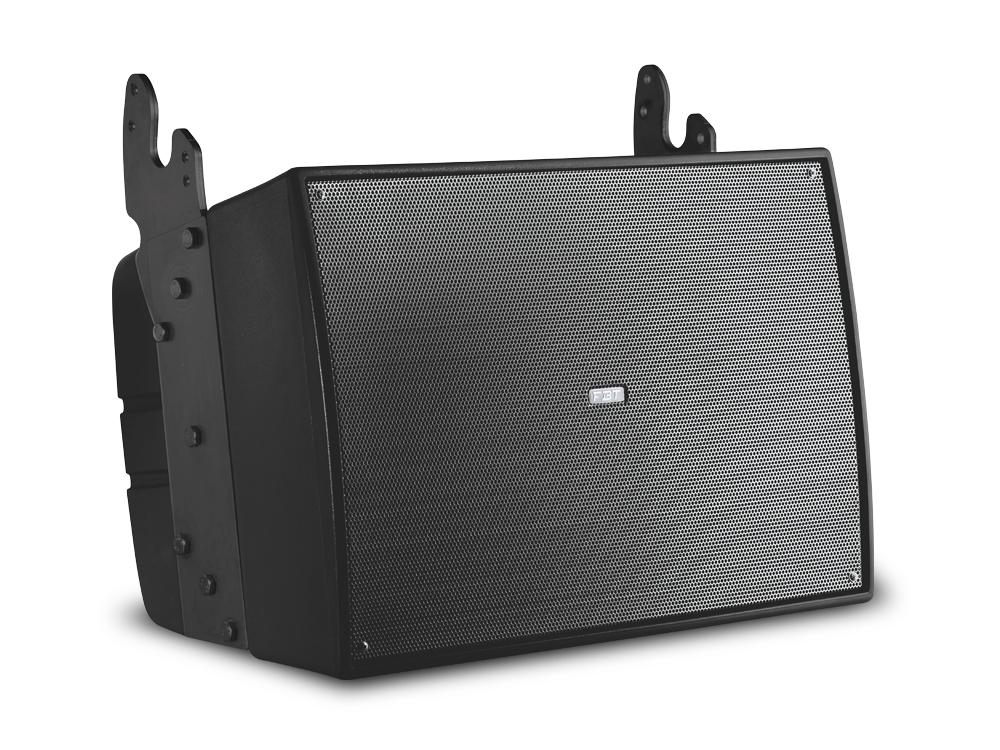

Shadow 142L-EN is a weatherproof full-range 2-way loudspeaker system designed to deliver high SPL and long-throw performance in large outdoor installations. With IP55 protection and a 5VB self-extinguishing PP and stainless steel hardware, it withstands harsh environmental conditions, making it ideal for stadiums, theme parks, swimming pools, and open-air arenas. It features a 14″ woofer with a 3″ voice coil and two 1.4″ HF drivers with 2.5″ voice coils, mounted on a constant directivity horn with a 100° horizontal by 15° vertical dispersion. Its line array configuration ensures uniform coverage over distance, while the robust enclosure integrates a 3-layer water-stop grille and Souriau connectors.

With a peak SPL of 126 dB and frequency response from 63 Hz to 20 kHz, Shadow 142L-EN offers precision and power for speech and music reinforcement in demanding outdoor environments.

  • Configuration: 2-way full-range

  • Low Frequency Woofer: 14″ / 3″ VC

  • High Frequency Drivers: 2 × 1.4″ / 2.5″ VC

  • Dispersion: 100° × 15° (rotatable horn)

  • Recommended Amplifier: 600W RMS

  • Maximum SPL: 126 dB

  • Material: 5VB self-extinguishing, UV-resistant polyethylene and stainless steel hardware with 3-layer water-stop stainless steel grille

Technical Specifications

2 way

600W RMS

1200W

8Ohm

63Hz - 20kHz (@-6dB)

14'' - 3'' coil

1.4'' - 2.5'' coil

126 / 114

4 wire cable

615 x 430 x 415 mm / 24.2 x 17 x 16.3 inch

38.6 Kg / 86 lb

555 x 782 x 540 mm / 21.8 x 30.7 x 21.2 inch

40.8 Kg / 90 lb

Accessories

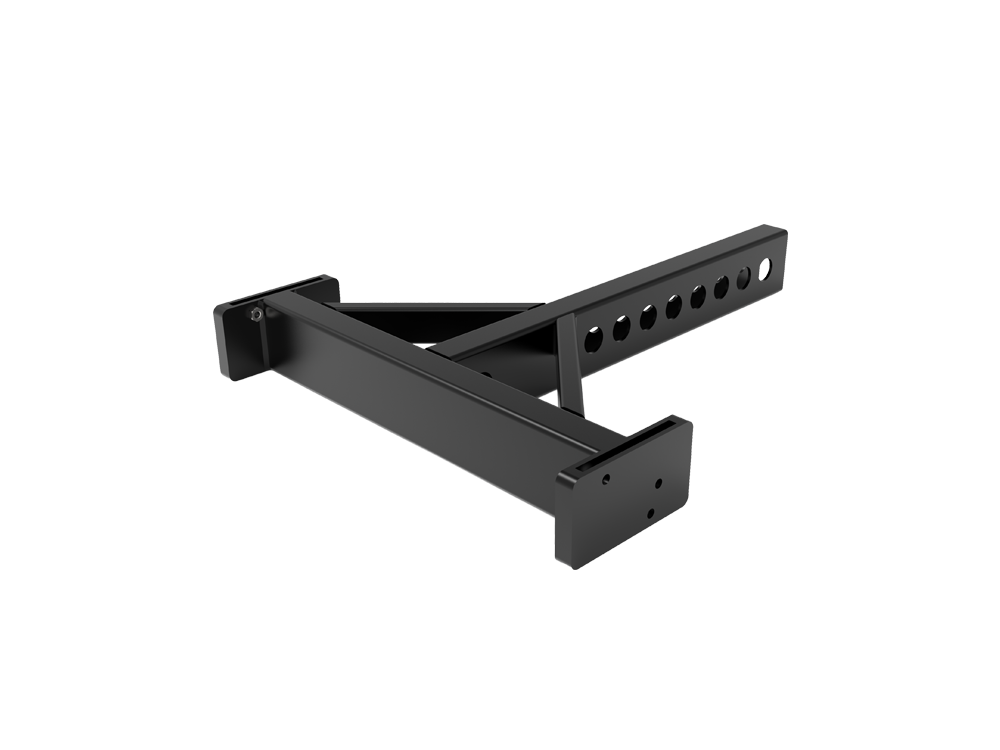

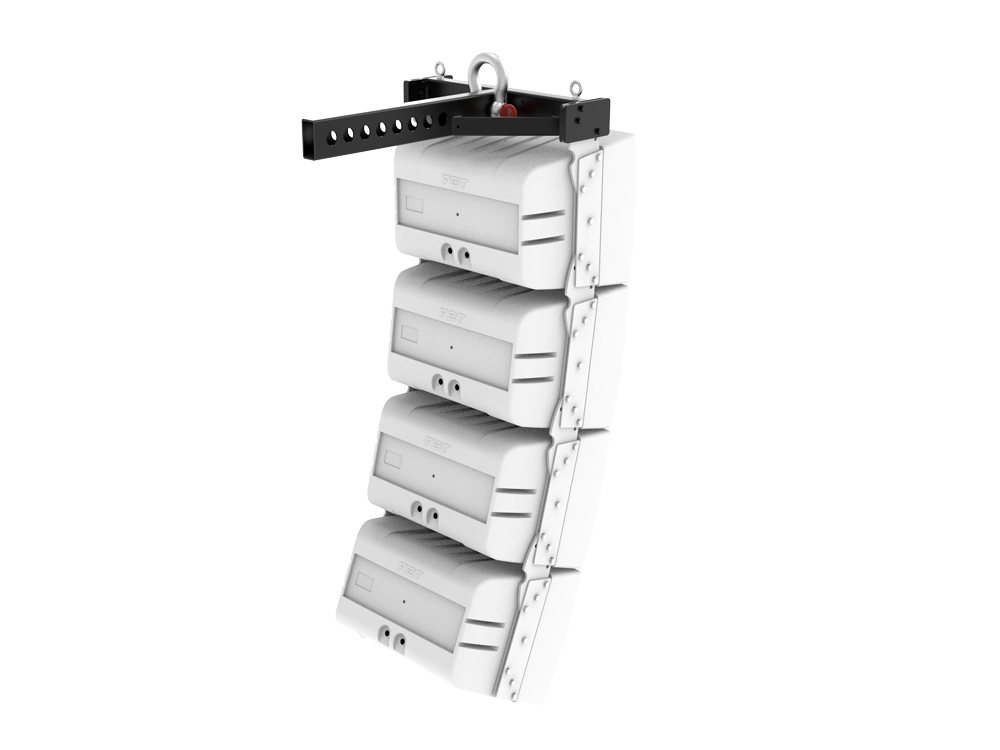

SW-F 142

SW-F 142
