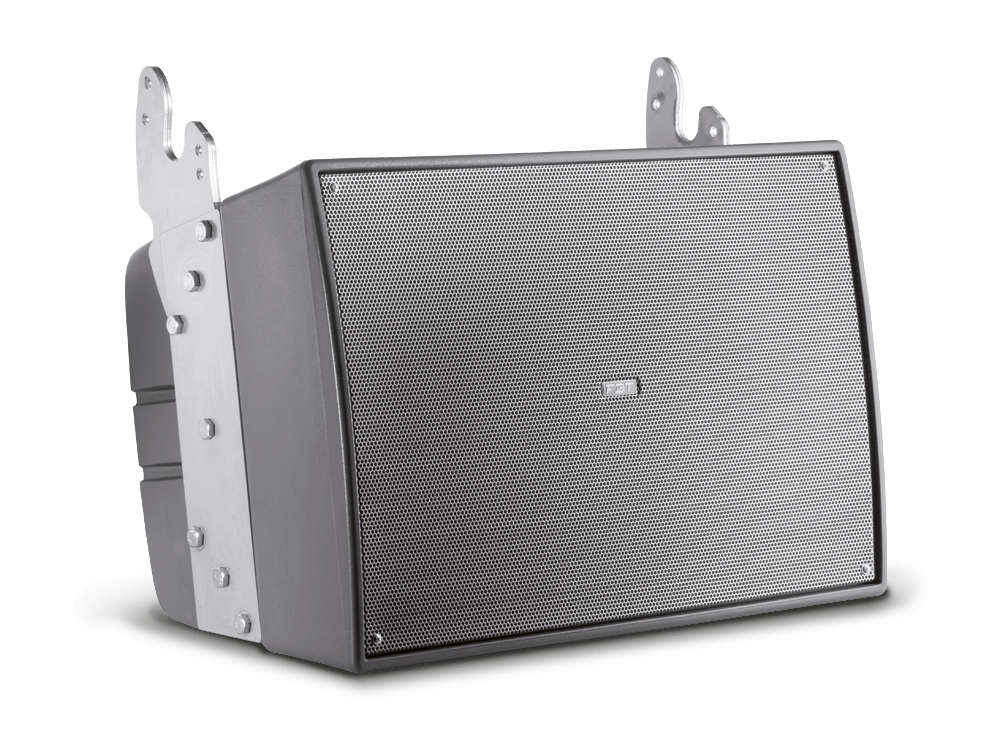

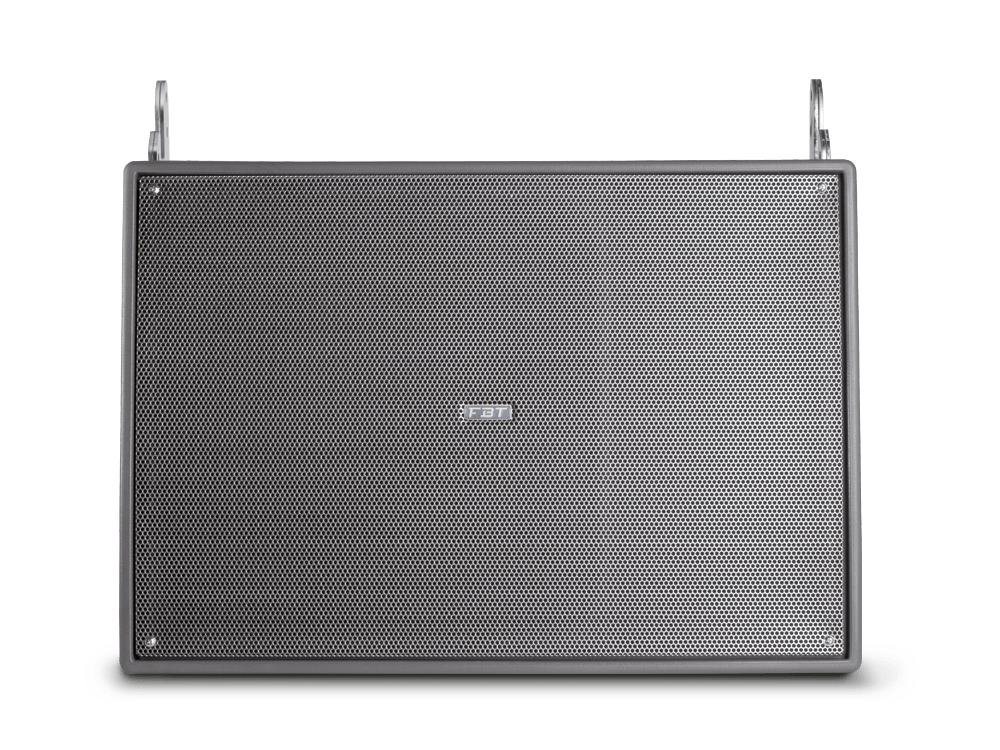

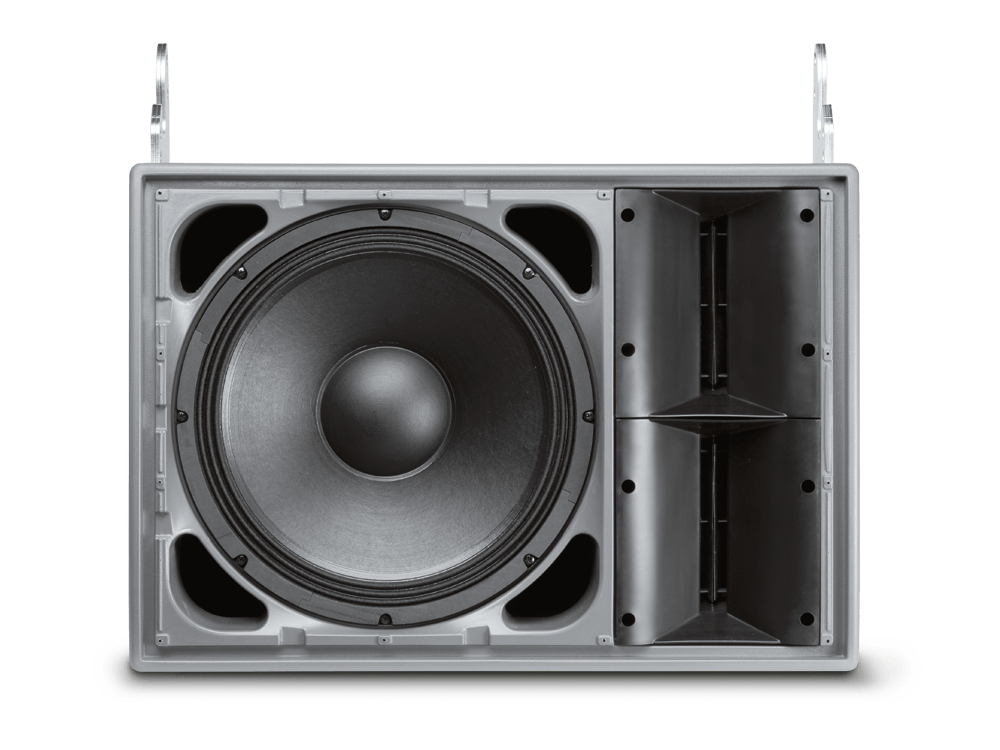

Shadow 142L is a weatherproof full-range 2-way loudspeaker system designed to deliver high SPL and long-throw performance in large outdoor installations. With IP55 protection and a rotomolded polyethylene enclosure, it withstands harsh environmental conditions, making it ideal for stadiums, theme parks, swimming pools, and open-air arenas. It features a 14″ woofer with a 3″ voice coil and two 1.4″ HF drivers with 2.5″ voice coils, mounted on a constant directivity horn with a 100° horizontal by 15° vertical dispersion. Its line array configuration ensures uniform coverage over distance, while the robust enclosure integrates a 3-layer water-stop grille and Souriau connectors.
With a peak SPL of 137 dB and frequency response from 60 Hz to 20 kHz, Shadow 142L offers precision and power for speech and music reinforcement in demanding outdoor environments.
-
Configuration: 2-way full-range
-
Low Frequency Woofer: 14″ – 3″ VC
-
High Frequency Drivers: 2 × 1.4″ – 2.5″ VC
-
Dispersion: 100° × 15° (rotatable horn)
-
Recommended Amplifier: 1000W RMS
-
Maximum SPL: 137 dB
-
Material: UV-resistant molded polyethylene with 3-layer stainless steel grille
Technical Specifications
36197
2 way
1000W RMS
500W
2000W
8Ohm
60Kz / 20kHz (@ -6dB)
14'' - 3'' coil
2 x 14'' - 2.5'' coil
126.5 / 137
100° x 15°
2 x Souriau
615 x 542 x 415 mm / 24.2 x 21.3 x 16.3 inch
38.8 Kg / 85.5 lb
555 x 785 x 545 mm / 21.8 x 31 x 21.4 inch
40.5 Kg / 89.2 lb
Accessories
SW-F 142
