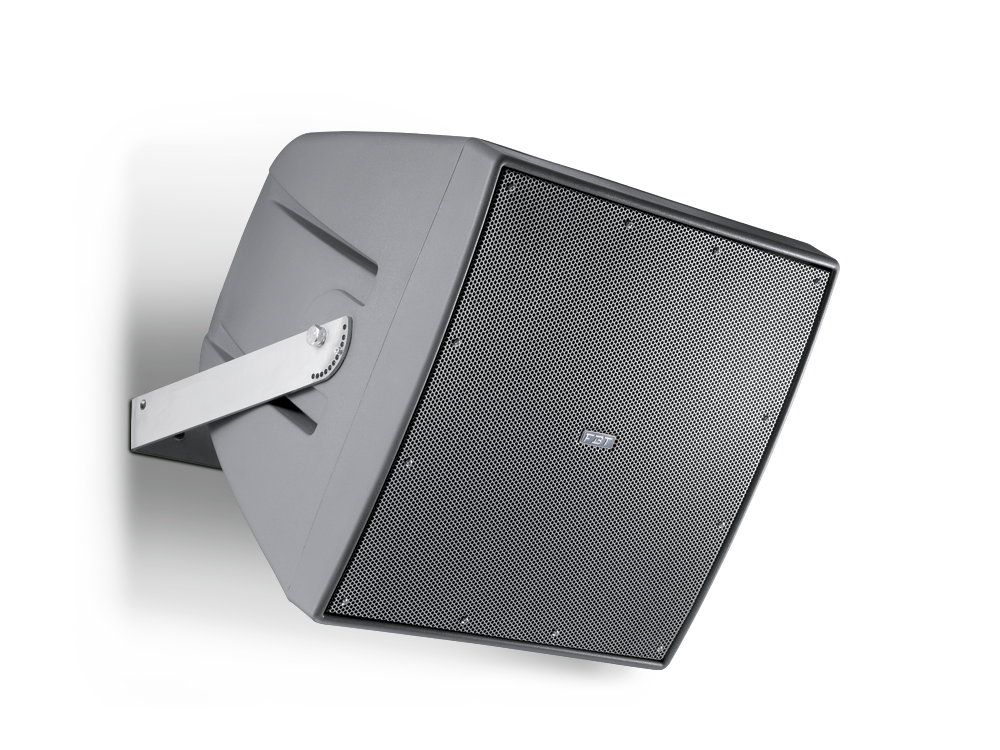

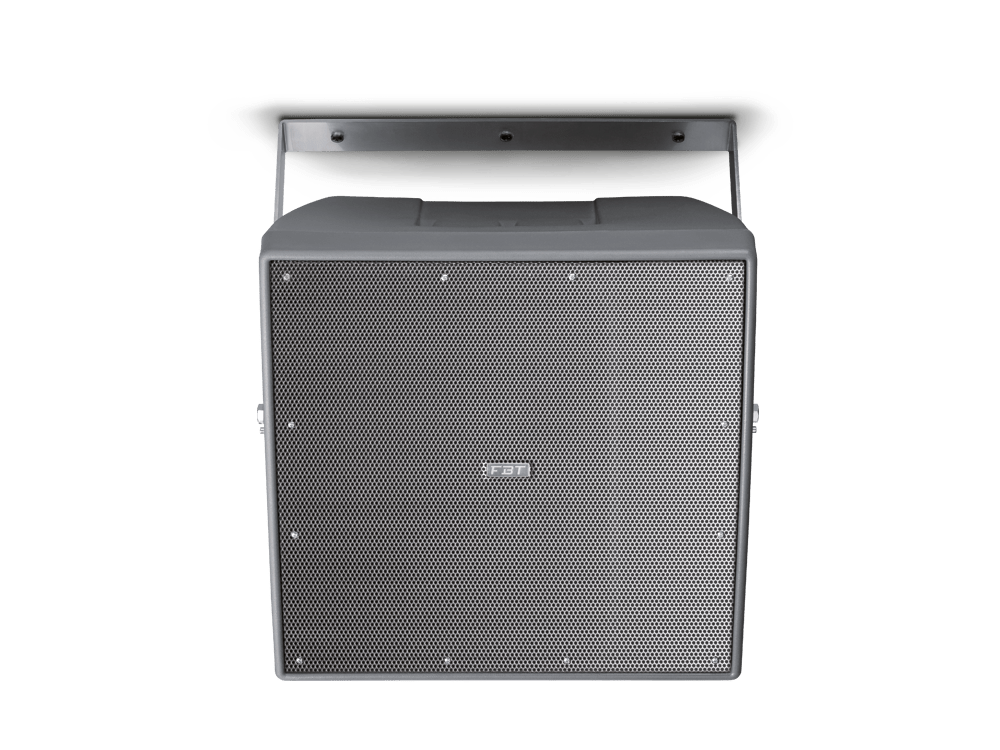

Shadow 114S is a high-performance weatherproof subwoofer specifically designed for outdoor installations requiring solid low-frequency reinforcement in a compact format. Its IP55-rated enclosure, made from rotational-molded polyethylene, is resistant to UV rays, water, and temperature fluctuations making it ideal for sports facilities, theme parks, and multi-purpose venues. Equipped with a powerful 14″ woofer with a 3″ voice coil, the Shadow 114S provides a frequency response from 60 Hz to 400 Hz and a peak SPL of 129.5 dB. An optional 100V transformer is available for high-impedance distributed systems, with a 300W power tap. The cabinet includes a 4-wire input cable for transformer tap selection and a stainless-steel U-bracket for secure wall mounting. With its omnidirectional dispersion and rugged construction, Shadow 114S delivers reliable low-end performance in any weather condition.
The version with a transformer for constant-voltage (100V) systems and a 300W selector (Shadow 114ST) is also available
-
Configuration: Subwoofer
-
Low Frequency Woofer: 14″ – 3″ VC
-
Recommended Amplifier: 700W RMS
-
Transformer (optional): 100V – 300 W tap
-
Maximum SPL: 129.5 dB
-
Material: UV-resistant molded polyethylene with 3-layer stainless steel grille
Technical Specifications
omnidirectional HxV
2 way
700 W RMS
350 W
1400 W
8 ohm
60Hz - 400Hz -6dB
14 - 3 coil inch
125.5 / 129.5 dB
omnidirectional HxV
external KHz
4 wire cable
464 x 430 x 479 mm / 18.2 x 16.9 x 18.8 inch
17.5 Kg / 38.5 lb
585 x 590 x 510 mm / 23 x 23.2 x 20.1 inch
20.3 kg / 44.7 lb
