Background SHADOW 112HC/HC T

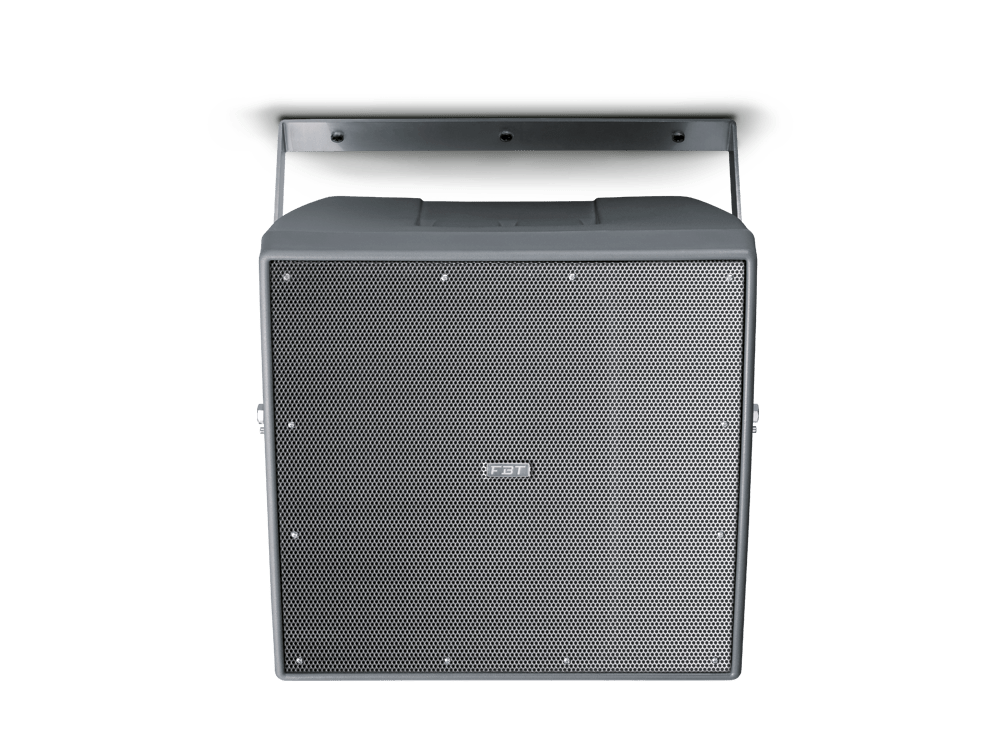

SHADOW 112HC/HC T

PASSIVE POINT SOURCE 12"

SHADOW 112HC/HC T

Click on the image to zoom

Shadow 112HC is a high-output, weather-resistant 2-way coaxial speaker specifically designed for horizontal installation in medium-scale outdoor or semi-outdoor applications. Rated IP55 and fully UV-protected, it is ideal for sports facilities, theme parks, and multi-purpose venues. The system incorporates a 12″ woofer with a 2.5″ voice coil and a 1″ HF driver with a 1.7″ coil mounted on a 90° × 60° rotatable horn, offering versatile coverage. The cabinet is a single-piece rotational-molded polyethylene shell, reinforced with a multilayer water-stop steel grille and a stainless steel U-bracket for horizontal wall mounting.

With a frequency response from 95 Hz to 20 kHz and peak SPL of 132 dB, Shadow 112HC delivers full-range intelligibility and projection in harsh outdoor environments.

Shadow 112HCT includes a built-in 100V line transformer with selectable 200W and 100W power taps.

  • Configuration: 2-way

  • Low Frequency Woofer: 12″ – 2.5″ VC

  • High Frequency Driver: 1″ – 1.7″ VC

  • Recommended Amplifier: 600W RMS

  • Transformer (optional): 100V – taps: 200 / 100 W

  • Maximum SPL: 132 dB

  • Material: UV-resistant molded polyethylene with 3-layer stainless steel grille

Technical Specifications

36159

2 way

600 W RMS

300 W

1200 W

8 ohm

95Hz - 20KHz -6dB

12 - 2.5 coil inch

1 - 1.7 coil inch

101 dB

128/132 dB

90°x60° HxV

1.6 KHz

70hz - 24dboct

4 wire cable

430x430x400 - 16.92x16.92x15.74 mm/inch

21/46.3 kg/lb
