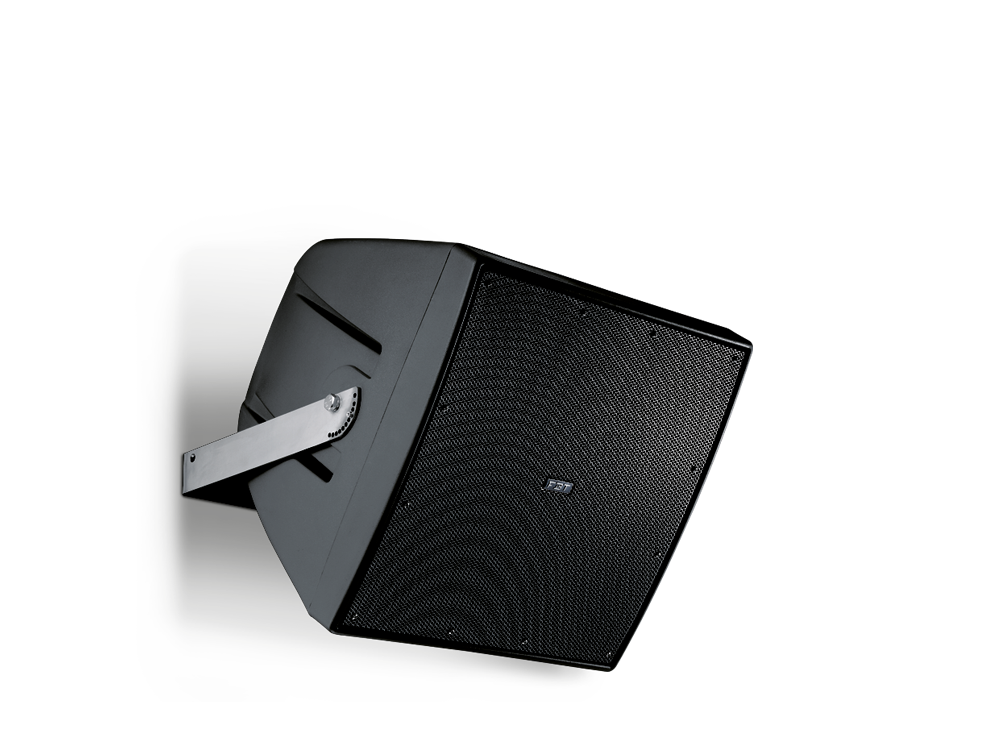

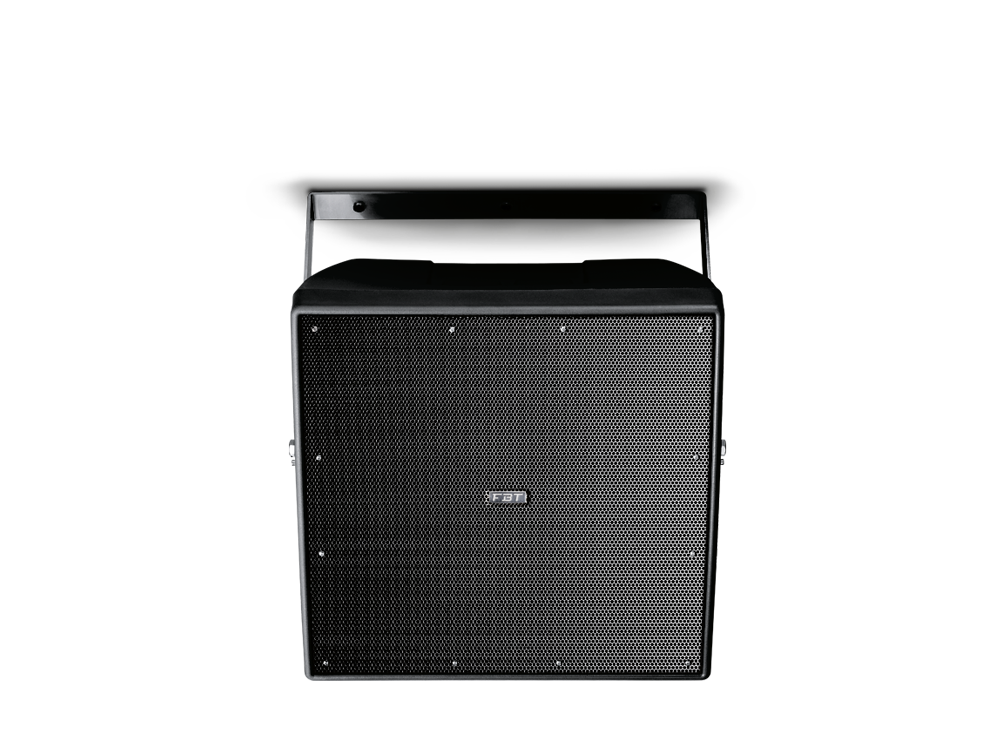

Shadow 108CT-EN is a weather-resistant coaxial 2-way speaker system designed for outdoor and humid environments where high speech intelligibility, wide coverage, and rugged construction are essential. With an IP55 rating and reinforced structure, it is ideal for amusement parks, swimming pools and multi-purpose indoor/outdoor venues.
The enclosure features an 8″ coaxial woofer with 2″ voice coil and a 1″ HF driver with 1.4″ voice coil on a 90° conical horn, offering consistent dispersion. The internal 100V line transformer provides selectable power taps at 100W and 50W. The cabinet is made of 5VB self-extinguishing, UV-resistant PP and includes a 4-wire connection for tap selection, a water-stop grille with multilayer protection, and a stainless steel bracket for secure wall mounting.
With a frequency response from 94 Hz to 20 kHz and peak SPL of 115 dB, the Shadow 108CT-EN delivers clarity and output across a broad range of outdoor applications and stainless steel hardware.
-
Configuration: 2-way
-
Low Frequency Woofer: 8″ / 2″ VC
-
High Frequency Driver: 1″ / 1.4″ VC
-
Transformer: 100V – taps: 120 / 60 W
-
Maximum SPL: 115 dB
-
Recommended Amplifier: 300W RMS
-
Material: 5VB self-extinguishing, UV-resistant polyethylene and stainless steel hardware with 3-layer water-stop stainless steel grille
Technical Specifications
41808
2 way
300W
150W
600W
8 Ohm
94Hz-20KHz -6dB
8'' - 2'' VC
1'' - 1.4'' VC
94 dB
115 / 103 dB
160° x 160° (500Hz)
1.8kHz
70Hz - 24dboct
---
4 wire cable
285 x 285 x 250 mm / 11.2 x 11.2 x 9.8 inch
10.5 Kg / 23.1 lb
