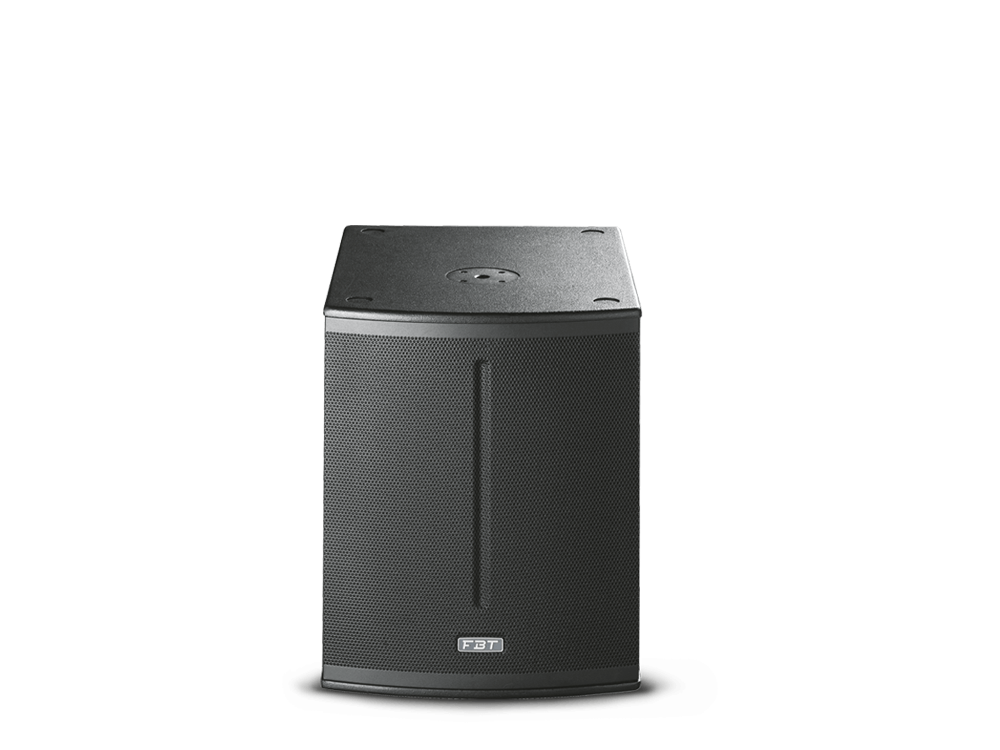

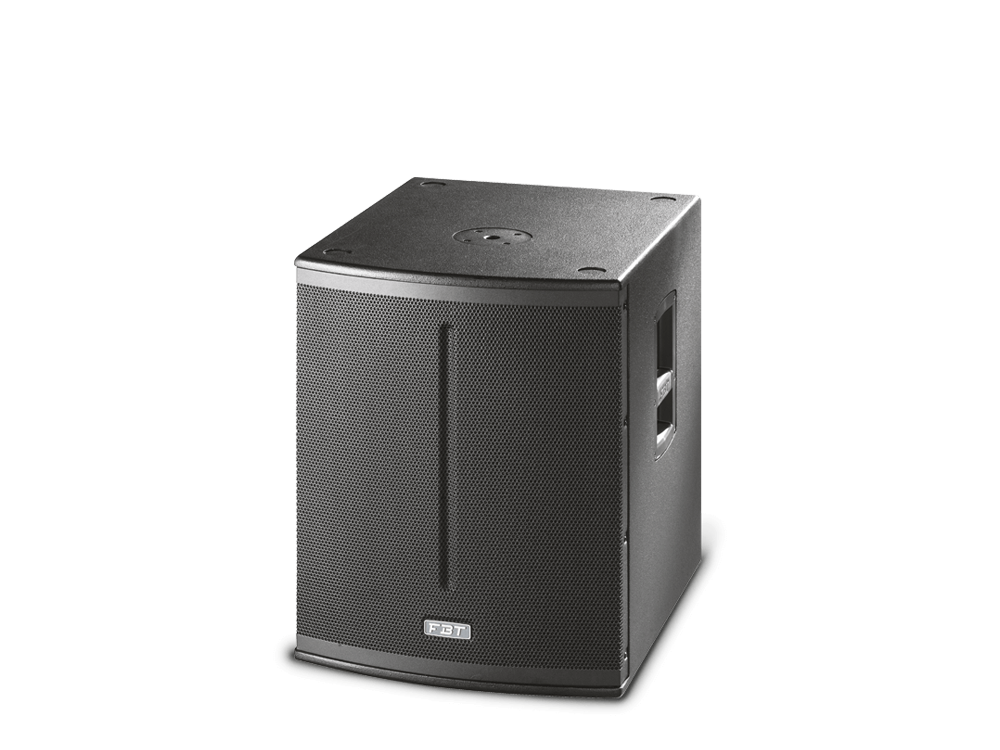

The X SUB 112SA is a 12-inch bass-reflex active subwoofer engineered to deliver tight, musical and effective low-frequency reinforcement for live sound and portable PA setups. With a 1200 W Class D amplifier, a 48 Hz to 120 Hz frequency response and up to 133 dB peak SPL, it provides strong impact, clarity and impressive low-end presence.
Its onboard DSP with 4 presets allows the system to be optimized for different applications, while the rear control panel offers stereo XLR inputs, loop outputs, high-pass filter outputs, level control and phase reverse for maximum setup flexibility.
Built from 15 mm birch plywood with a scratch-resistant black finish, the X SUB 112SA is made for reliable use. The cabinet also features 2 aluminium handles and a top-mounted M20 pole socket for convenient system integration and transport.
Configuration: Bass reflex subwoofer
Low Frequency Woofer: 12″ – 2.5″ VC
Integrated Amplifier: 1200W, Class D
Max. SPL: 133 dB
Material: 15 mm birch plywood with scratch-resistant paint
48009
Bass reflex
1200
48 - 120 Hz
12'' - 2.5'' vc
129 / 133dB half-space
Omnidirectional
22K
600
XLR ST with loop, XLR ST OUT
5mt / 16.4ft
385 x 500 x 485 mm / 15.15 x 19.68 x 19.09 inch
23.5 kg / 51.8 lb
615 x 606 x 510 mm / 24.21 x 23.86 x 20.08 inch
27.5 Kg / 60.62 lb
