VERTUS CLA 403T

PASSIVE COLUMN ARRAY 4x3"

VERTUS CLA 403T

Weatherproof - EN54-24

VERTUS CLA 403T

Click on the image to zoom

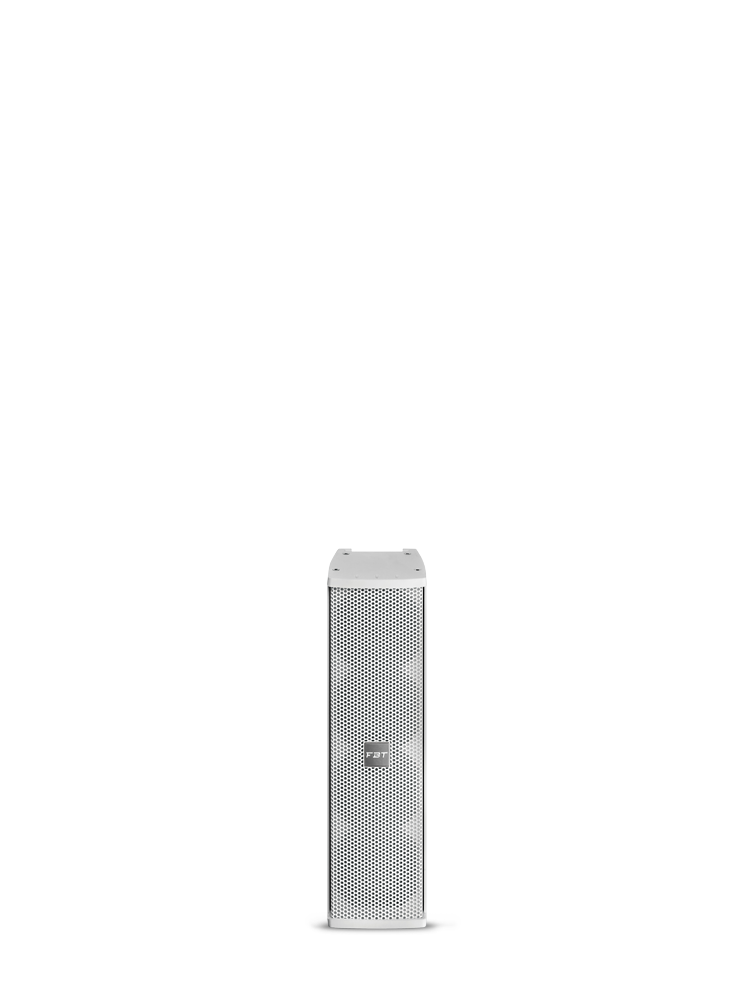

VERTUS CLA 403T is a passive 1-way column speaker designed for high intelligibility in acoustically challenging indoor or outdoor spaces. It integrates four 3″ full-range drivers with 0.75″ voice coils, delivering controlled dispersion and clear reproduction for speech and background music. The aluminum enclosure is IP55-rated and EN 54-24 certified, making it suitable for voice evacuation systems and public address.

Equipped with an internal 70V/100V transformer with power taps at 50/25W, the CLA 403T also features a 16 Ohm low-impedance input. A passive directivity control system allows users to choose between NARROW and WIDE vertical coverage options, depending on mounting height and application. The speaker connects via ceramic terminal block with through wiring. The enclosure integrates four rear mounting points compatible with the full range of CLA accessories (including wall, joint, and truss brackets), enabling fast and precise installation in modular arrays.

  • Configuration: 1-way

  • Full-Range Driver: 4 × 3″ – 0.75″ VC

  • Transformer: 70V/100V – taps: 50 / 25 W

  • Recommended Amplifier: 100W RMS

  • Maximum SPL: 106 dB

  • Material: Extruded aluminum with perforated powder-coated steel grille

Technical Specifications

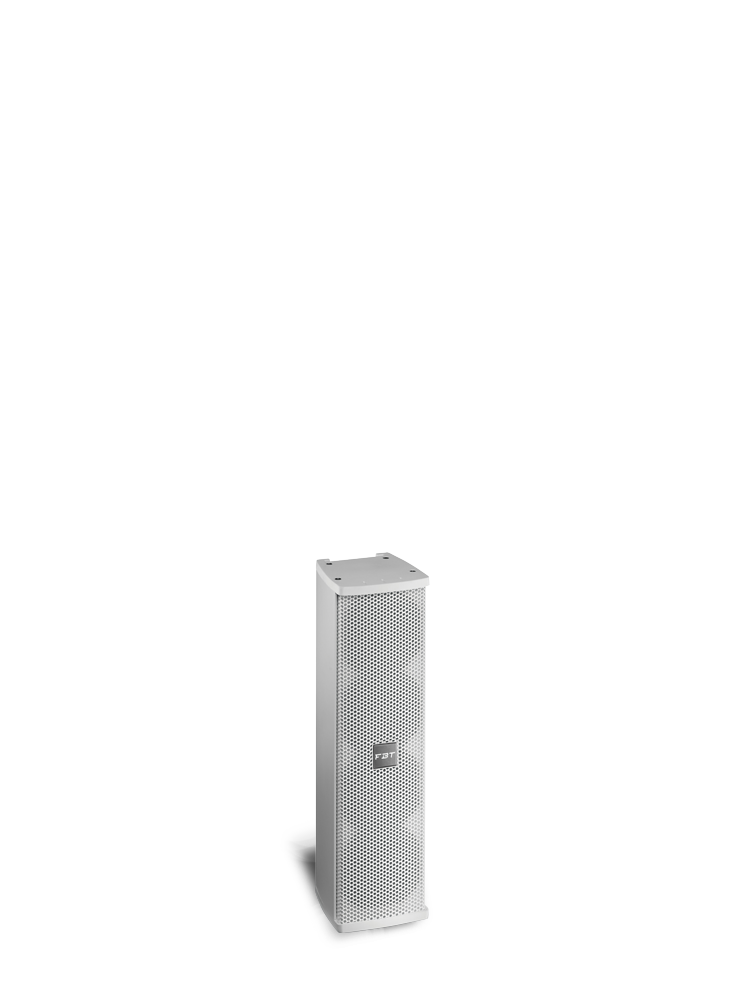

41807 (Black) / 41824 (White)

1 way

100 W RMS

50W

200W

16 Ohm

150hz-20kHz @-6dB

---

4x3'' - 0.75'' VC Fullrange Driver

106/112 dB

125°x28° narrow - 125°x36° wide HxV (2kHz)

Ceramic terminal block

100 x 368 x 125 mm / 3.9 x 14.5 x 4.9 inch

3 Kg / 6.6 lb

190 x 435 x 170 mm / 7.4 x 17.1 x 6.7 inch

3,5 Kg / 7.7 lB

Accessories

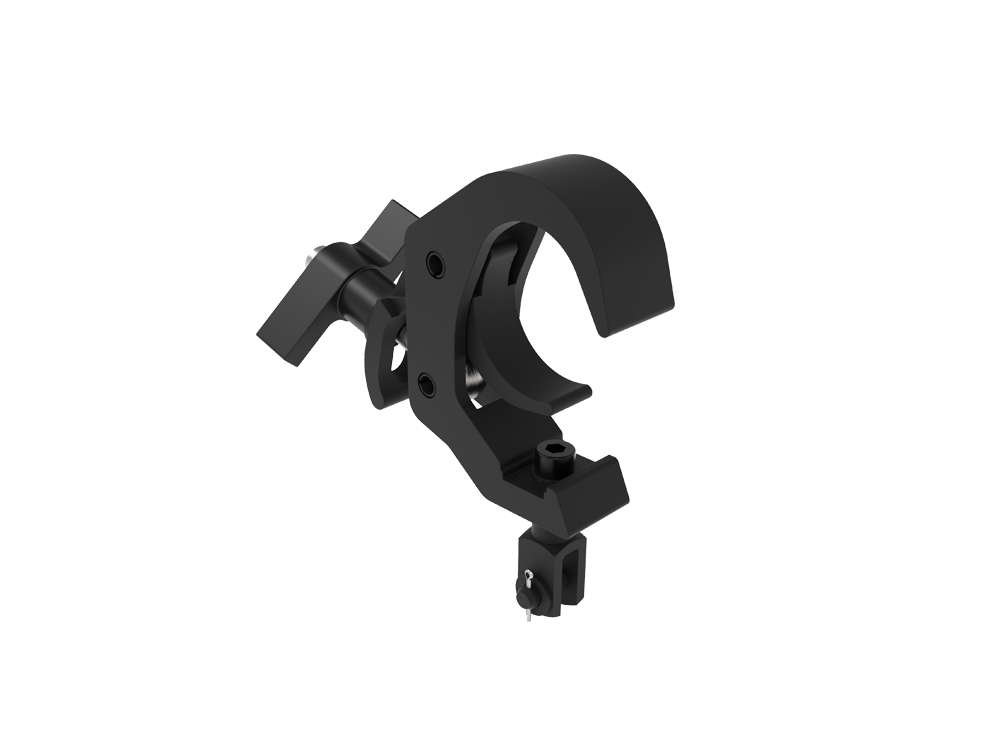

VT-T 3

VT-T 3

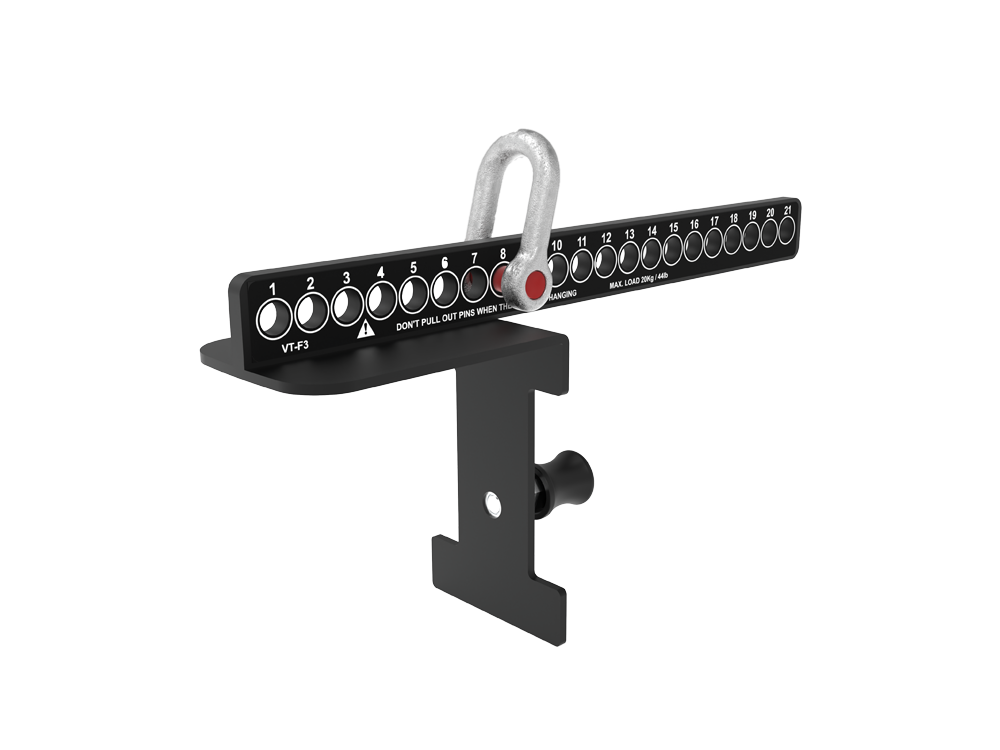

VT-F 3

VT-F 3

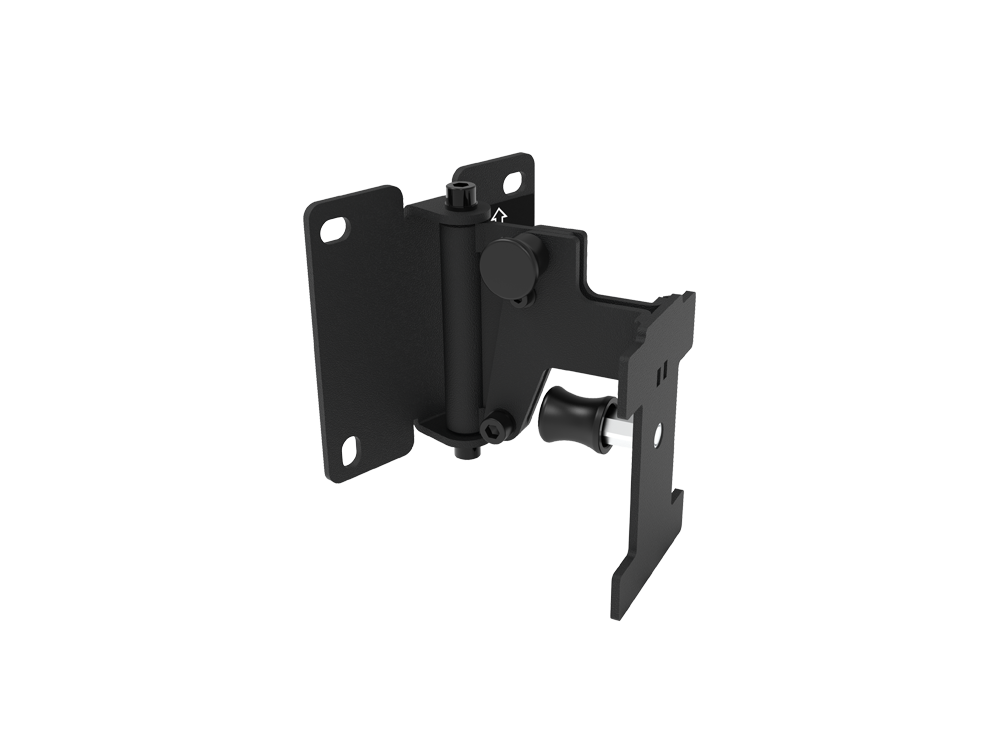

VT-W 3

VT-W 3

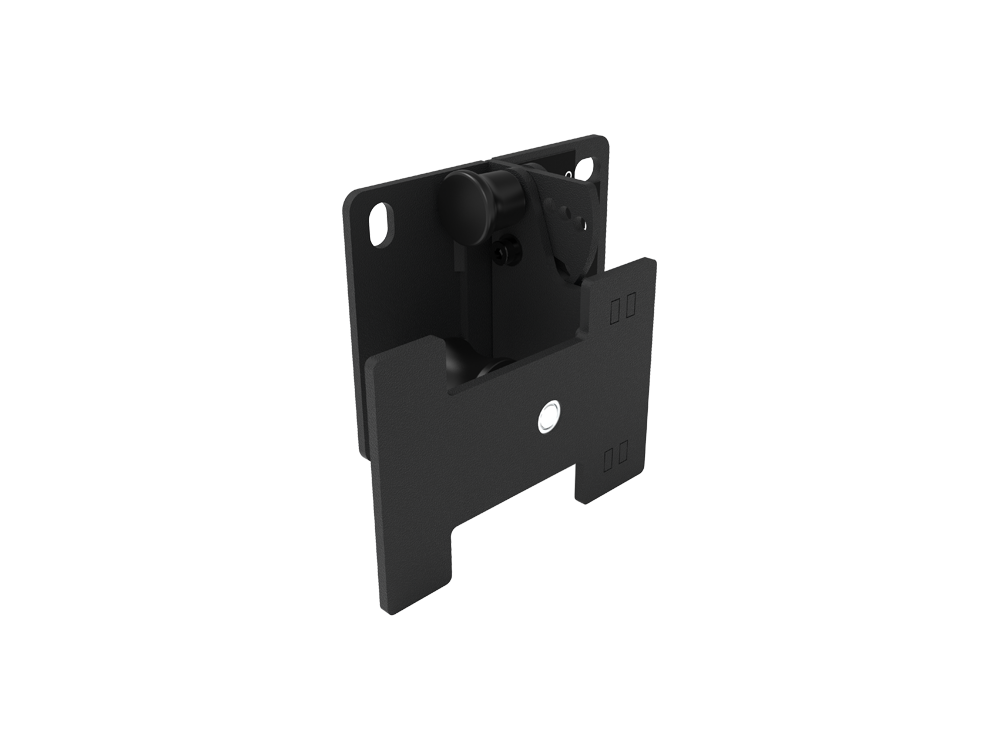

VT-WH 3

VT-WH 3

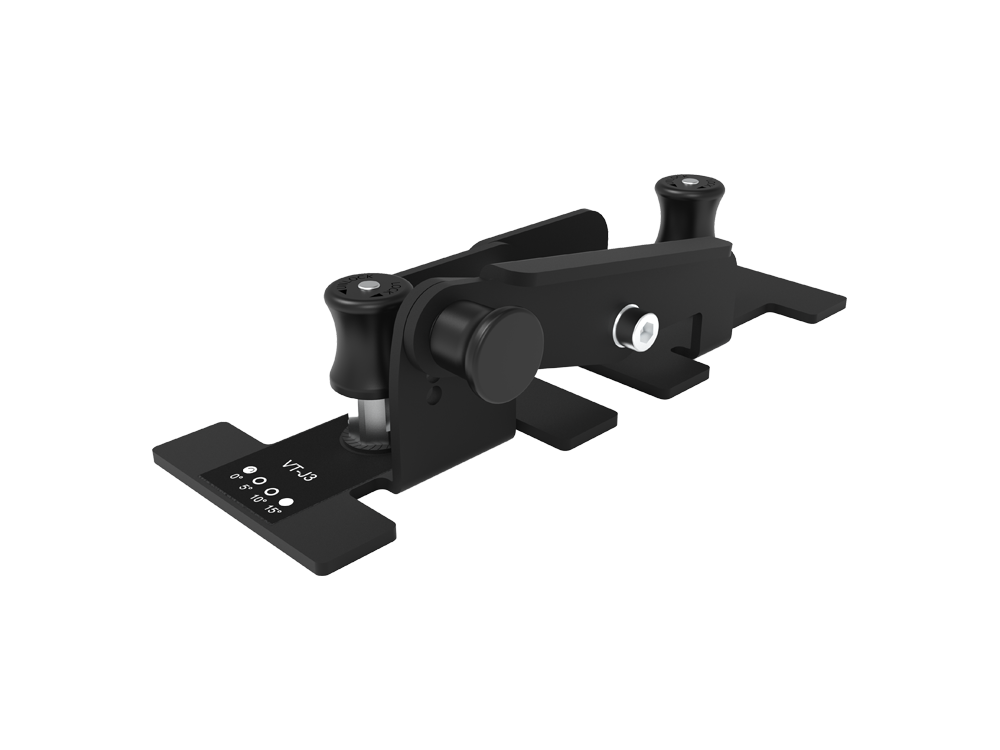

VT-J 3

VT-J 3

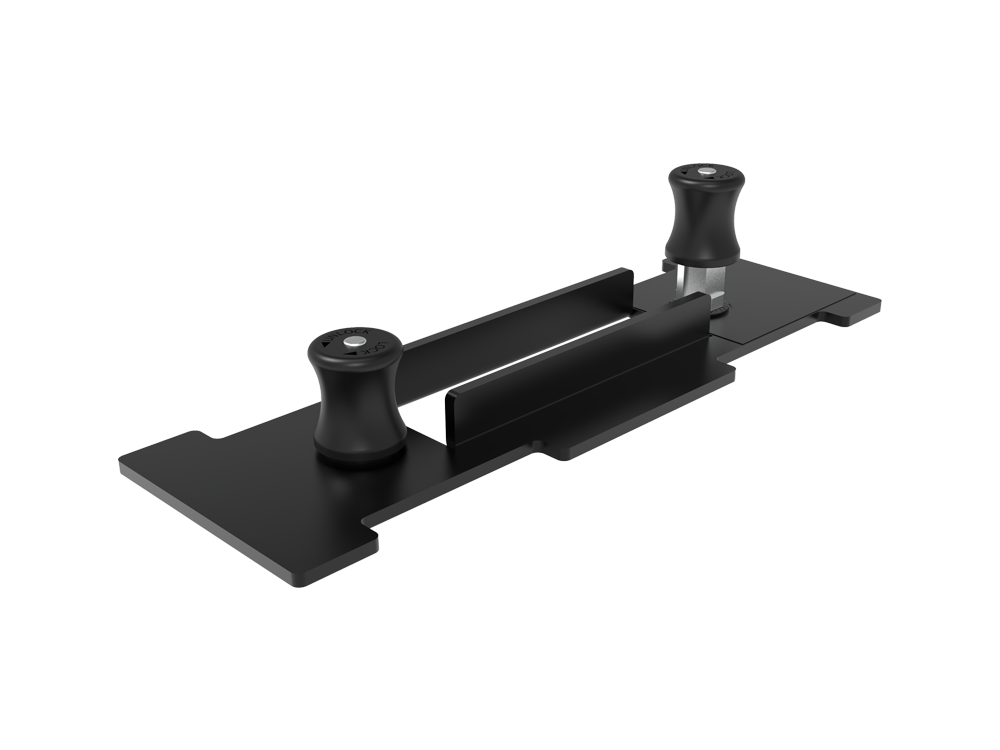

VT-JF 3

VT-JF 3
