MXA Series

MXA 1120

ANALOG AMPLIFIER

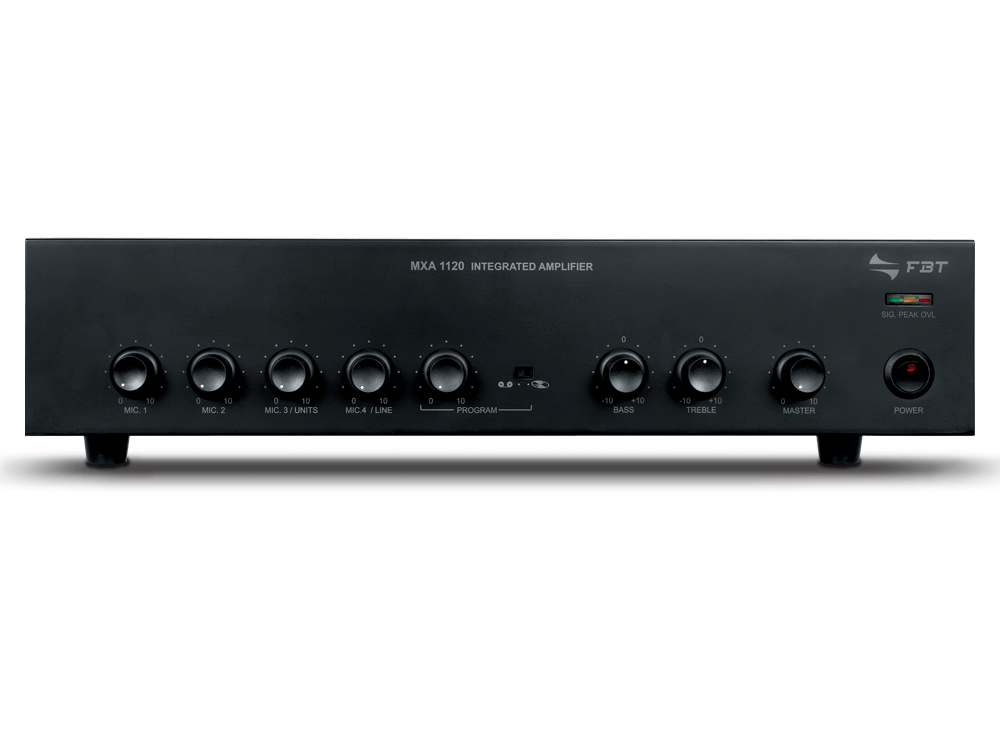

MXA 1120

Click on the image to zoom

These integrated mixer-amplifiers provide the perfect balance of flexibility, functionality and affordability, combining basic mixer functionalities with a robust single-channel power amplification board. Engineered for versatility and cost-effectiveness, the MXA series is composed of two models with a total power of 60W or 120W in either Hi-Z or Low-Z output configuration. With multiple mic/line inputs, programme selection, basic tones and level management, these amplifiers are designed to adapt to a variety of audio needs, from basic background music distribution to paging or emergency purposes. The clean front panel displaying essential controls only makes these amplifiers very intuitive to manage; each input channel has a dedicated volume control while the main control handles master volume, bass and treble and power switch.

  • Wide range of mic and line inputs
  • Available phantom power on mic inputs
  • Inputs priority and settings by micro-switches
  • 100/70/50V line or 8Ω speaker outputs
  • Easy connection to MBT 1101 paging stations
  • 2U 19″

Technical Specifications

37639

270 W (320 VA)

230/115 Vca 50/60 Hz / 24 Vcc

430x88x234
