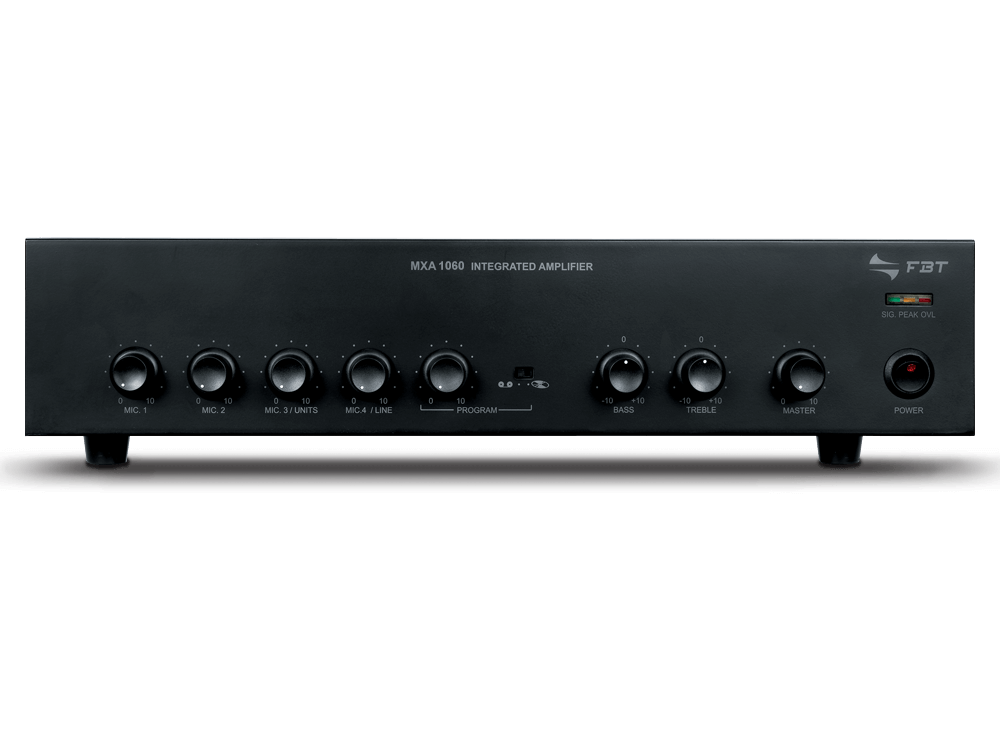

These integrated mixer-amplifiers provide the perfect balance of flexibility, functionality and affordability, combining basic mixer functionalities with a robust single-channel power amplification board. Engineered for versatility and cost-effectiveness, the MXA series is composed of two models with a total power of 60W or 120W in either Hi-Z or Low-Z output configuration. With multiple mic/line inputs, programme selection, basic tones and level management, these amplifiers are designed to adapt to a variety of audio needs, from basic background music distribution to paging or emergency purposes. The clean front panel displaying essential controls only makes these amplifiers very intuitive to manage; each input channel has a dedicated volume control while the main control handles master volume, bass and treble and power switch.
-
2 microphone inputs with Phantom power (XLR). MIC 1 with automatic priority function (VOX) and adjustable activation threshold
-
Microphone input (XLR) with Phantom power or MBT 1101 paging stations (RJ45)
-
MIC/PH/LINE input with corresponding selector
-
2 auxiliary inputs for audio sources (TAPE/CD)
-
Telephone/Emergency audio input for priority calls with adjustable threshold and sensitivity
-
Front panel level control for each microphone and auxiliary input
-
Front panel control of master volume and bass/treble tone settings
-
Speaker output lines at constant voltage 50/70/100 V or 8Ω impedance
-
Auxiliary line output
-
LED VU meter for immediate output power monitoring
-
Micro-switches for setting input priorities and functions
-
Switchable speech filter on all microphone inputs
-
Contacts to activate input priority
-
Pre-announcement chime (ding-dong) with adjustable level
-
Selectable mains power supply 230/115 Vac and 24 Vdc backup power
Technical Specifications
37638
130 W (150 VA)
230/115 Vca 50/60 Hz / 24 Vcc
430x88x234
