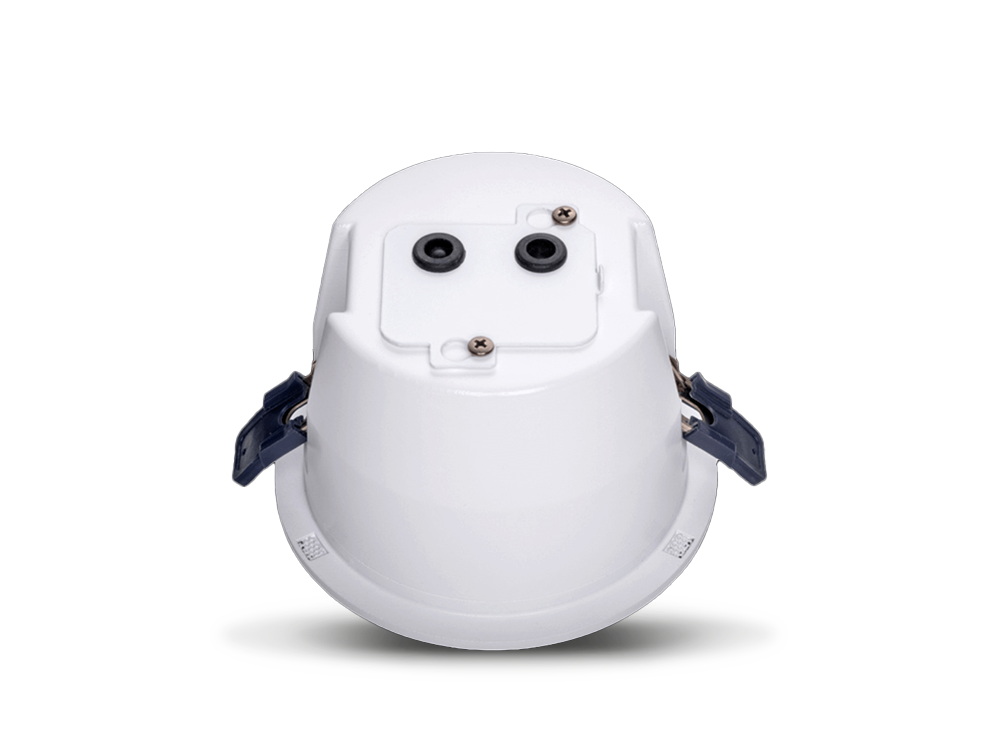

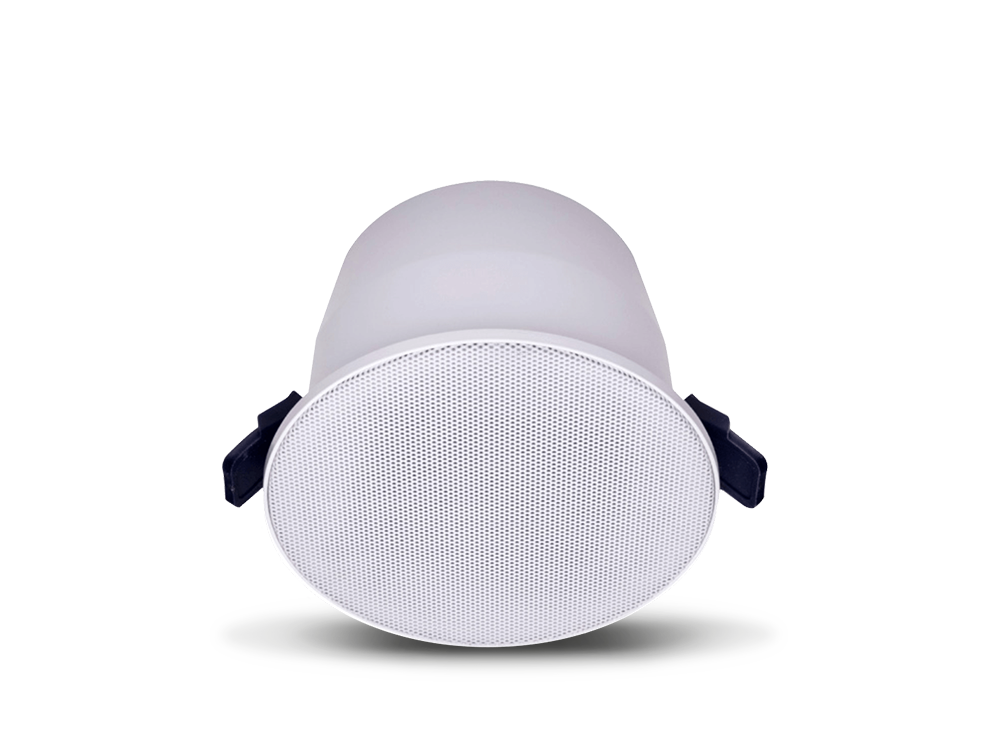

CSP 306 TWP/EN
IN-CEILING SPEAKER 3"
Weatherproof - EN54-24
Click on the image to zoom
In-ceiling speaker system. Enclosure made of V0 self-extinguishing ABS (UL94V0) and metal grill. Integrated springclamp mounting type. System equipped with 3” full-range loudspeaker, WAGO 221 terminal block. IP54 enclosure protection (Type A). Color white RAL 9016.
-
Configuration: 2 way
-
Transducer Driver: 3″
-
Maximum SPL: 89dB
-
Material: ABS/Metal
Technical Specifications
45892
1 way
In-Ceiling
220 - 14.000
80.5 / 68.5
ABS (UL94-V0) / Metal
6 / 3 / 1.5
Ø140 x 98 mm / Ø5.51 x 3.85 inch
0.68 Kg / 1.49 Lb
3''
89 / 77
