CANTO

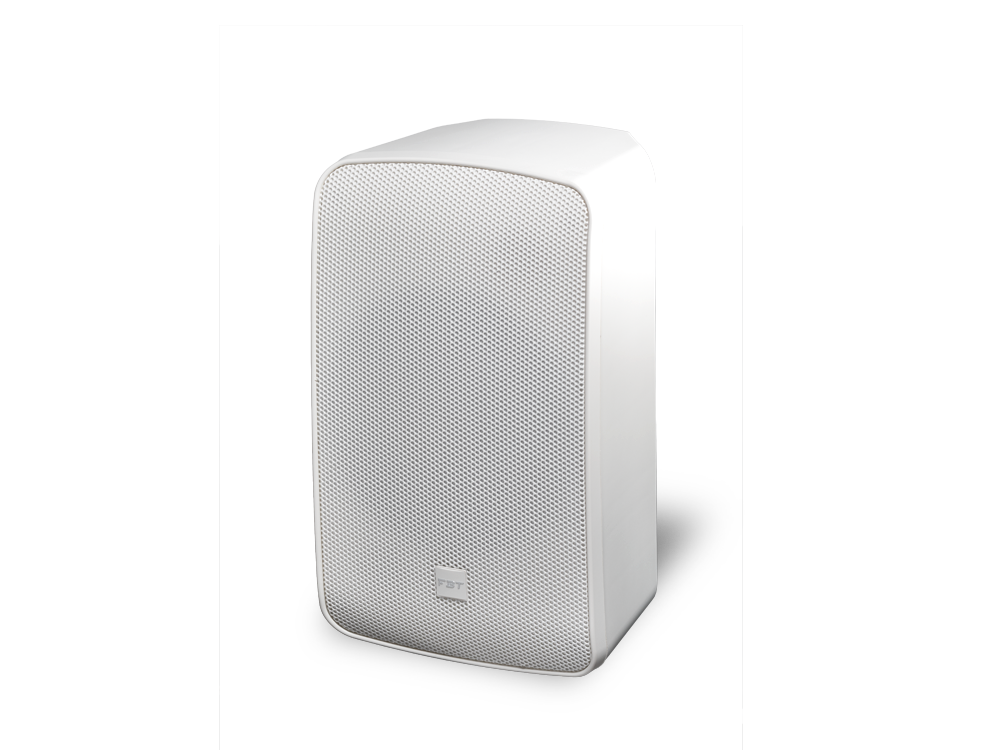

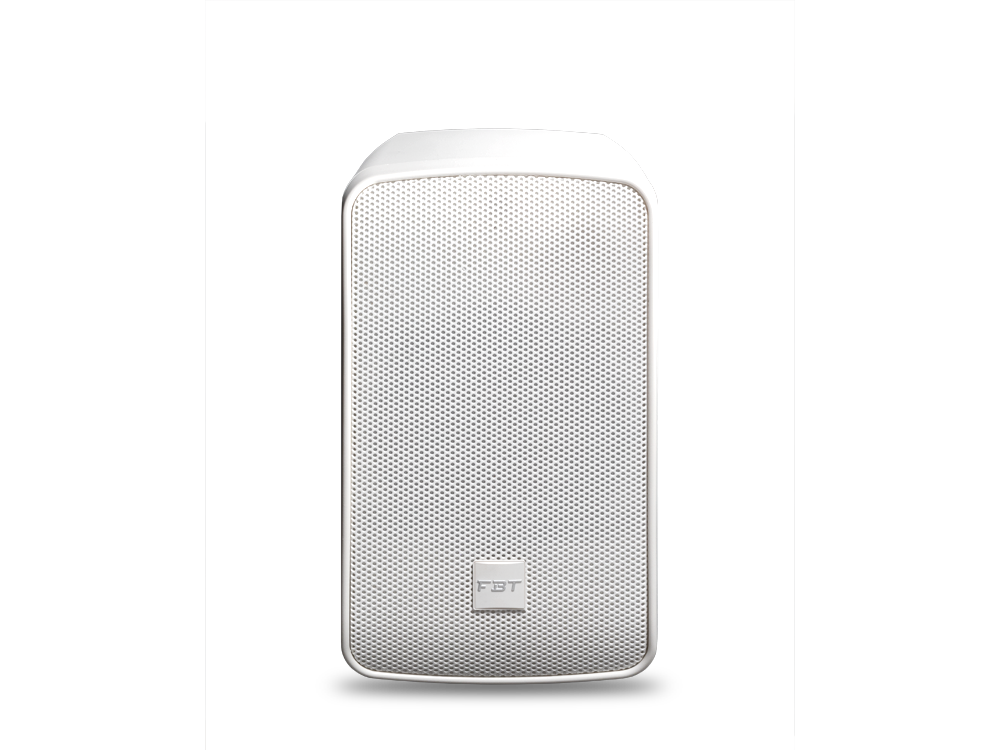

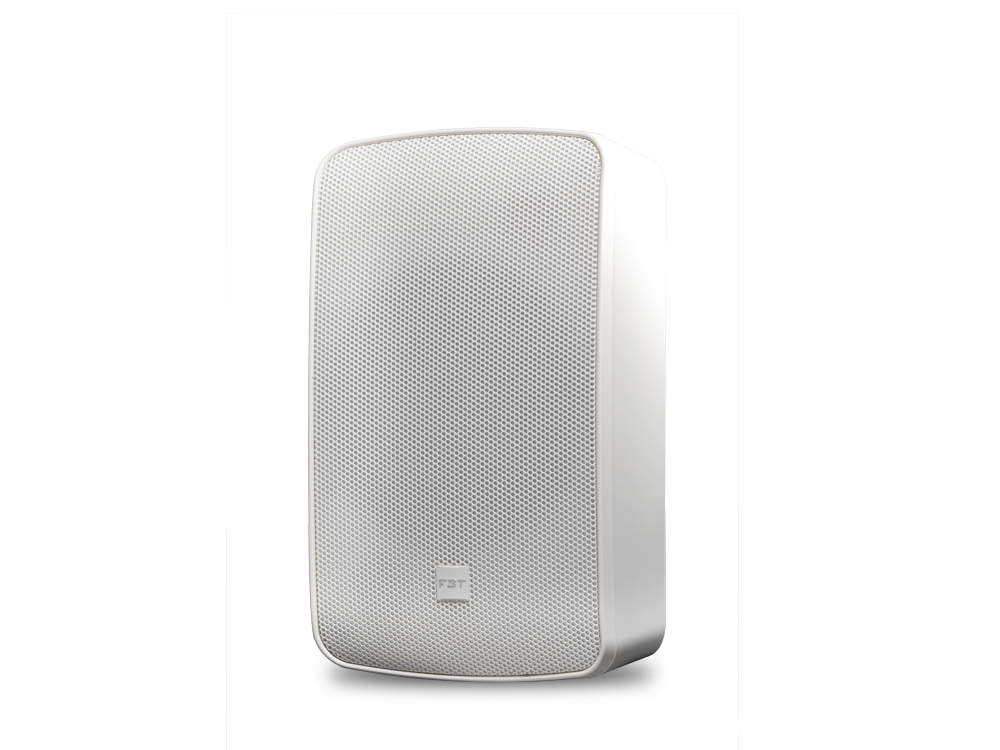

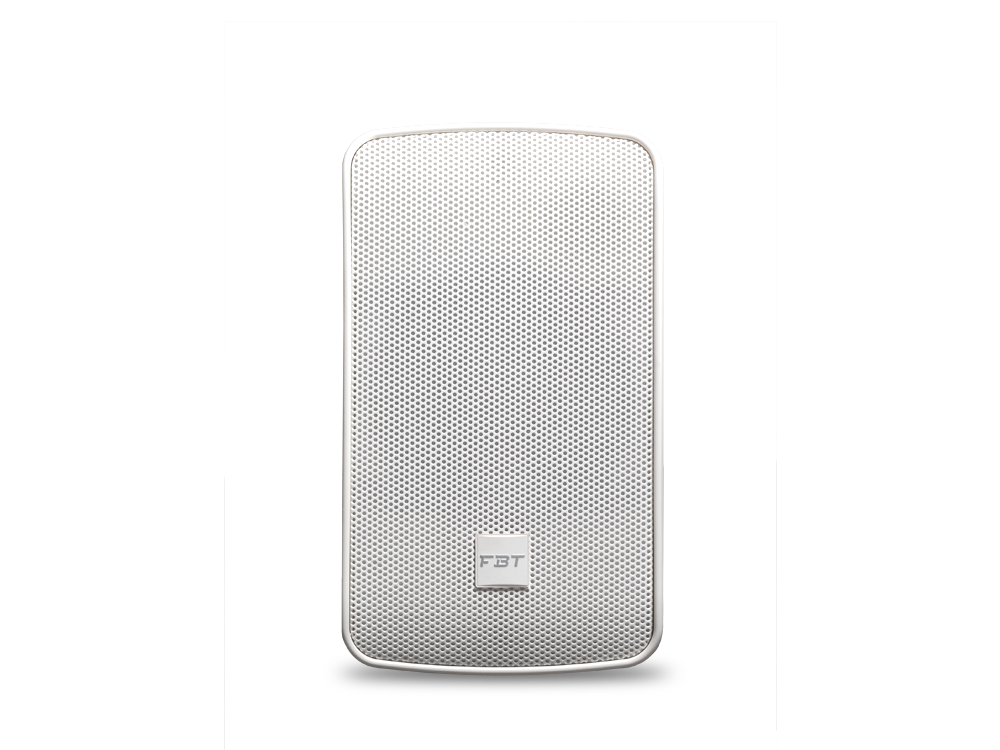

Canto 8C

PASSIVE POINT SOURCE 8"

Click on the image to zoom

Download Accessories

CANTO 8C is a two-way coaxial loudspeaker system housed in a lightweight, gas-injected polypropylene enclosure. Available in black or white finish, it combines durability with elegant aesthetics, making it ideal for a wide range of fixed installation applications.The CANTO 8C features an 8” coaxial low-frequency woofer and a 1” high-frequency driver. The system delivers consistent 80° conical dispersion, providing even sound coverage throughout the listening area.

Despite its compact form, the CANTO 8C offers impressive low-distortion performance and it delivers high-fidelity sound suited for both speech and music reproduction.Two rear-mounted fixing points allow for the use of the WM-68 wall bracket, enabling both horizontal and vertical adjustment for flexible installation with minimal visual impact.

Configuration: 2 way coaxial
Low Frequency Woofer: 1 x 8” – 2” VC
High Frequency Driver: 1 x 1” – 1.4” VC
Recommended Amplifier: 250W RMS
Maximum SPL: 125dB
Material: Gas injected polypropylene

Technical Specifications

Code:

45476 (Black) / 45475 (White)

Configuration:

2 way coaxial

Recommended amplifier:

250W RMS

Long Term power:

125W

Short term power:

500W

Nominal impedance:

8 OHm

Frequency response:

60Hz - 20kHz -6dB

Low Frequency woofer:

8’’ - 2’’ coil

High frequency driver:

1’’ - 1.4’’ coil

Sensitivity (@1W/1m):

96dB

Maximum SPL cont/peak:

120 / 125dB

Dispersion:

80° conical

Crossover Frequency:

2 kHz

Recommended HP filter:

50Hz - 24dB oct

Recommended external filter:

FBT DSP Processor

Input connector:

4-pin Euroblock

Net Dimension (WxHxD):

240 x 416 x 240 mm / 9.4 x 16.3 x 9.4 inch

Net Weight:

6.1 Kg / 13.4 lb

Download

Datasheet

0.65 MB

User Manual

10.96 MB

0.93 MB

Accessories

CN-U 5

WM-68
