x pro 115A

ACTIVE POINT SOURCE 15"

x pro 115A

Click on the image to zoom

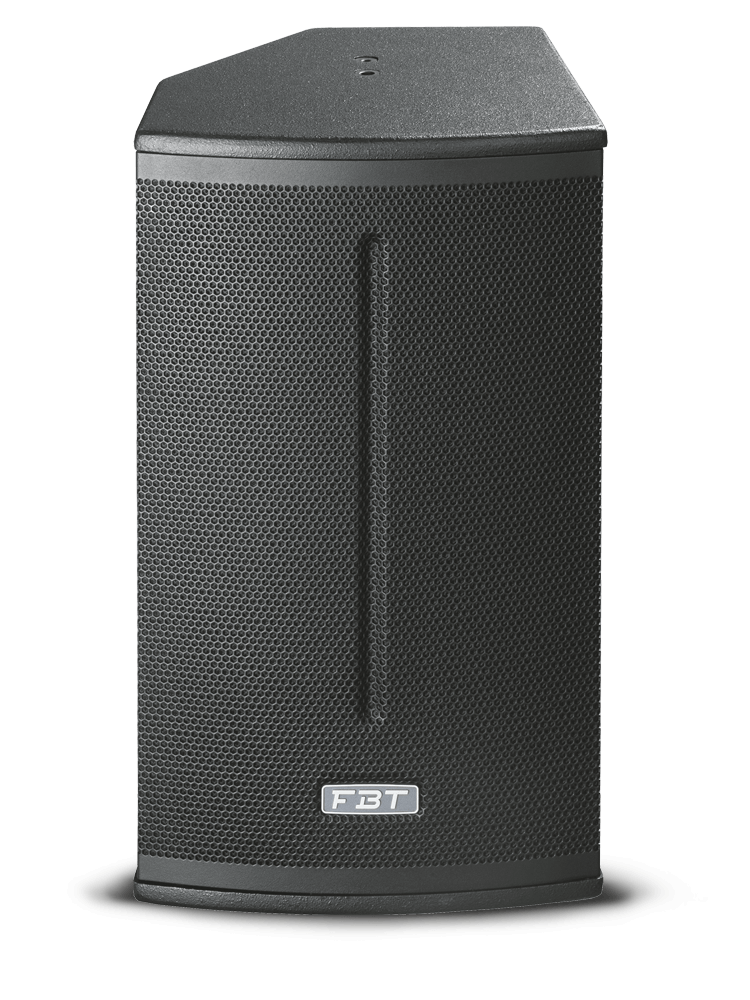

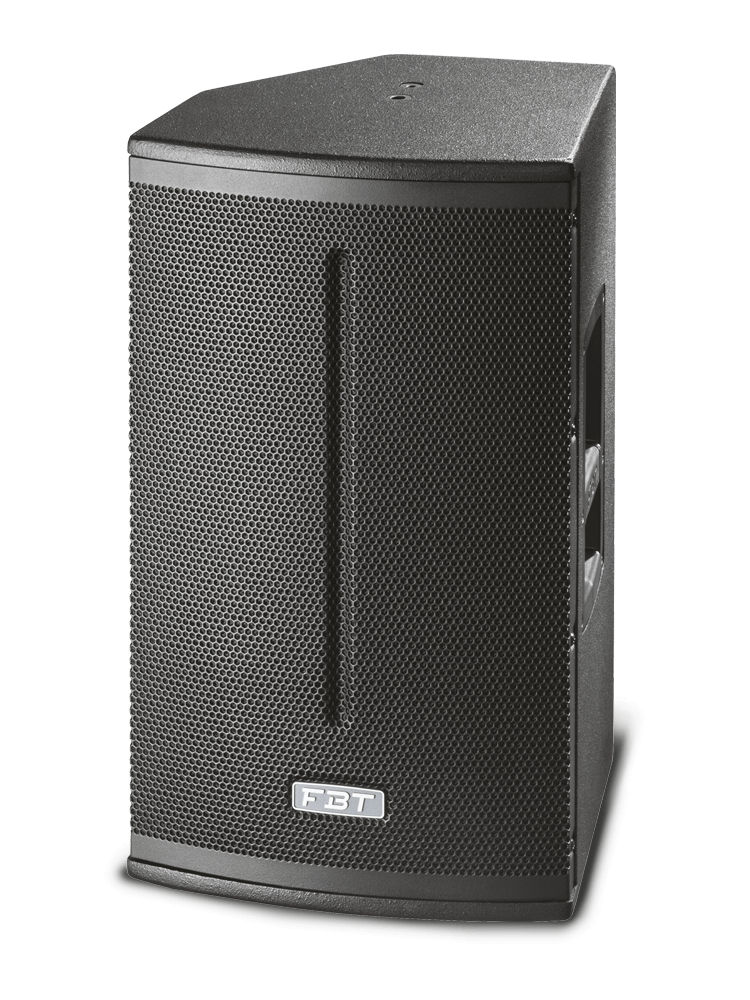

X PRO 115A is a bi-amplified 2-way active loudspeaker equipped with a 15″ woofer and a 1″ compression driver, delivering high output and clarity across a wide frequency spectrum. The horn provides 80° x 50° rotatable coverage, ensuring optimal dispersion in FOH or monitor use. Built from durable birch plywood with a scratch-resistant finish, the enclosure supports both vertical mounting and 35°/45° monitor angles.

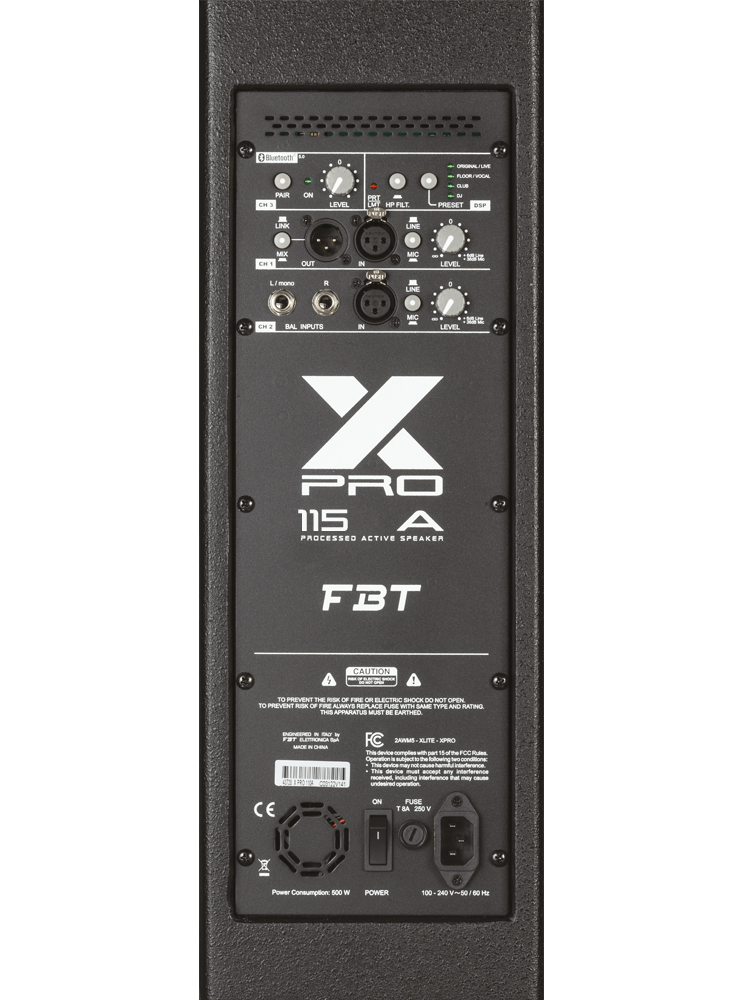

The Class D amplifier module delivers 1200W LF + 300W HF, reaching a peak SPL of 130 dB and a frequency response from 42 Hz to 20 kHz. The rear control panel features a three-channel input section: one XLR mic/line input, one selectable stereo input (jack/XLR), and one Bluetooth 5.0 input with pairing LED. It also includes mic/line switches, DSP preset selector, HP filter, and XLR output with CH1 or mix link selection.

The cabinet includes 4 M10 rigging points, a 35 mm pole socket, and optional wall-mount accessories, making it suitable for portable setups, permanent installations, and stage monitoring.

  • Configuration: 2-way

  • Low Frequency Woofer: 15″ – 2.5″ VC

  • High Frequency Driver: 1″ compression driver – 1.4″ VC

  • Integrated Amplifier: 1200W LF + 300W HF, Class D

  • Maximum SPL: 130 dB

  • Material: Birch plywood with steel grille

Technical Specifications

43722

2 way

1200 / 300W RMS

42Hz - 20KHz - 6dB

15''- 2.5'' coil

1'' - 1.4'' coil

125 / 130dB

80°x50° rotatable horn

22 kOhm

XLR IN/OUT Jack ST

5m / 16.4 ft

436 x 735 x 440 mm / 17.1 x 28,.9 x 17.3 inch

21.8 Kg / 48 lb

535 x 795 x 535 mm / 21.06 x 31.2 x 21.06 inch

26.9 Kg / 59.3 lb
