X-PRO

x pro 112 MA

ACTIVE STAGE MONITOR 12"

x pro 112 MA

Click on the image to zoom

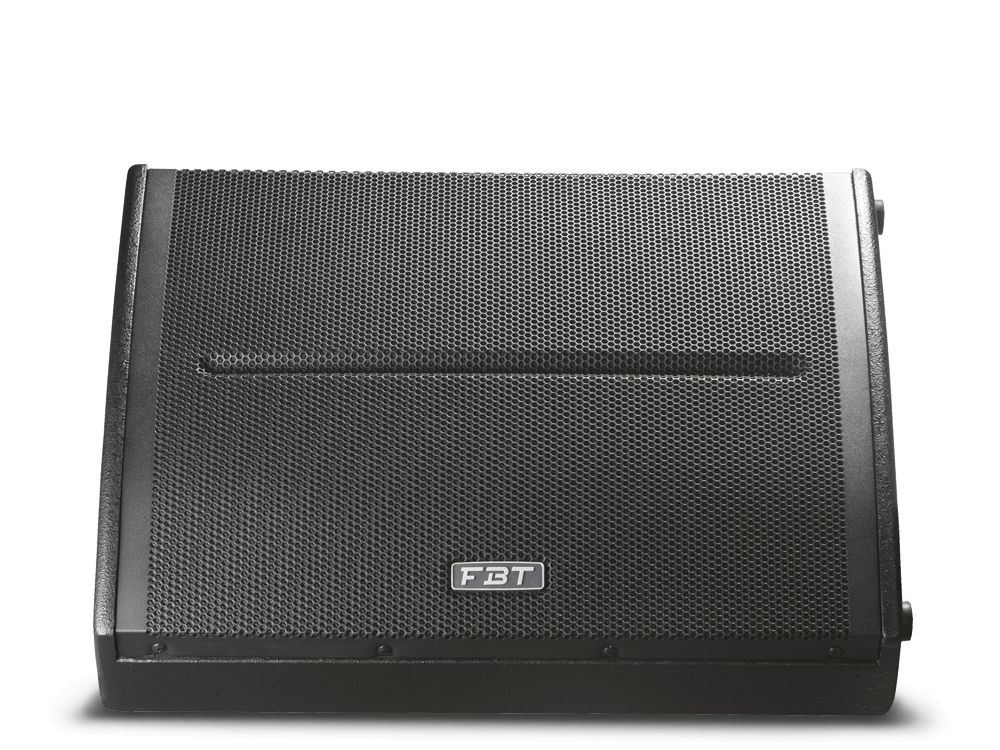

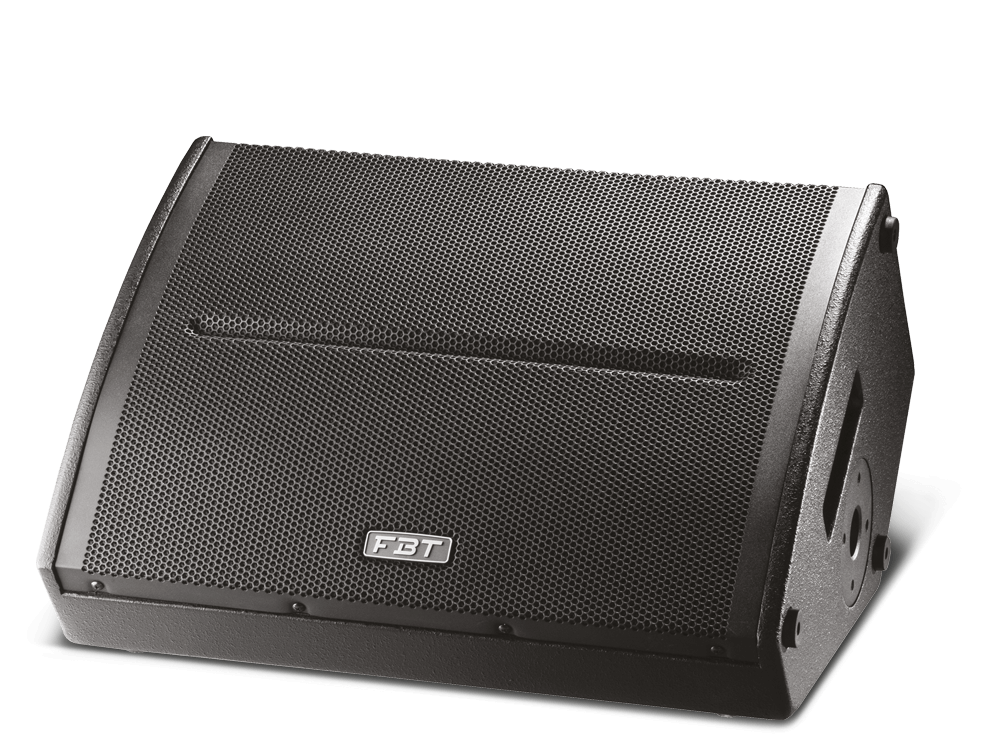

X PRO 112MA is a professional active stage monitor from the X PRO series, featuring a redesigned electronic section that enhances power output and adds new functionality. The speaker integrates a 12″ woofer with a 2.5″ voice coil and a 1″ compression driver with 1.4″ voice coil, mounted on an 80° x 50° horn. The Class D bi-amplification delivers 1200W LF + 300W HF, reaching a max SPL of 129 dB and a frequency response of 54 Hz – 20 kHz.

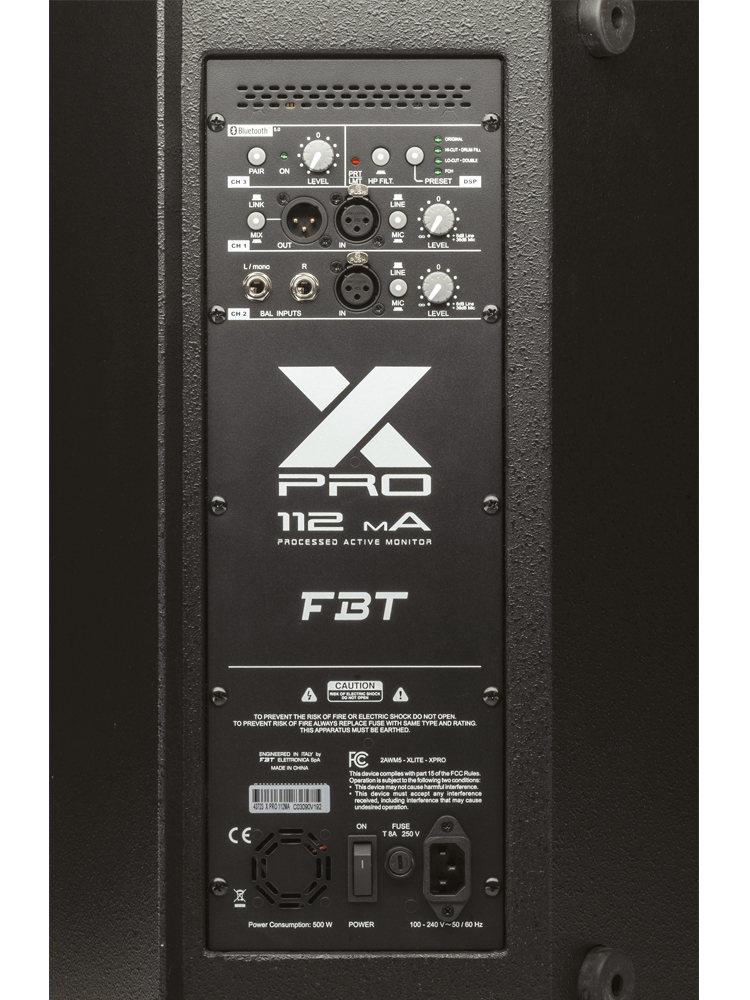

The control panel offers three input channels: one XLR mic/line, one selectable stereo line input (jack/XLR), and one Bluetooth 5.0 channel with pairing LED. It includes 4 DSP presets, high-pass filter, dual mic/line selectors, and an XLR output with CH1/mix link. A new power unit with auto-switching PSU and intelligent cooling system keeps operating temperatures low and ensures silent performance.

Built in plywood with a scratch-resistant finish, the enclosure includes two integrated handles and a 35 mm pole socket for free-field use. Ideal for FOH monitoring, small stage side-fills, DJ booths, and installations.

  • Configuration: 2-way

  • Low Frequency Woofer: 12″ – 2.5″ VC

  • High Frequency Driver: 1″ – 1.4″ VC

  • Integrated Amplifier: 1200W LF + 300W HF, Class D

  • Maximum SPL: 129 dB

  • Material: Birch plywood with steel grille

Technical Specifications

43723

2 way

1200 / 300W RMS

---

54Hz - 20KHz

12''- 2.5'' coil

1'' - 1.4'' coil

124 / 129dB

80°

22 kOhm

500W

XLR IN/OUT JACK ST

5m / 16.4 ft

558 x 330 x 467 mm / 21.9 x 12.9 x 18.3 inch

16.2 Kg / 35.7 lb

540 x 675 x 425 mm / 21.2 x 26.5 x 16.7

19.7 Kg / 43.4 lb

Accessories

FMS 220BKS

FMS 220BKS

XP-C 112M

XP-C 112M

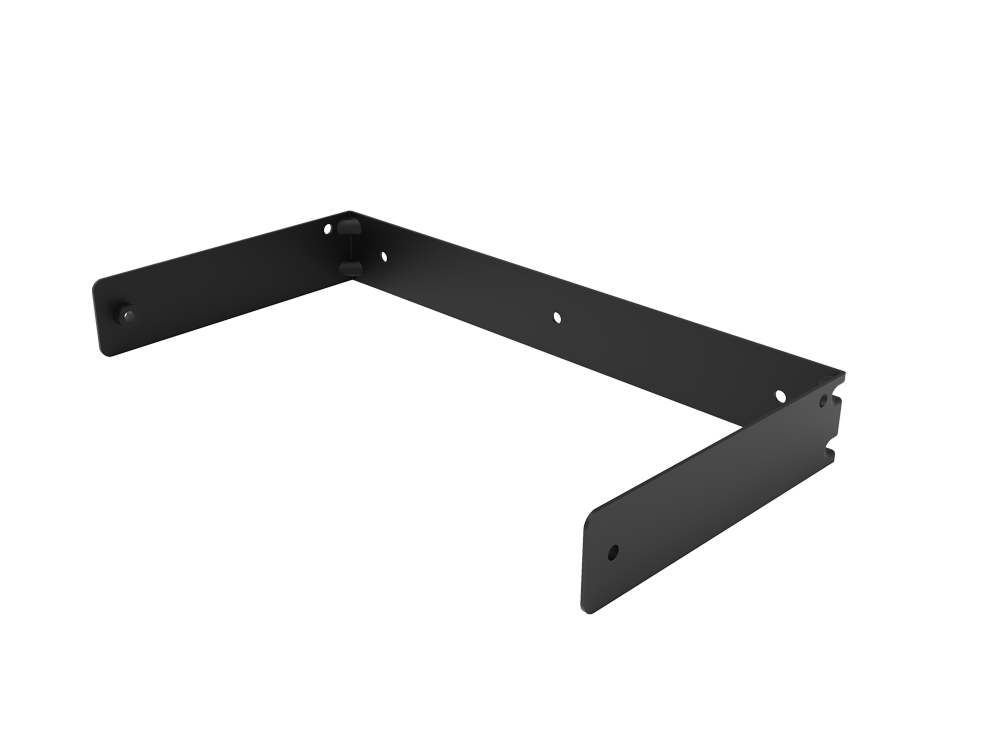

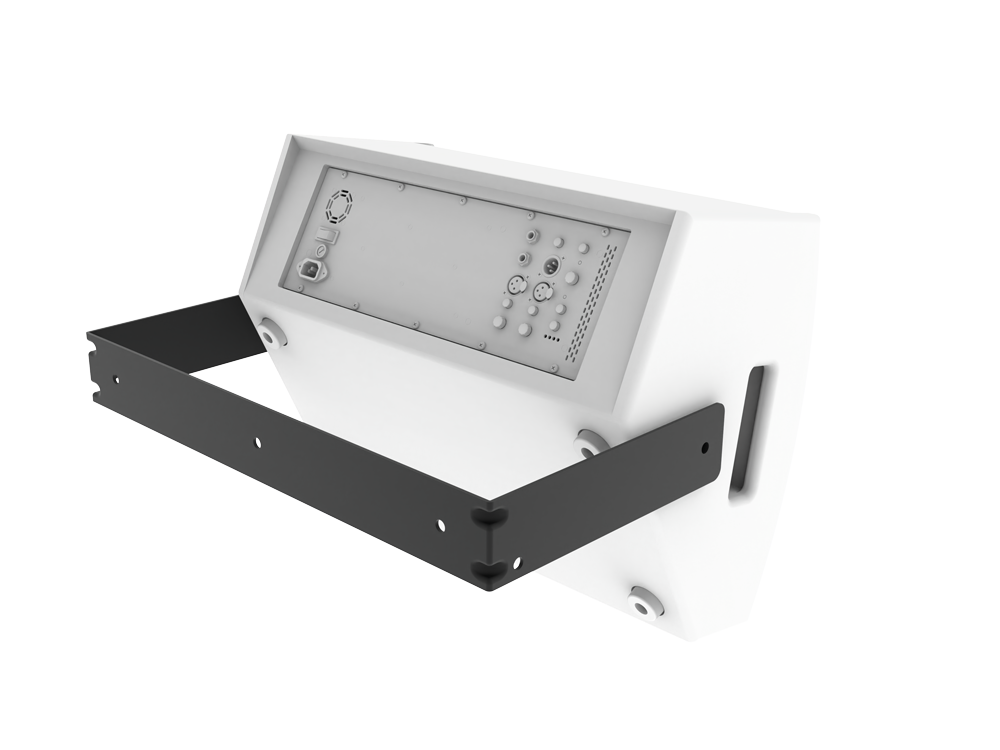

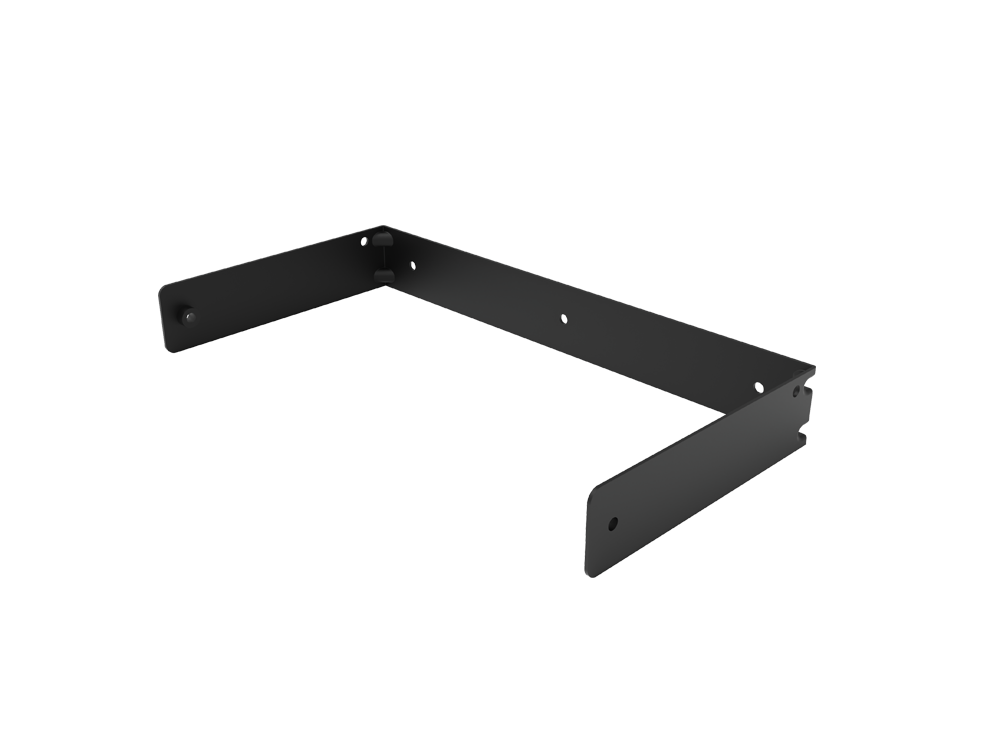

XP-UH 112M

XP-UH 112M

MSA 220BKS

MSA 220BKS

MSA 300BK

MSA 300BK
