Background x-lite 115A
X-LITE

x-lite 115A

ACTIVE POINT SOURCE 15"

x-lite 115A

Click on the image to zoom

The X LITE 115A is a 2-way bi-amplified active speaker featuring a gas-injected polypropylene cabinet and high-performance Class D amplification. Equipped with a 15″ woofer (2.5″ VC) and a 1″ compression driver (1.4″ VC), it delivers full-range audio with a frequency response of 42 Hz – 20 kHz and a maximum SPL of 130 dB. The 1200W + 300W amplifier ensures powerful, distortion-free output for both speech and music applications.

The control panel features three input channels: one XLR mic/line input, one selectable stereo line input (jack/XLR), and one Bluetooth 5.0 channel with pairing LED. Also included are a 4-preset DSP, CH1/mix output selector, high-pass filter, and mic/line switches. The asymmetrical design allows for use as a stage monitor. Installation options include four M10 rigging points and a 35mm pole socket.

  • Configuration: 2-way

  • Low Frequency Woofer: 15″ / 2.5″ VC

  • High Frequency Driver: 1″ compression driver / 1.4″ VC

  • Integrated Amplifier: 1200W LF + 300W HF, Class D

  • Maximum SPL: 130 dB

  • Material: Gas-injected polypropylene with steel grille

Technical Specifications

43544

2 way

1200 / 300W RMS

42Hz - 20KHz -6dB

15''- 2.5'' coil

1'' - 1.4'' coil

125 / 130dB

90° x 60° H x V

22 kOhm

XLR IN/OUT, JACK ST

5 m / 16.4 ft

433 x 706.5 x 400 mm / 17 x 27.8 x 15.7 inch

19,5 Kg / 43 lb

510 x 780 x 475 mm / 20 x 29.5 x 18.7 inch

21.8 Kg / 48 lb

Accessories

FMS 220BKS

FMS 220BKS

XL-C 15

XL-C 15

MSA 220BKS

MSA 220BKS

MSA 300BK

MSA 300BK

XL-UV15

XL-UV15

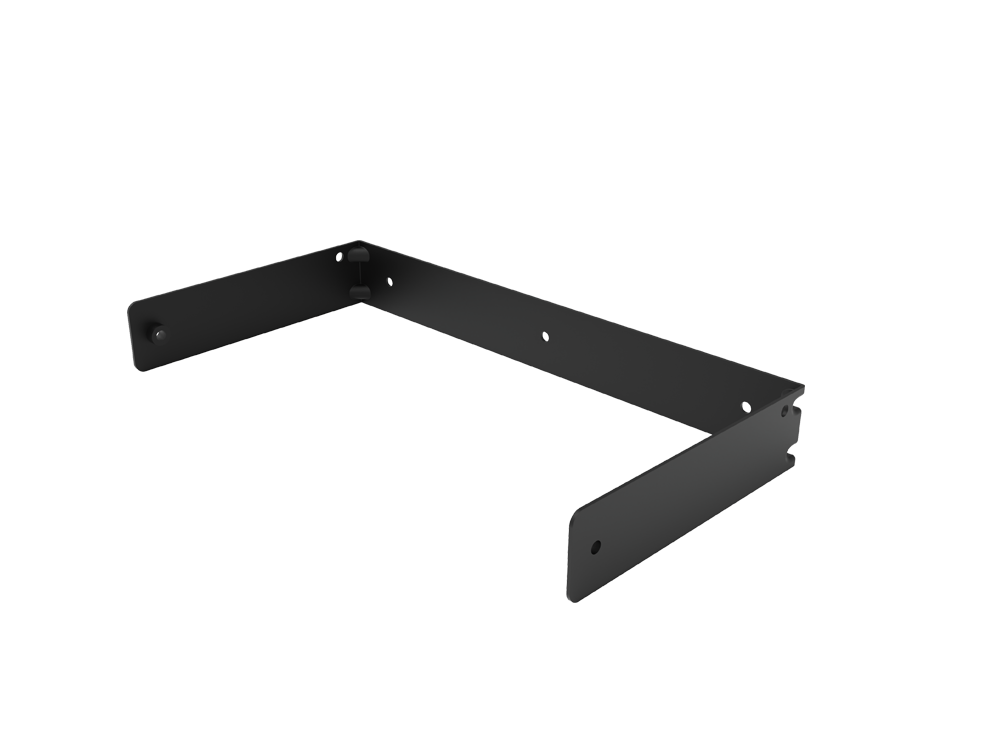

XL-UH15
