X-LITE

x lite 112

PASSIVE POINT SOURCE 12"

Click on the image to zoom

Download Accessories

The X LITE 112 is a passive 2-way speaker designed for versatile sound reinforcement applications. Featuring a 12″ woofer with a 2.5″ voice coil and a 1″ compression driver with a 1.4″ voice coil, it delivers a maximum SPL of 126.5 dB with a frequency response from 55 Hz to 20 kHz. The cabinet is made from gas-injected molded polypropylene, ensuring a lightweight yet robust structure. It includes four M10 rigging points, a 35mm pole mount socket, and can also be used as a floor monitor thanks to its asymmetric shape. Designed for both fixed installations and portable setups, X-Lite 112 is equipped with two Neutrik NL4 speakon connectors and a steel grille for driver protection.

Configuration: 2-way
Low Frequency Woofer: 12″ – 2.5″ VC
High Frequency Driver: 1″ – 1.4″ VC
Recommended Amplifier: 400W
Max SPL: 126.5 dB
Material: Gas-injected polypropylene with steel grille

Technical Specifications

Code:

46168

Configuration:

2 ways

Recommended amplifier:

400W RMS

Long Term power:

200W

Short term power:

800W

Nominal impedance:

8Ohm

Frequency response:

55Hz - 20kHz -6dB

Low Frequency woofer:

12'' - 2.5'' coil

High frequency driver:

1'' - 1.4'' coil

Sensitivity (@1W/1m):

97dB

Maximum SPL cont/peak:

123.5 / 126.5dB

Dispersion:

90° x 60° HxV

Crossover Frequency:

1.8kHz

Recommended HP filter:

HP 45Hz - 12/24dB oct

Recommended external filter:

FBT DSP Processor

Input connector:

2 x Speakon NL4

Net Dimension (WxHxD):

352 x 619 x 356 mm / 13.8 x 24.3 x 14 inch

Net Weight:

15.2 Kg / 33.5 Lb

Download

Datasheet

0.84 MB

User Manual

11.58 MB

Accessories

FMS 220BKS

XL-C 12

MSA 220BKS

MSA 300BK

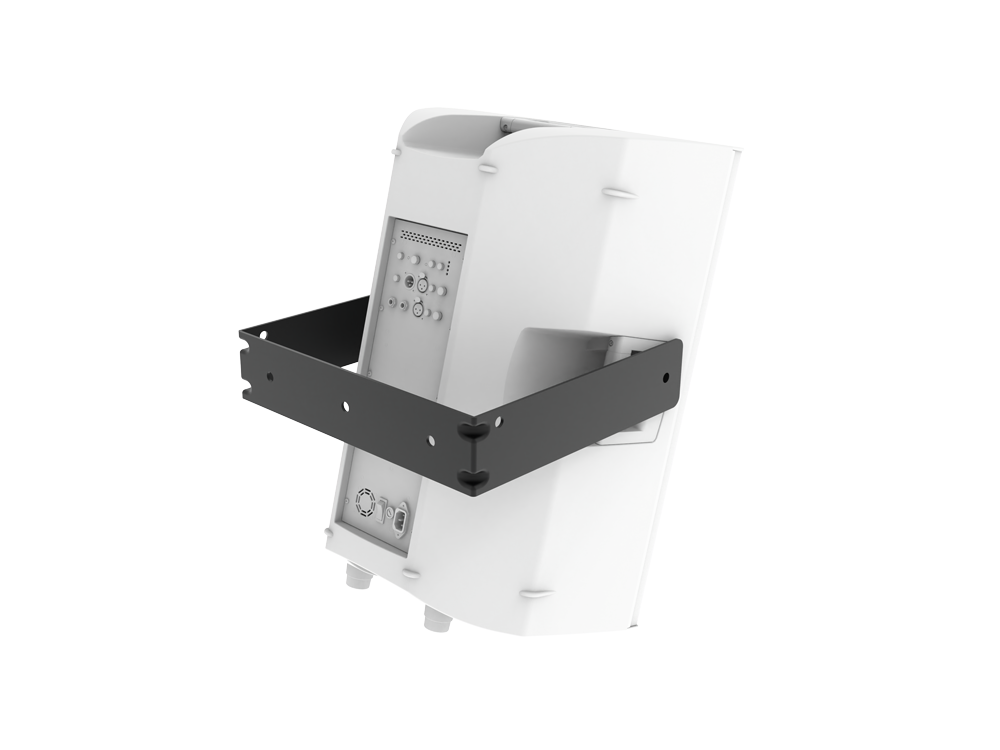

XL-UV12

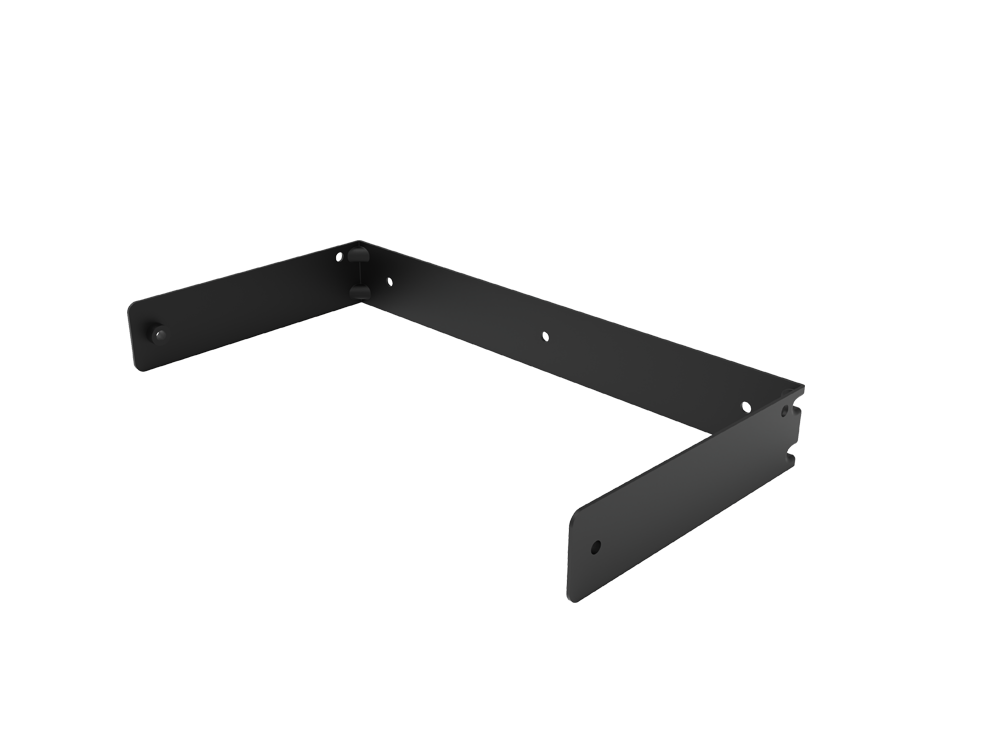

XL-UH12
