VERTUS DLA 804A is an active digitally steerable column line array designed for permanent installations requiring high speech intelligibility and controlled sound coverage. It features eight 4″ full-range drivers with 1″ voice coils, each powered by an independent 50W Class D amplifier (8 × 50W RMS total), housed in a sleek extruded aluminum enclosure.
Through beam steering technology, the DLA 804A allows digital adjustment of vertical dispersion via RS-485 network, controlled through PC software. This makes it ideal for reverberant environments such as churches, conference halls, and public spaces.
The rear panel includes Euroblock connectors for balanced input/output, SUB output, and RS-485 remote control. A switchable high-pass filter is available when pairing with external subwoofers. With a frequency response of 120 Hz to 20 kHz and a maximum SPL of 123 dB, the DLA 804A delivers clean, intelligible coverage in a compact form factor.
-
Configuration: Active digitally steerable line array
-
Full-Range Drivers: 8 × 4″ / 1″ VC
-
Integrated Amplifier: 8 × 50W RMS Class D
-
Maximum SPL: 123 dB
-
Material: Extruded aluminum cabinet
Technical Specifications
36186
8 x 40W RMS
8 x 100W
120Hz - 20KHz -6dB
8'' x 4'' - 1'' coil
---
120 / 123dB
100° x Digital controlled H x V
22 Kohm
---
400 VA
Euroblock
5 m / 16.4 ft
130 x 965 x 131 mm / 5.1 x 38 x 5.1 inch
13 Kg / 28.6 lb
260 x 1050 x 240 mm / 10.2 x 41.3 x 9.4 inch
16 Kg / 35.2 lb
Accessories

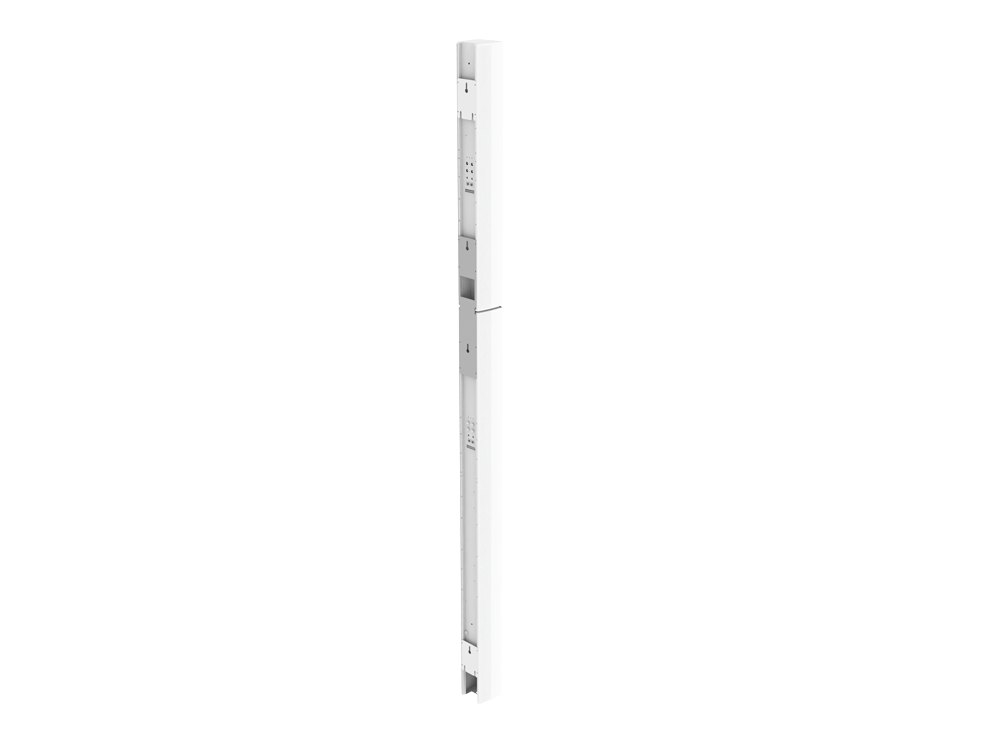

VT-J DLA
VT-W604
