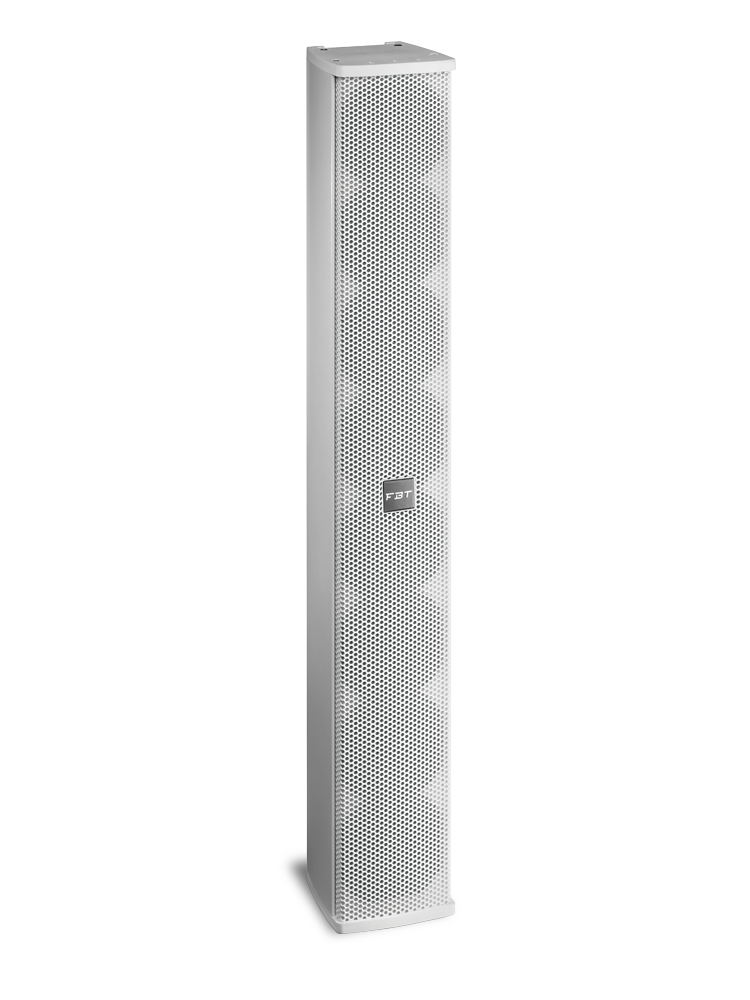

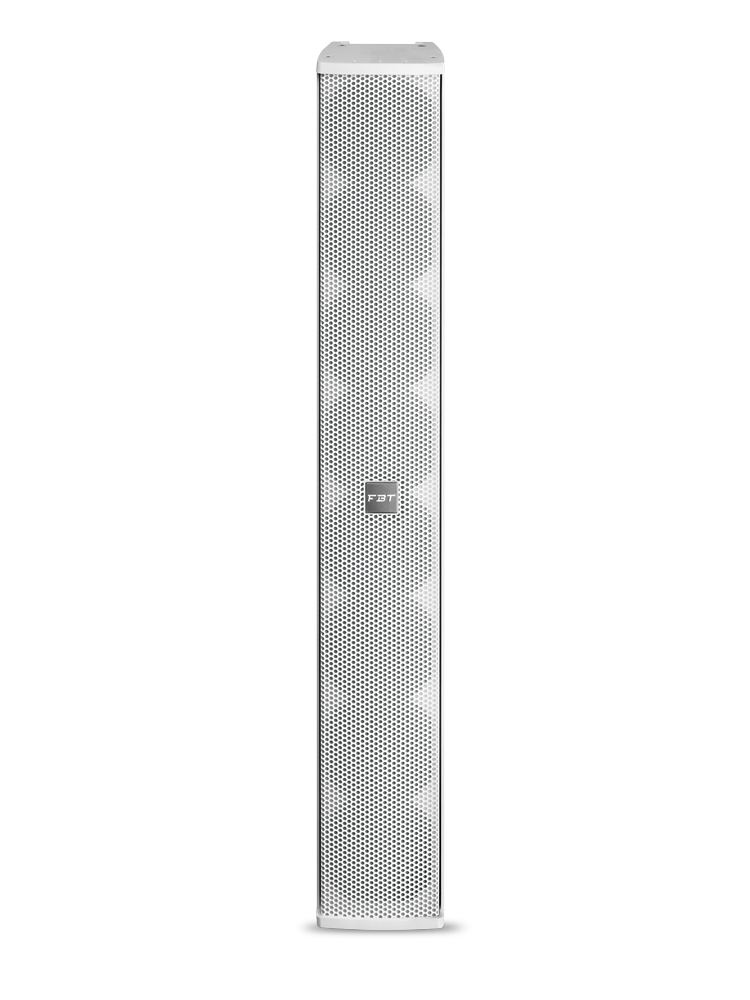

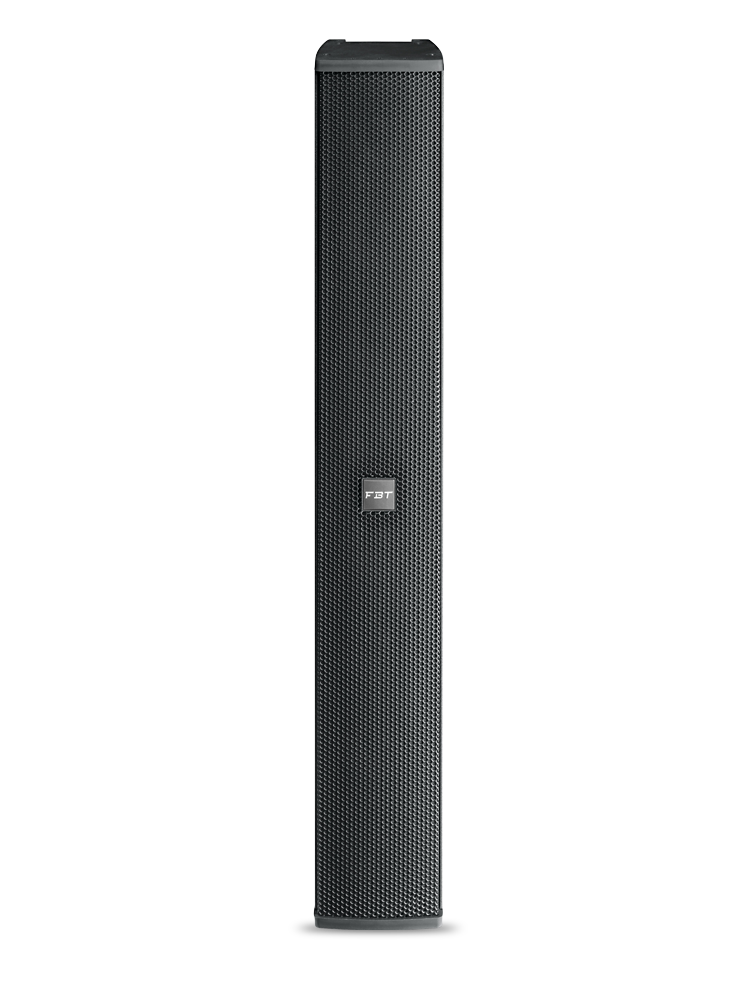

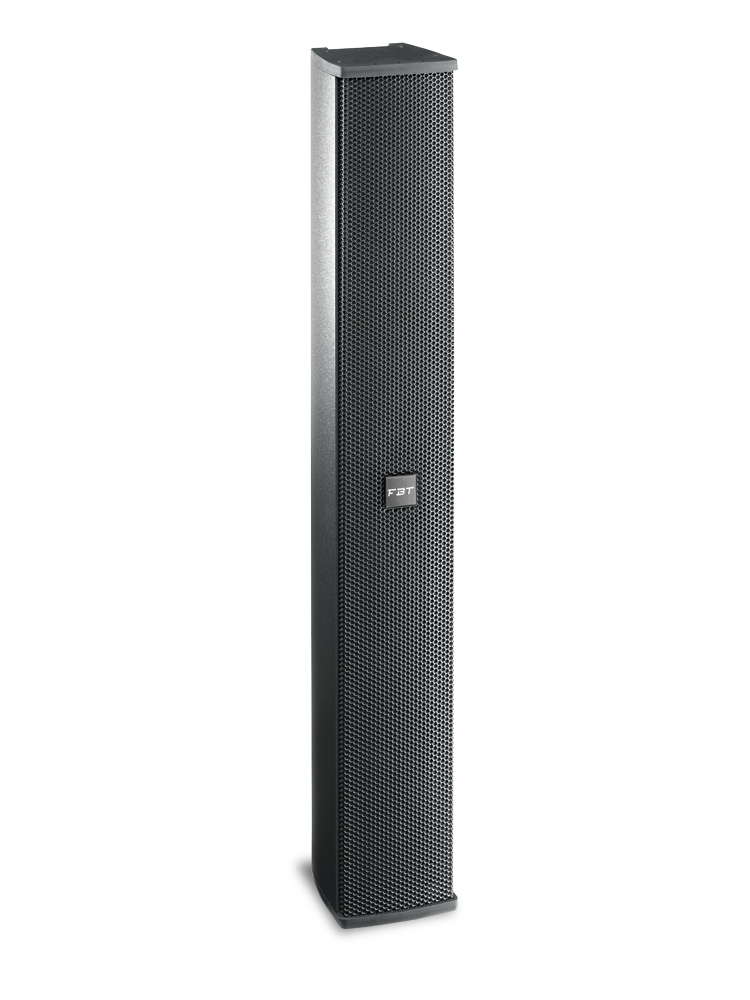

VERTUS CLA 803T is a passive 1-way column speaker designed for modular installation in both indoor and outdoor environments requiring high intelligibility and precise vertical dispersion control. It features eight 3″ full-range drivers with 0.75″ voice coils in an extruded aluminum enclosure with IP55 and EN 54-24 certification.
The column incorporates a passive directivity control system offering two selectable vertical coverage angles—NARROW and WIDE—making it ideal for use in acoustically challenging spaces. The built-in 100V/70V line transformer includes 50W and 25W power taps, and the unit can also operate at 8 Ohms. Multiple CLA 803T units can be linked for enhanced SPL and extended coverage. Connection is via ceramic terminal block with IN & through wiring. The rear panel supports the full range of FBT mounting accessories for fast and flexible installation on wall, truss, or flybar systems.
-
Configuration: 1-way passive column
-
Full-Range Driver: 8 × 3″ – 0.75″ VC
-
Transformer: 70V/100V – taps: 50 / 25 W
-
Recommended Amplifier: 200W RMS
-
Maximum SPL: 112 dB
-
Material: Extruded aluminum with perforated powder-coated steel grille
Technical Specifications
41806 (Black) / 41823 (White)
1 way
200W RMS
100W
400W
8 Ohm
150Hz - 20kHz -@6dB
---
8x3'' - 0.75'' VC Fullrange Driver
112/118 dB
125°x18° narrow - 110°x26° wide HxV (2kHz)
ceramic terminal block
100 x 704 x 125 mm / 3.9 x 27.7 x 4.9 inch
5.5 Kg / 12.1 lb
190 x 760 x 170 mm / 7.4 x 30 x 6.7 inch
6.2 Kg / 13.7 lb
Accessories

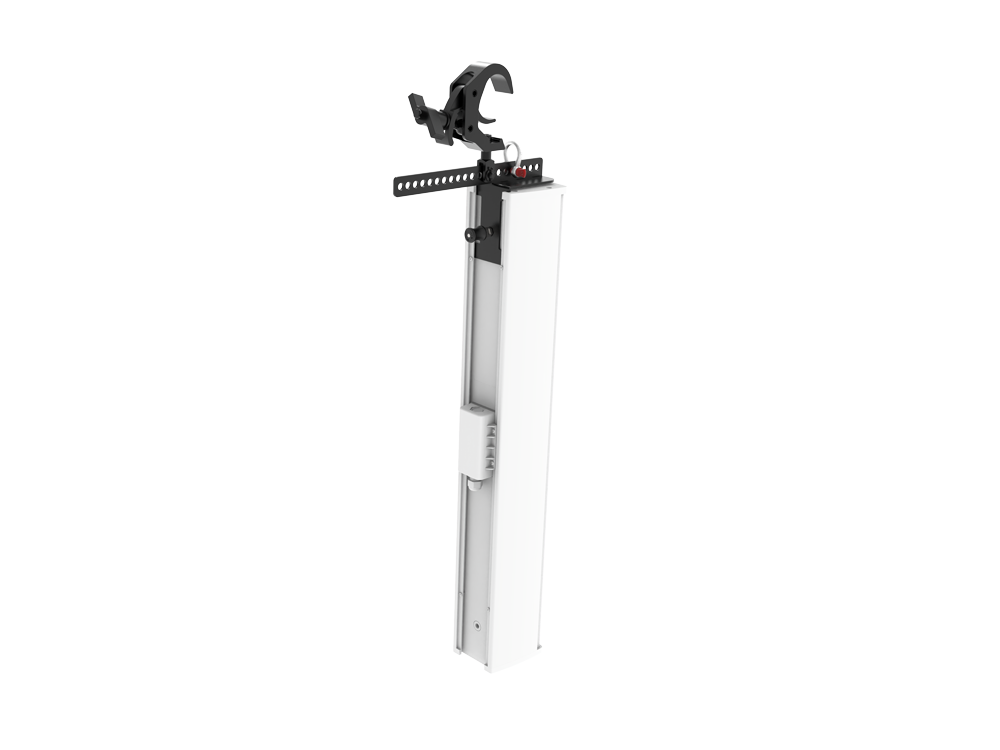

VT-T 3

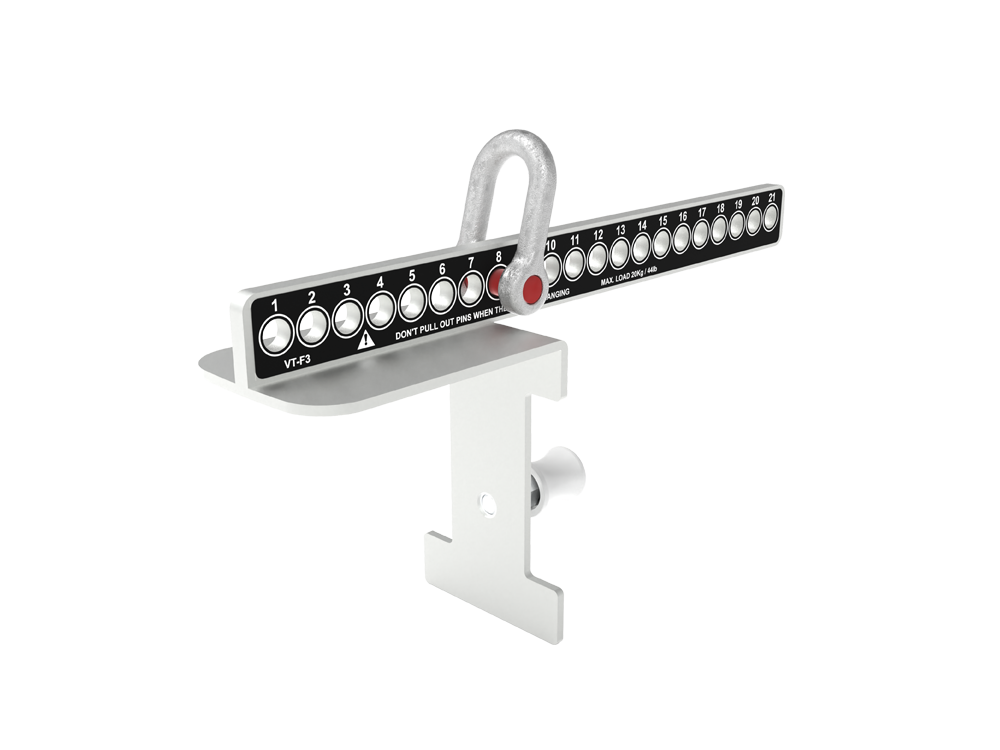

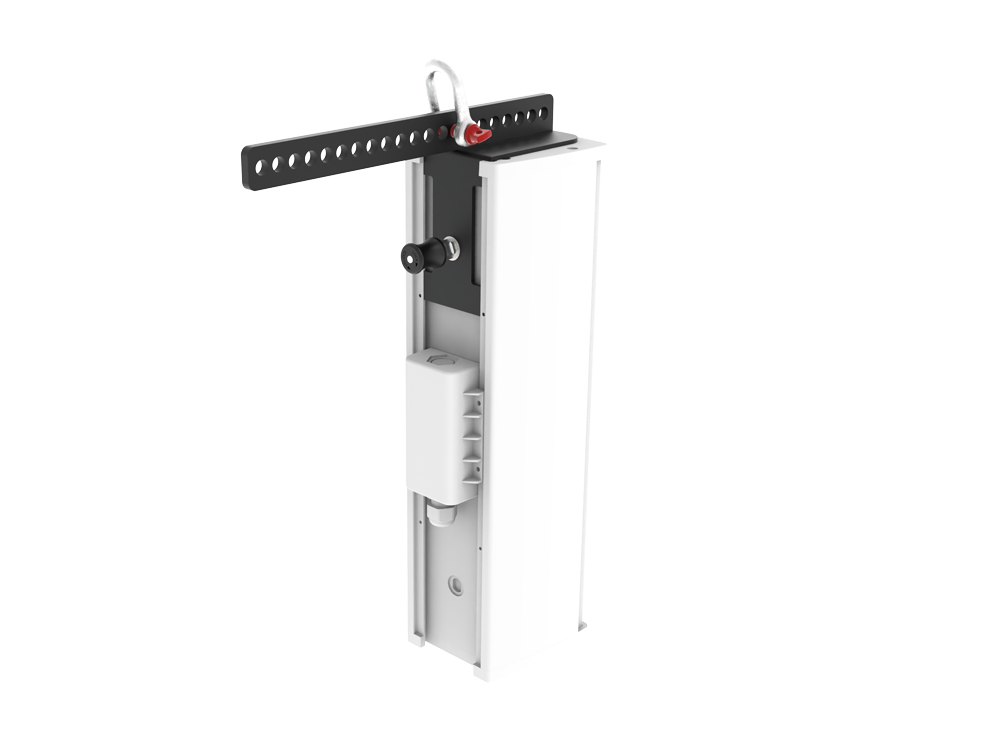

VT-F 3

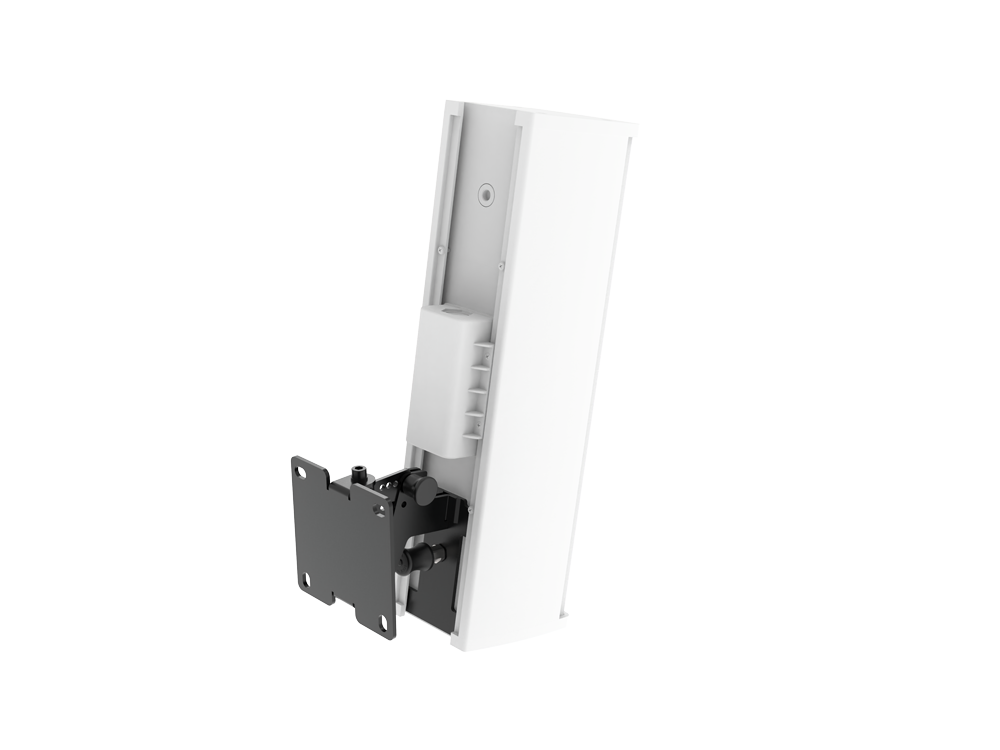

VT-W 3

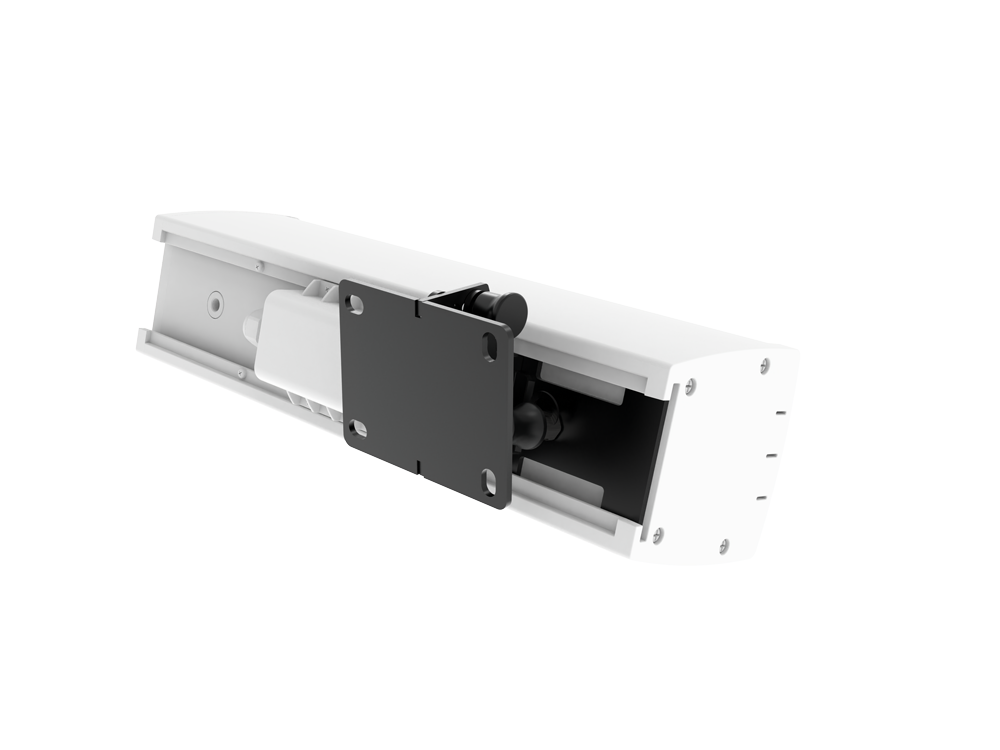

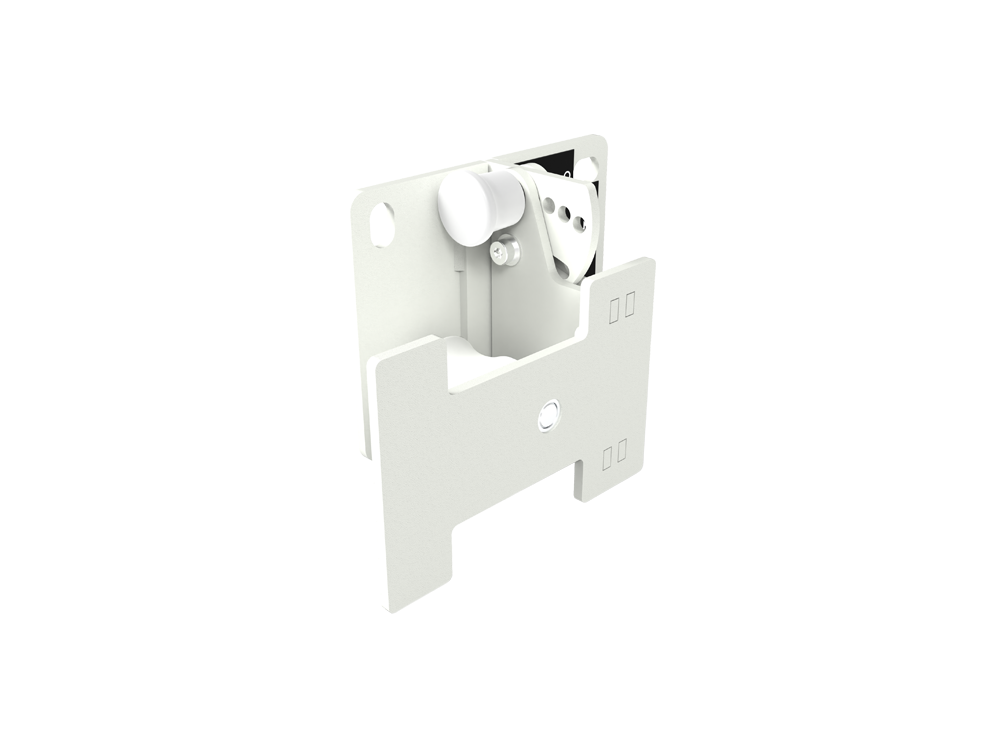

VT-WH 3

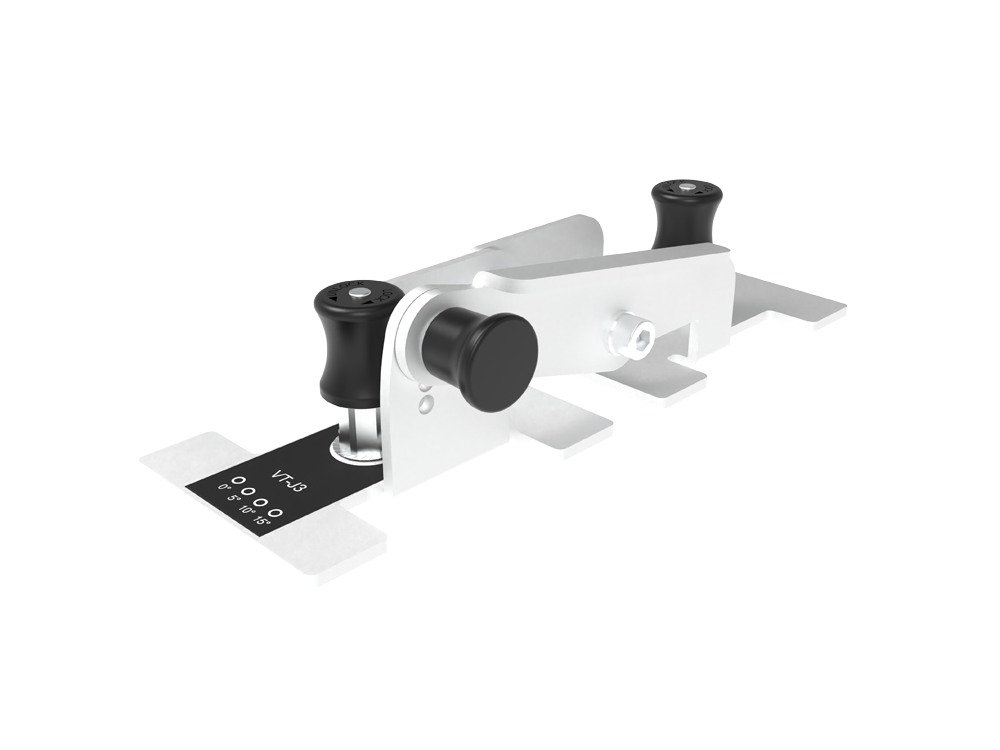

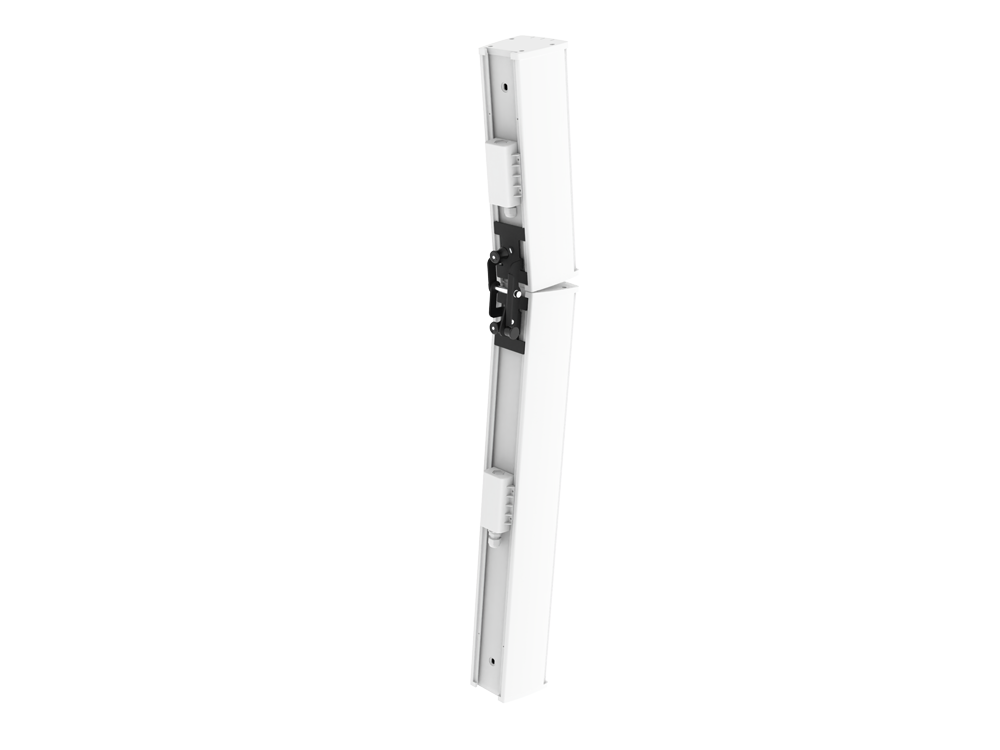

VT-J 3

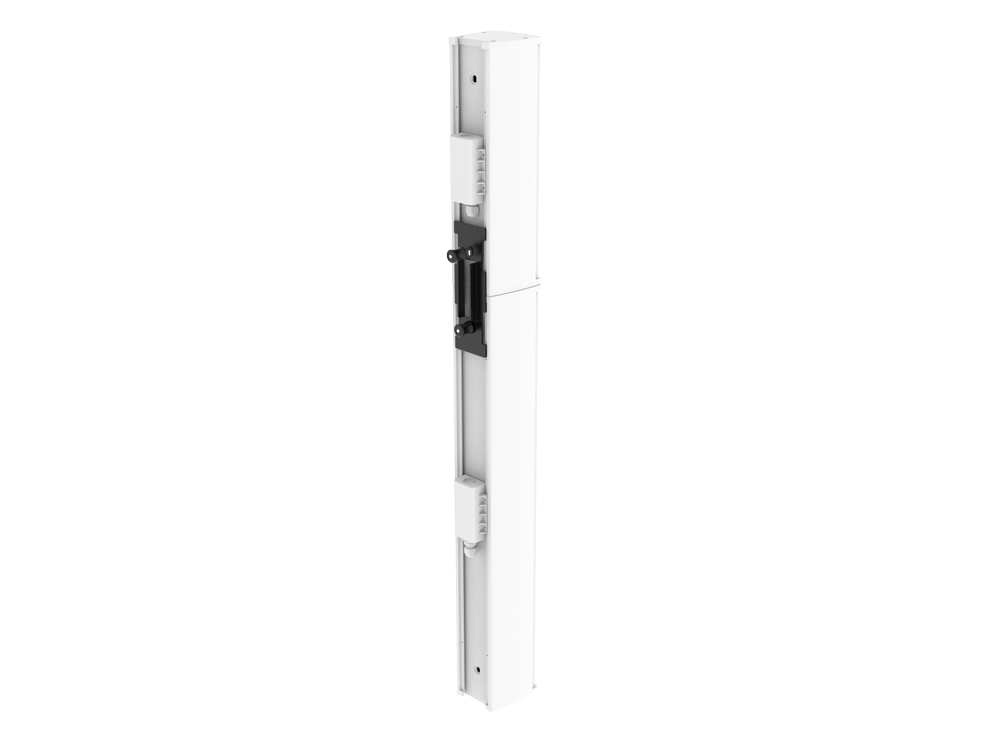

VT-JF 3
