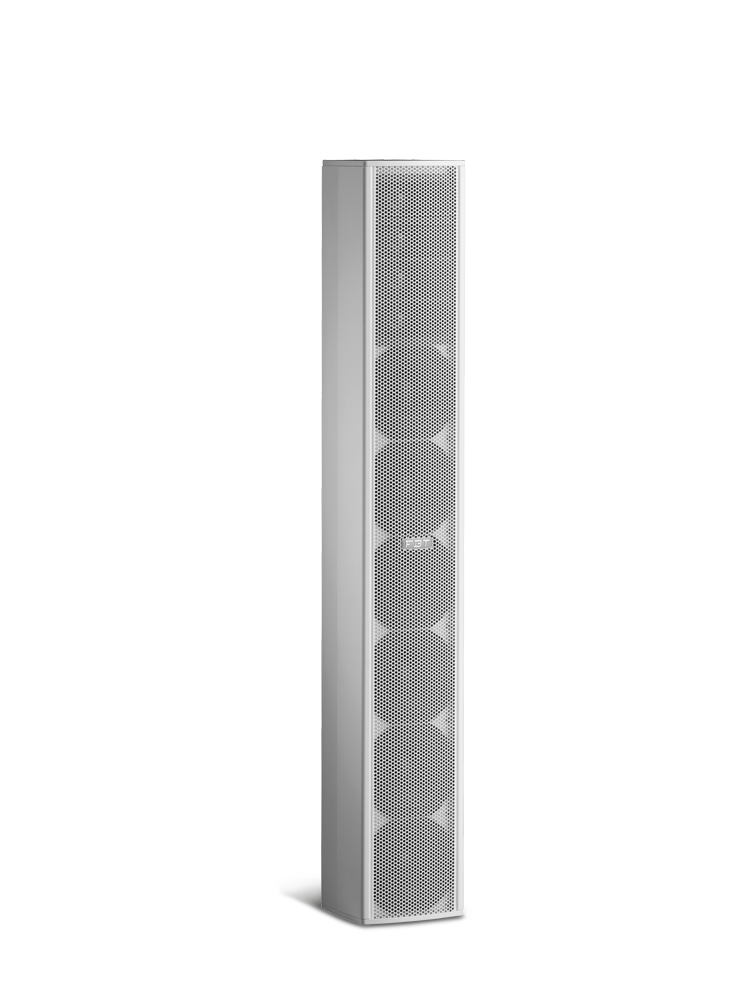

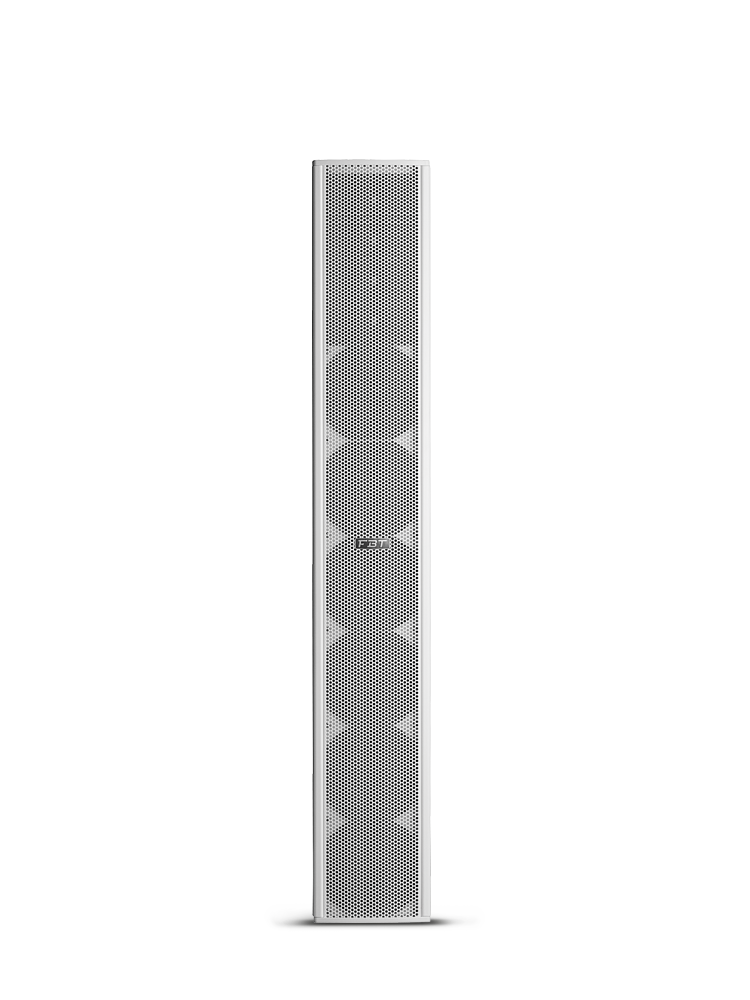

VERTUS CLA 604 is a passive 2-way column line array speaker designed for fixed installations in reverberant indoor environments. It incorporates six 4″ custom woofers with 1″ voice coils and four 1″ neodymium dome tweeters mounted on a waveguide, offering controlled vertical dispersion and exceptionally wide horizontal coverage for improved voice and music intelligibility. The enclosure is constructed from extruded aluminum with a perforated steel grille and features an integrated fire-resistant cable.

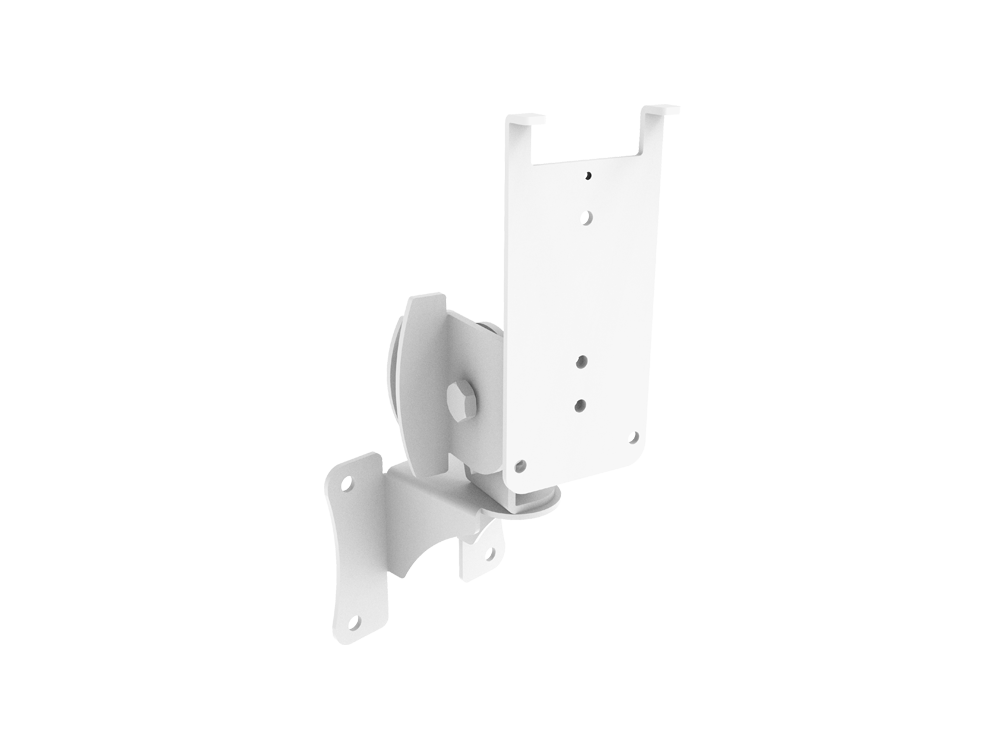

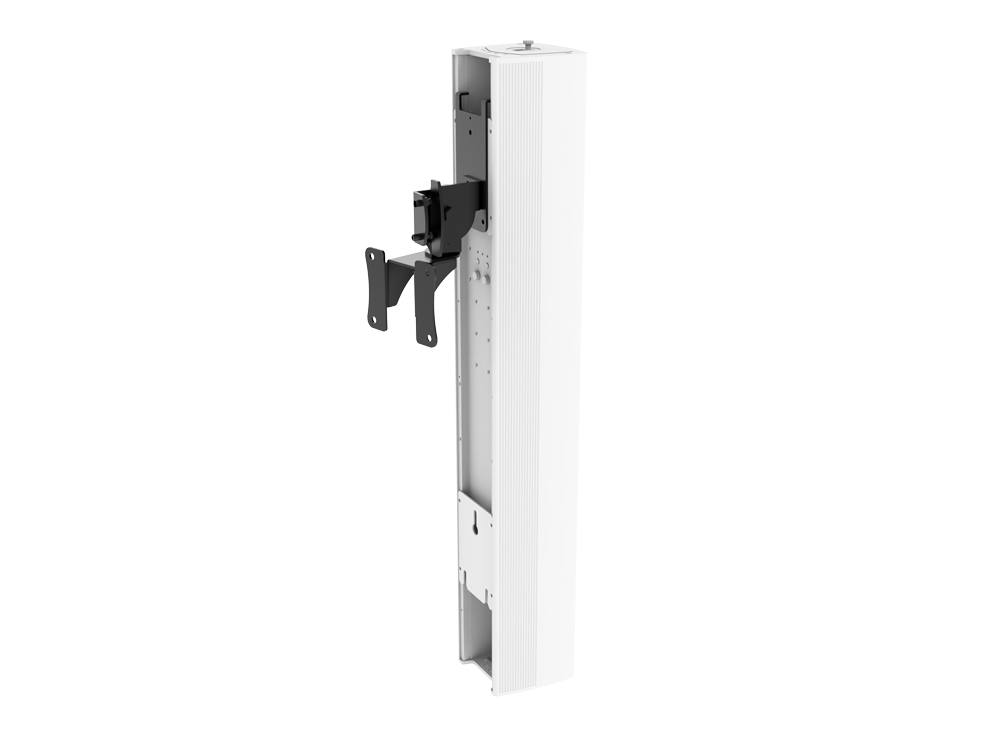

The CLA 604 supports both low-impedance (8 Ohm) and 100V operation with optional transformer taps at 100W and 50W. Connection is via a 4-wire through-terminal, and mounting is simplified with included wall bars. The unit is EN 54-24 certified for voice alarm systems. Available in black or white, it is ideal for conference spaces, auditoriums, churches, and meeting venues requiring full-range performance with compact form factor.
Configuration: 2-way
Low Frequency Woofer: 6 x 4″
High Frequency Driver: 4 x 1″– 1.4″ VC
Recommended Amplifier: 250W RMS
Maximum SPL: 110 dB
Material: birch plywood Extruded aluminum with perforated steel grille
36145
2 ways
250W RMS
100W
500W
8Ohm
140Hz - 20 KHz - @6dB
6 x 4" - 1" VC
4 x 1" - 1" VC
110dB (1W, 1m)
200°X70° (500Hz) / 190°x40° (1KHz) / 120°x15° (2kHz) / 110°x30° (4kHz) HxV
cable 4 connectors
130 x 849 x 133 mm / 5.1 x 33.4 x 5.2 inch
10.5 Kg / 23.1 Lb
245 x 930 x 220 mm / 9.6 x 36.6 x 8.6 inch
12 Kg / 26.4 Lb
