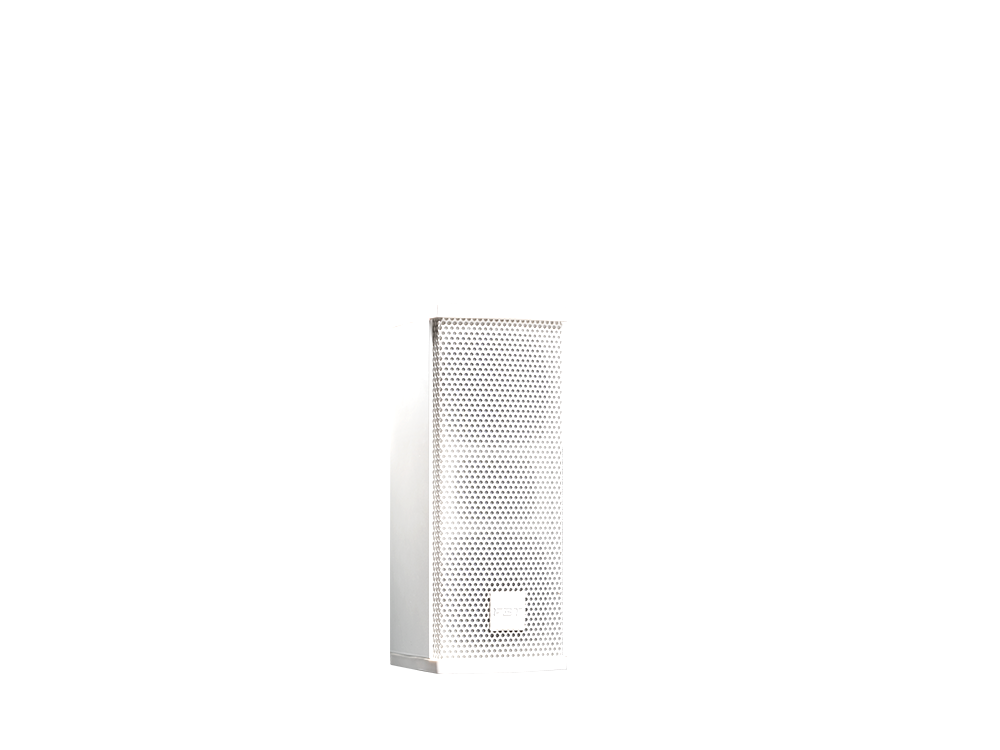

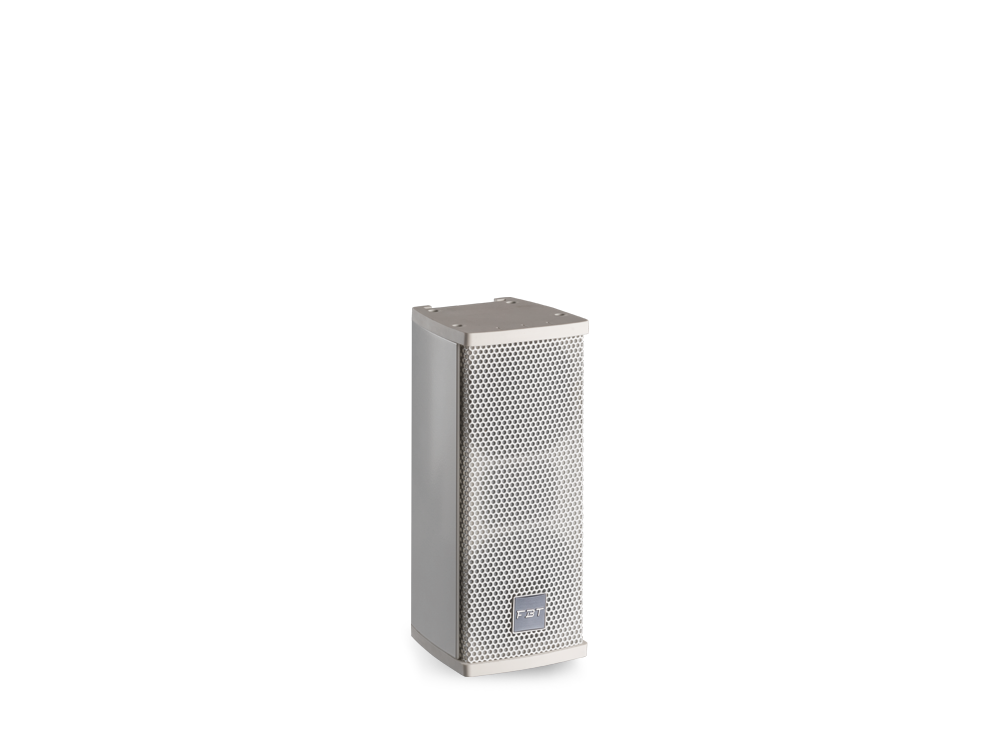

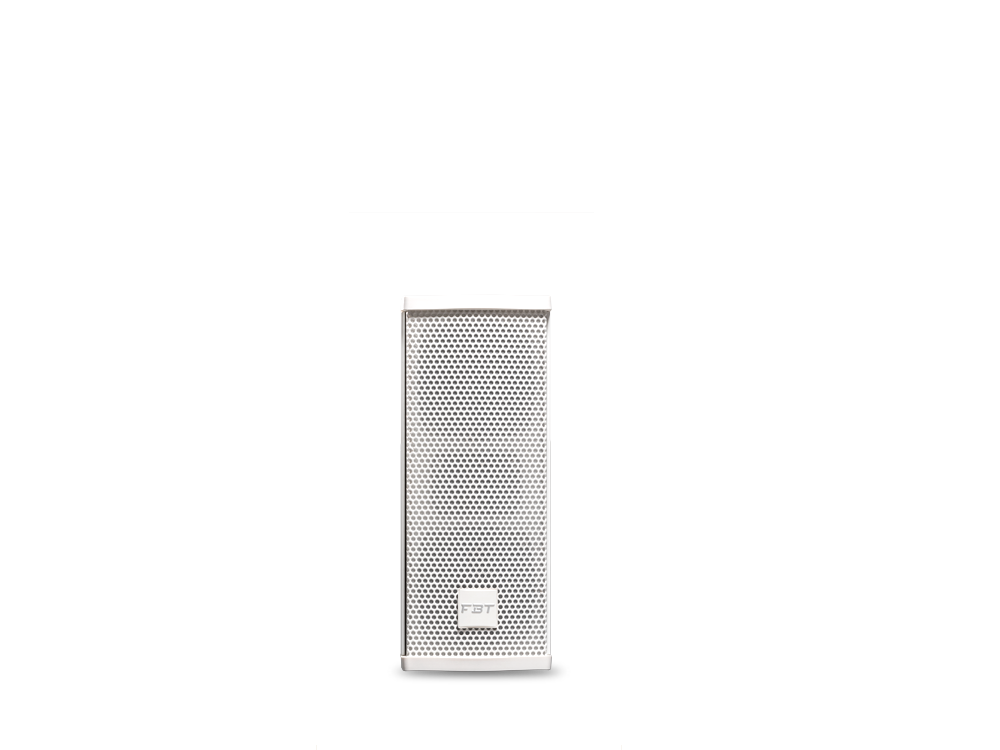

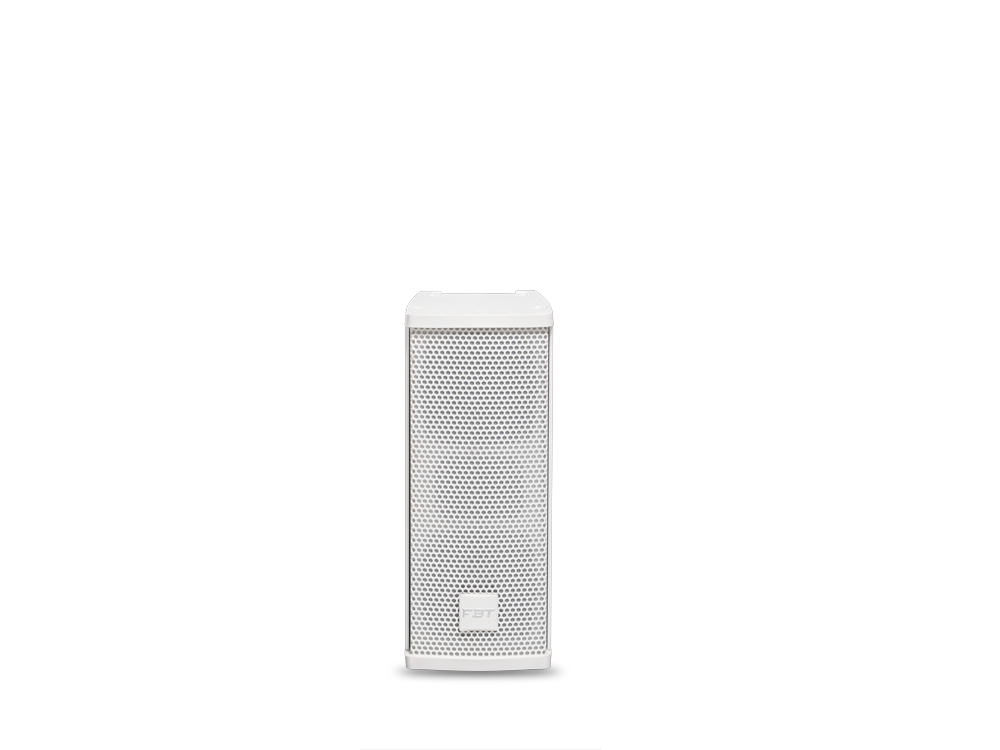

VERTUS CLA 203T is a passive 2-way column speaker designed for fixed indoor installations where compact dimensions, intelligibility, and design integration are key. It incorporates two custom 3″ woofers with 0.75″ voice coils and a 1″ neodymium dome tweeter, housed in an extruded aluminum enclosure available in black or white finish.
The speaker includes a switchable 70V/100V transformer with power taps at 30/20/10/5W, as well as an 8 Ohm low-impedance input. Connections are made via ceramic screw-terminal block with IN & through wiring. CLA 203T is IP55-rated and EN 54-24 certified, making it suitable for voice alarm and emergency systems.
With 160 Hz–20 kHz frequency response and SPL of 101 dB, it ensures full-range coverage for speech and background music applications. Four rear fixing points support horizontal or vertical mounting using the optional WM-23 directional bracket
-
Configuration: 2-way
-
Low Frequency Woofer: 2 × 3″ – 0.75″ VC
-
High Frequency Driver: 1″ neodymium dome tweeter
-
Recommended Amplifier: 60W RMS
-
Transformer: 70V/100V – taps: 30 / 20 / 10 / 5 W taps
-
Maximum SPL: 101 dB
-
Material: Extruded aluminum with steel grille
Technical Specifications
45510 (Black) / 45351 (White)
2 way
80W RMS
---
---
8Ohm
150Hz - 20KHz @-6dB
2 x 3'' - 0.75'' VC
1'' dome
88
100 (1 m) dB
125°x70° HxV (2kHz)
---
100hz - 24dboct
---
ceramic screw bloc
100 x 249 x 125mm / 3.9 x 9.8 x 4.9 inch
1.5 Kg / 3.3 lb
Accessories
WM-23
