VERTUS CLA 112S

PASSIVE SUBWOOFER 12"

VERTUS CLA 112S

Click on the image to zoom

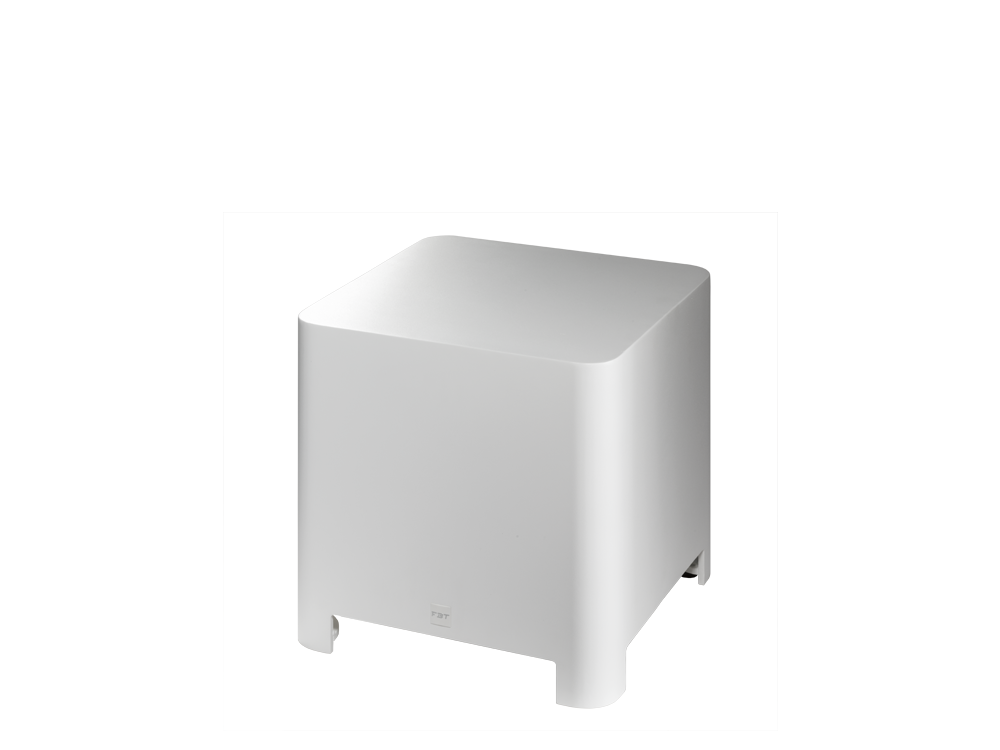

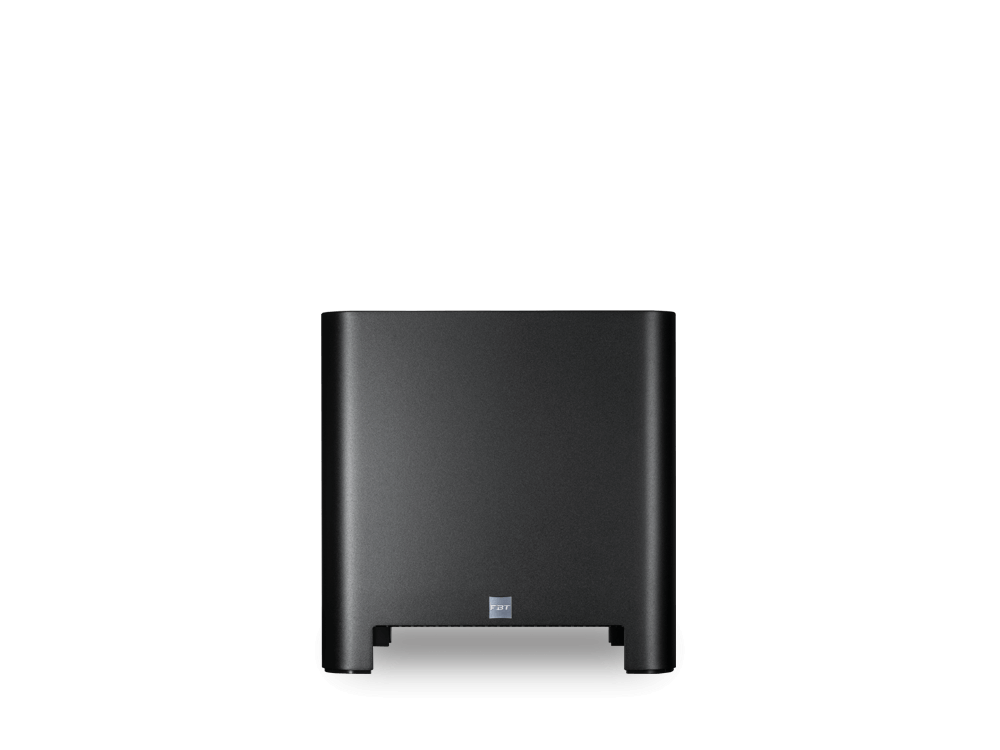

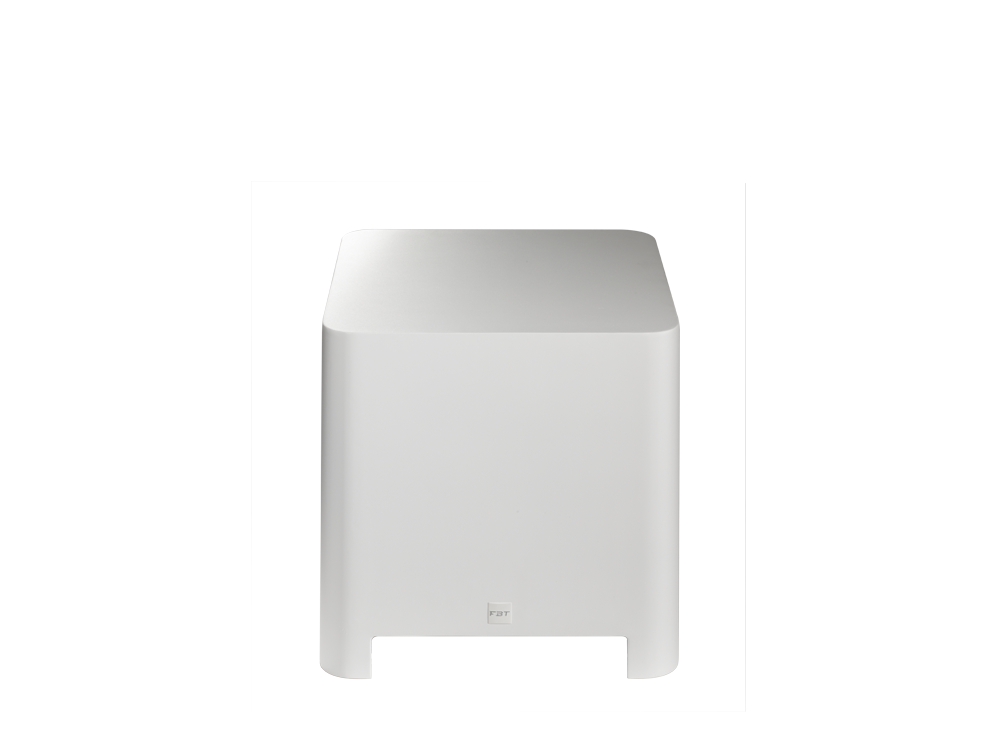

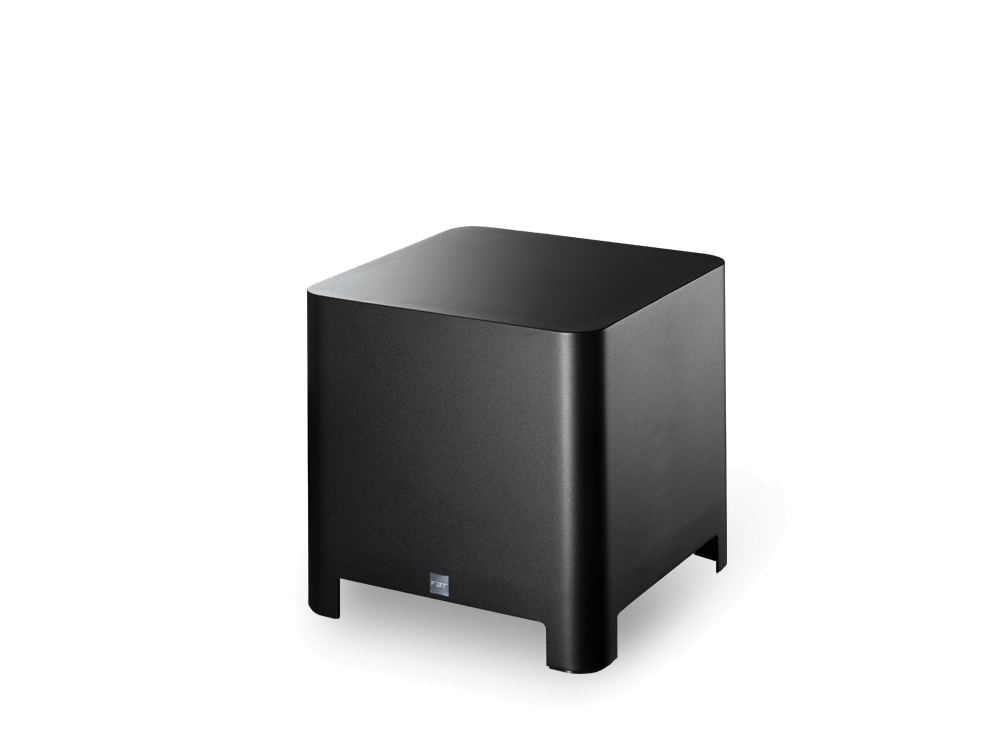

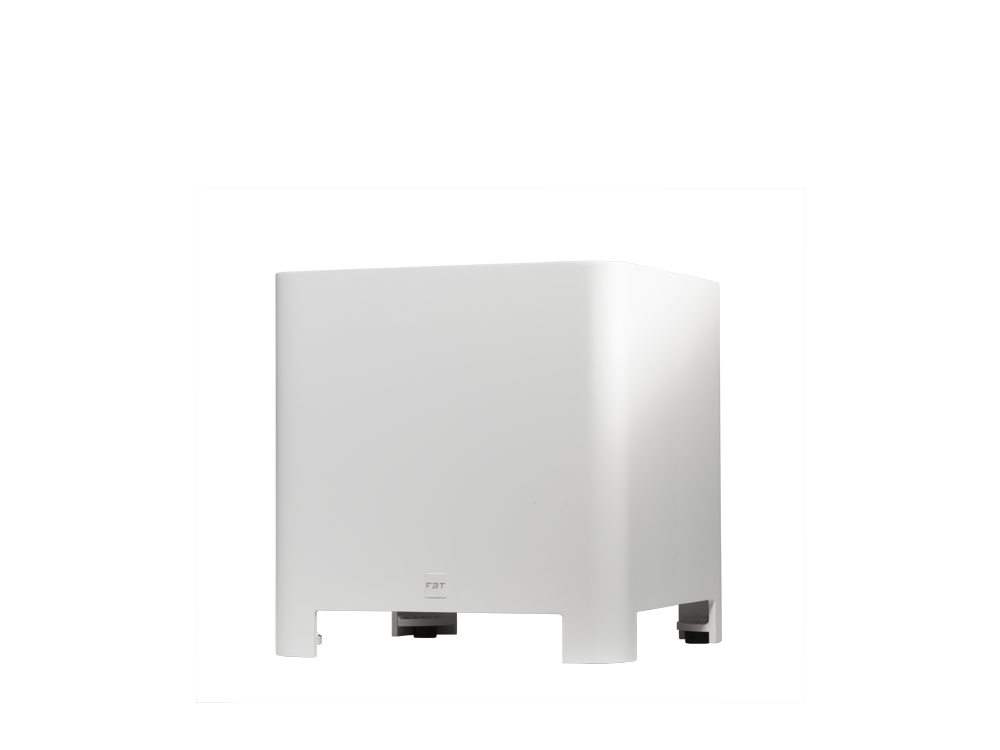

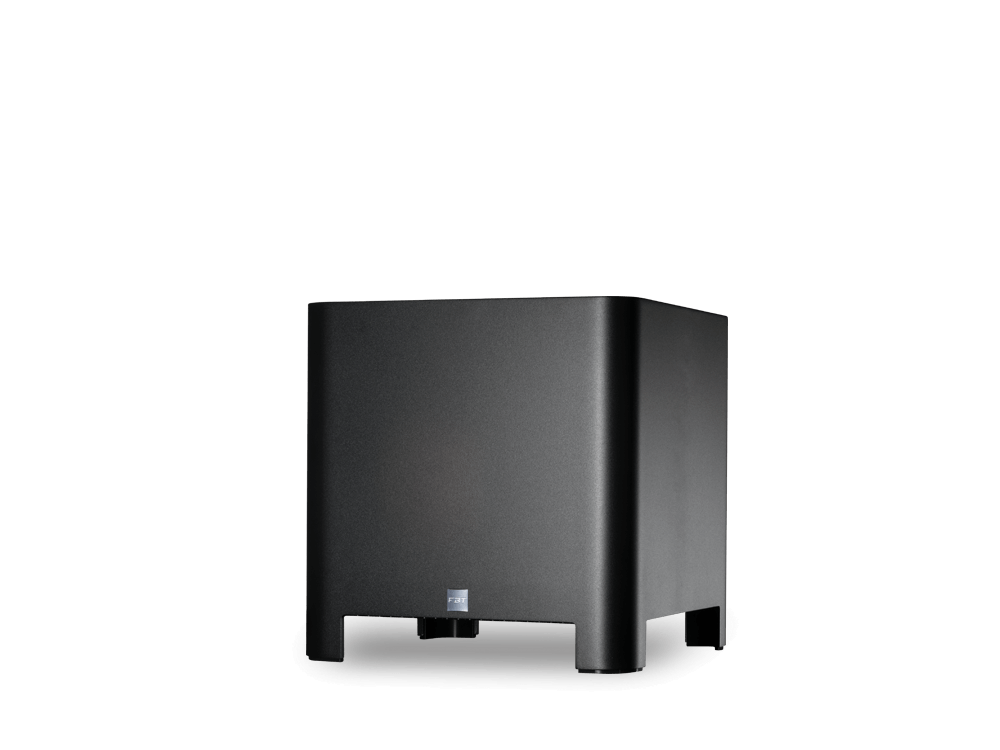

VERTUS CLA 112S is a passive subwoofer specifically designed to extend the low-frequency response of the VERTUS CLA series. Compact yet powerful, it features a custom 12″ woofer with 2.5″ voice coil, housed in a low-profile aluminum cabinet suitable for visible or discreet installation. With 600W RMS recommended amplification, the CLA 112S delivers clean and dynamic low-end, reaching up to 130 dB SPL.

The enclosure includes a 4-pin barrier terminal block for input and link connections, and supports external DSP filtering (no internal crossover). A recommended 35 Hz high-pass filter with 24 dB/oct slope ensures optimal performance. It is IP55-rated for outdoor installation and available in black or white (custom RAL upon request). CLA 112S can be ground-stacked with optional safety pins and used in applications ranging from corporate venues to houses of worship.

  • Configuration: Subwoofer

  • Low Frequency Woofer: 1 × 12″ – 2.5″ VC

  • Recommended Amplifier: 600W RMS

  • Maximum SPL: 130 dB

  • Material: Aluminum enclosure with scratch-resistant finish

Technical Specifications

Omnidirectional

1 way

600W RMS

300W

1200W

8Ohm

28Hz preset dependant @-6dB

12'' - 3'' VC

127 / 130dB

Omnidirectional

---

Euroblock in & throu

400 x 413 x 400 mm / 15.7 x 16.2 x 15.7 inch

25 Kg / 55.1 lb

465 x 475 x 460 mm / 18.3 x 18.7 x 18.1 inch

27.5 Kg / 60.6 lb

Accessories

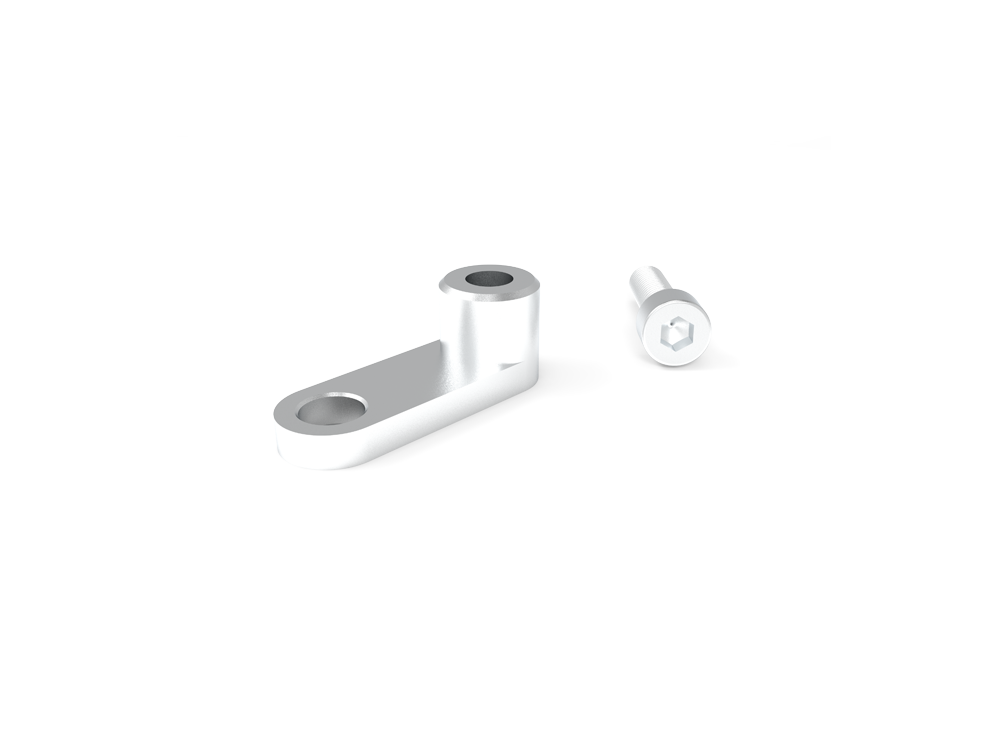

VT-B 112S

VT-B 112S
