SUBLINE

SUBLINE 218SA

ACTIVE SUBWOOFER 2x18"

Click on the image to zoom

Download Accessories

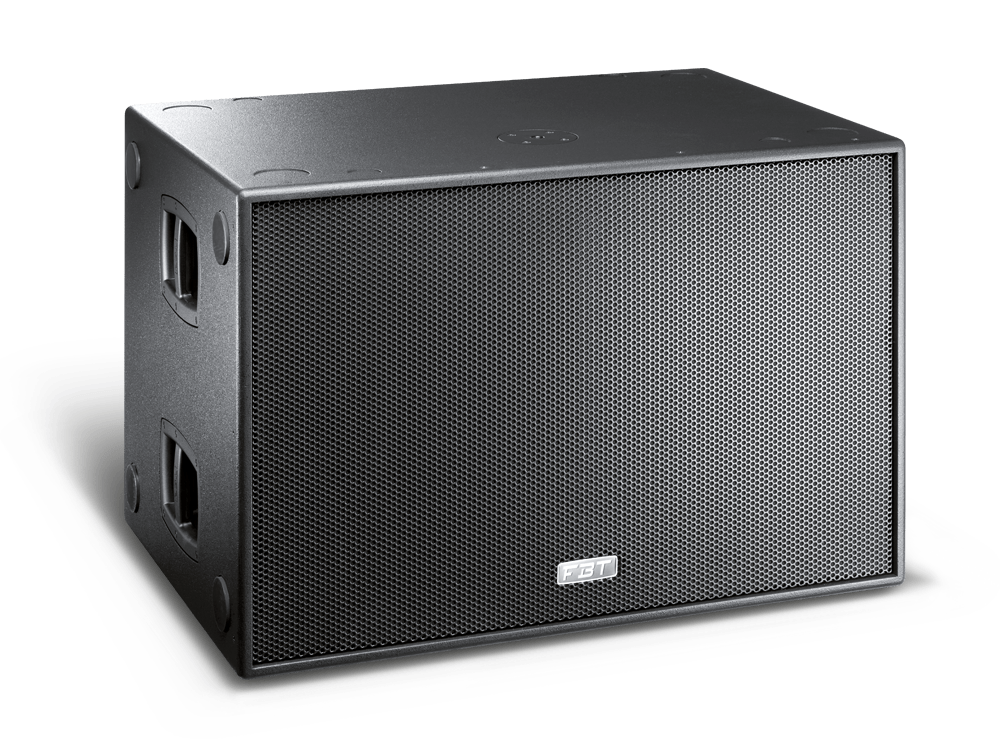

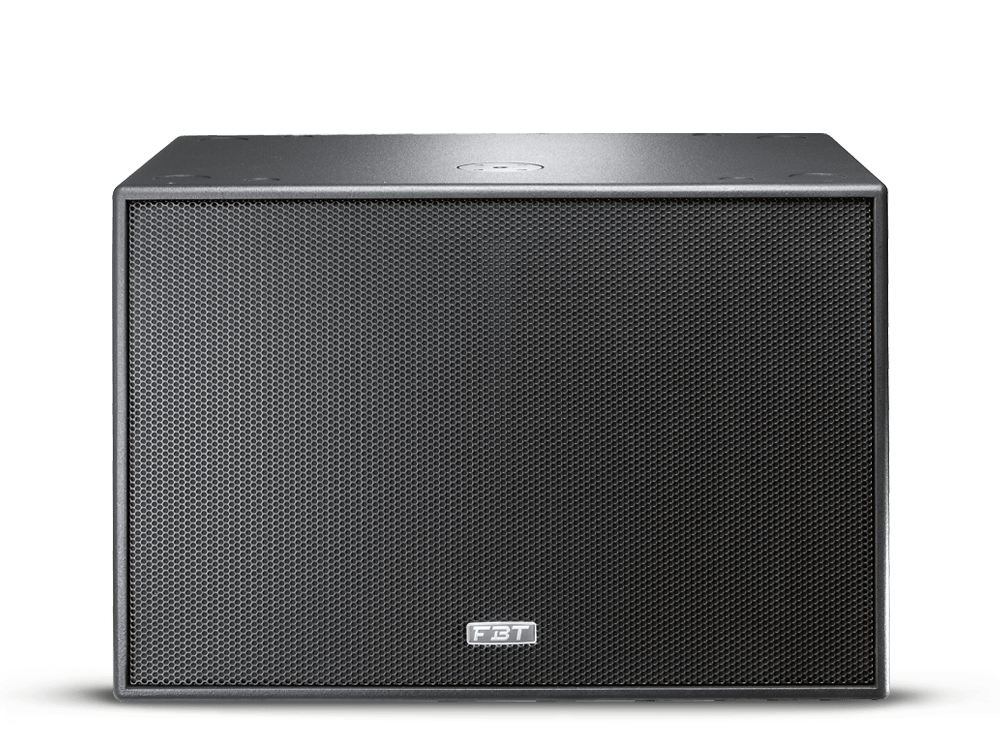

The SUBLINE 218SA is a dual 18” active subwoofer designed for the most demanding large-scale sound reinforcement applications. It features two 18” high-excursion woofers with 3” voice coils, powered by a massive 1200W RMS Class D amplifier, delivering extreme bass power with clarity and definition. Constructed from heavy-duty birch plywood with a scratch-resistant finish, the SUBline 218SA includes reinforced handles, an M20 top mount, and rugged hardware for touring or installed setups.

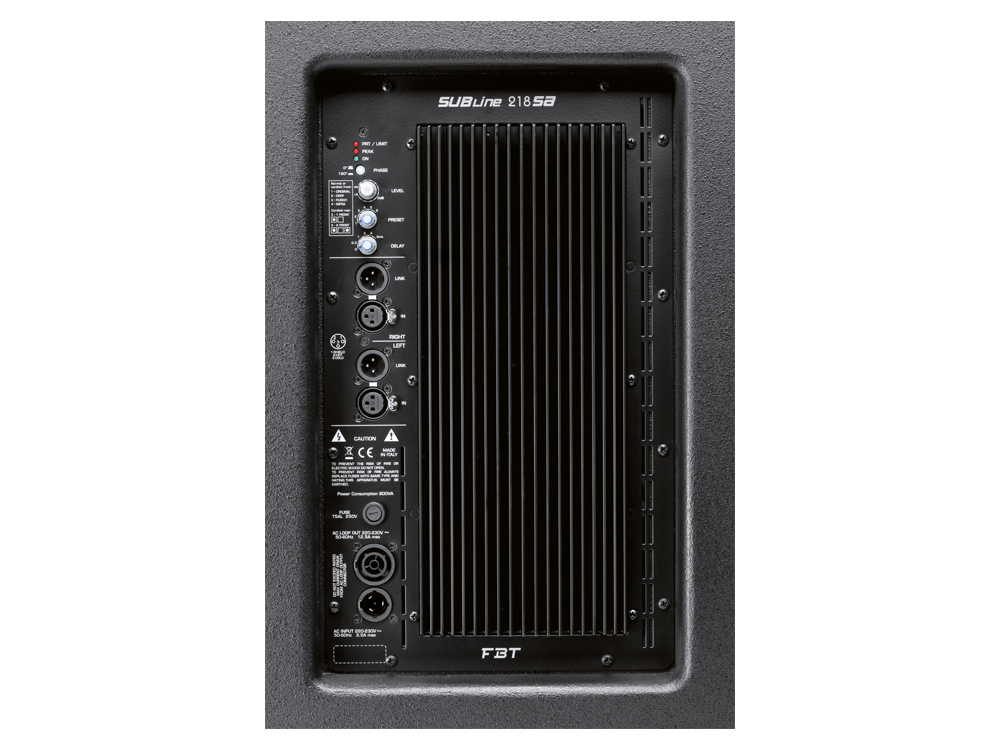

Integrated DSP provides 6 adjustable presets and crossover management, making it the ultimate low-frequency partner for FBT’s top-tier active speaker systems.The SUBLine 218SA is equipped with balanced stereo XLR IN and LINK OUT, level control, delay and phase switch ensuring precise system alignment and maximum performance.

Configuration: Bass reflex
Low Frequency Woofer: 2 x 18” – 3” VC
Built-in Amplifier: 1200W RMS
Maximum SPL: 140dB
Material: Baltic birch plywood

Technical Specifications

Code:

38774

Configuration:

1 way Reflex

Built-in amplifier LF/HF:

1200W RMS

Built-in amplifier peak LF/HF:

2400W

Frequency response:

30Hz - 100Hz -6dB

Low Frequency woofer:

2 x 18'' - 3'' coil

Maximum SPL cont/peak:

137 / 140dB Half-space

Dispersion:

Omnidirectional

Input impedance:

22 Kohm

Crossover Frequency:

100Hz

AC Power requirements:

1050 VA

Input connector:

XLR IN/OUT

Power cord:

7 m/ 22.9 ft

Net Dimension (WxHxD):

970 x 661 x 670 mm / 38.1 x 26 x 26.3 inch

Net Weight:

83.5 kg/ 184 lb

Transport Dimension (WxHxD):

1150 x 830 x 800 mm / 45.2 x 32.6 x 31.4 inch

Transport Weight:

96.5 Kg/ 212.7 lb
