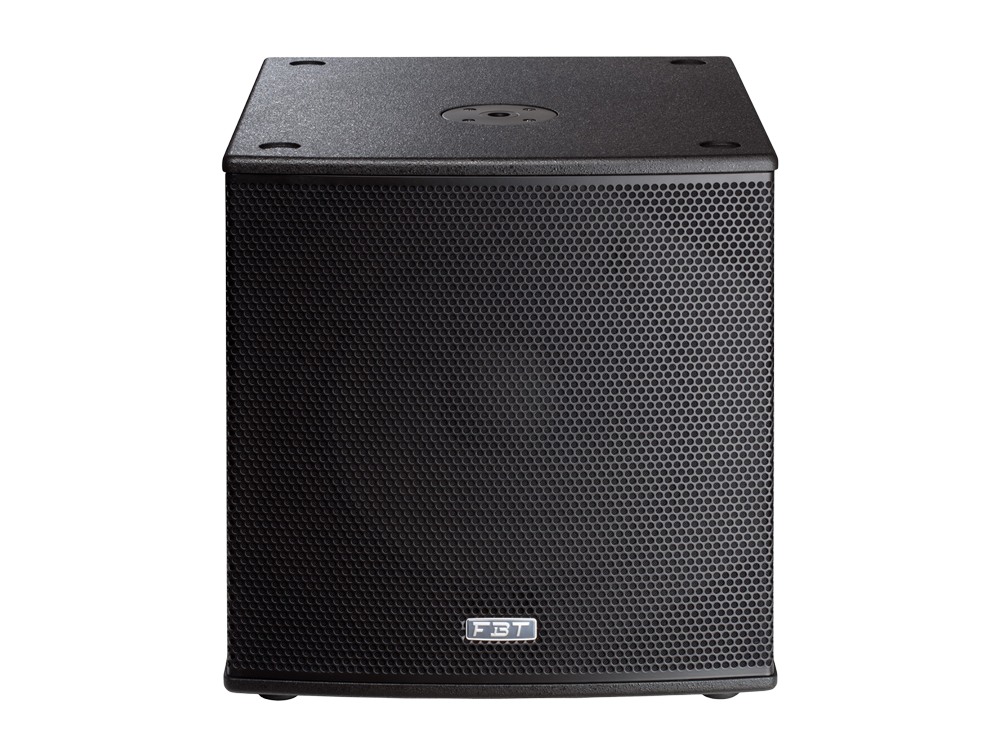

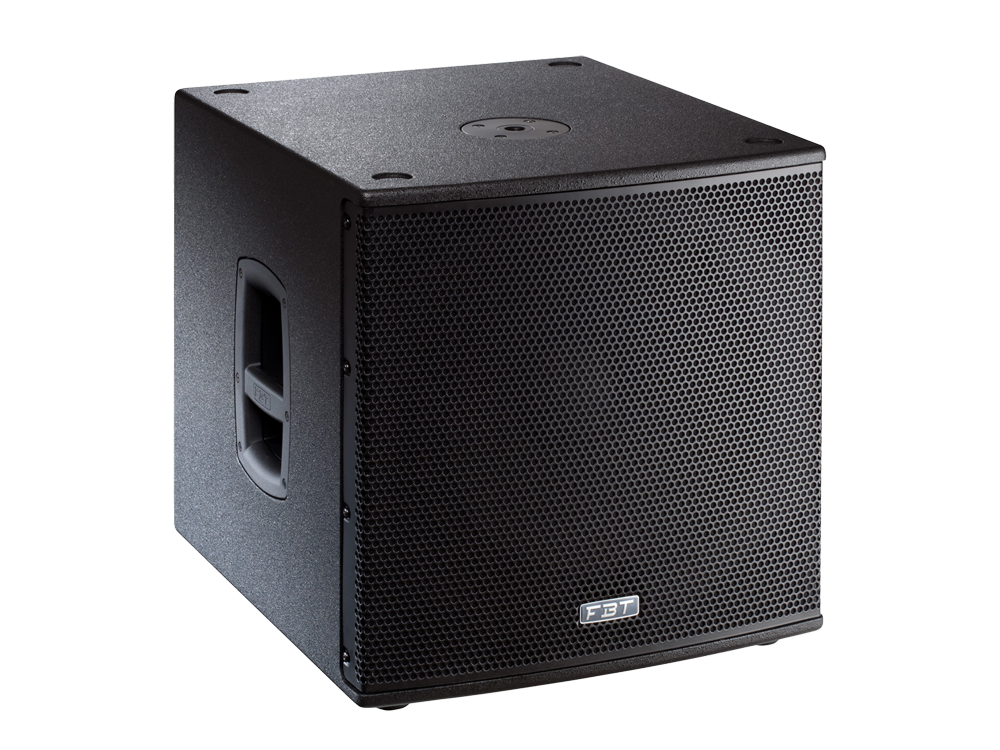

The SUBLINE 115S is a compact passive subwoofer designed for applications where powerful, extended bass is needed in a lightweight and portable format. It features a 15” high-excursion woofer with a 3” voice coil, delivering deep low-frequency response with clarity and impact.
Constructed from robust birch plywood with a scratch-resistant paint finish, this subwoofer is equipped with ergonomic carrying handles and an M20 top mount for pole installation. It’s the ideal complement to FBT’s portable full-range speakers, enhancing low-end performance for both live events and fixed installations.
The SUBLINE 115S is equipped with integrated Speakon NL4 IN & LINK connectors for secure signal connection and is optimized for use with an external processor (such as the DLM26) to ensure precise crossover management and system alignment.
Technical Specifications
41511
1 way Reflex
700W RMS
350W
1400W
8 Ohm
40Hz - 140Hz -6dB
15'' - 3'' coil
132 / 135dB half-space
Omnidirectional
---
2 x Neutrik Speakon
500 x 517 x 570 mm / 19.7 x 20.3 x 22.4 inch
22.8 Kg / 50.2 lb
680 x 610 x 605 mm / 26.7 x 24 x 23.8 inch
32.5 Kg / 71.6 lb
Download
Accessories
FMS 220BKS
SL-C 115

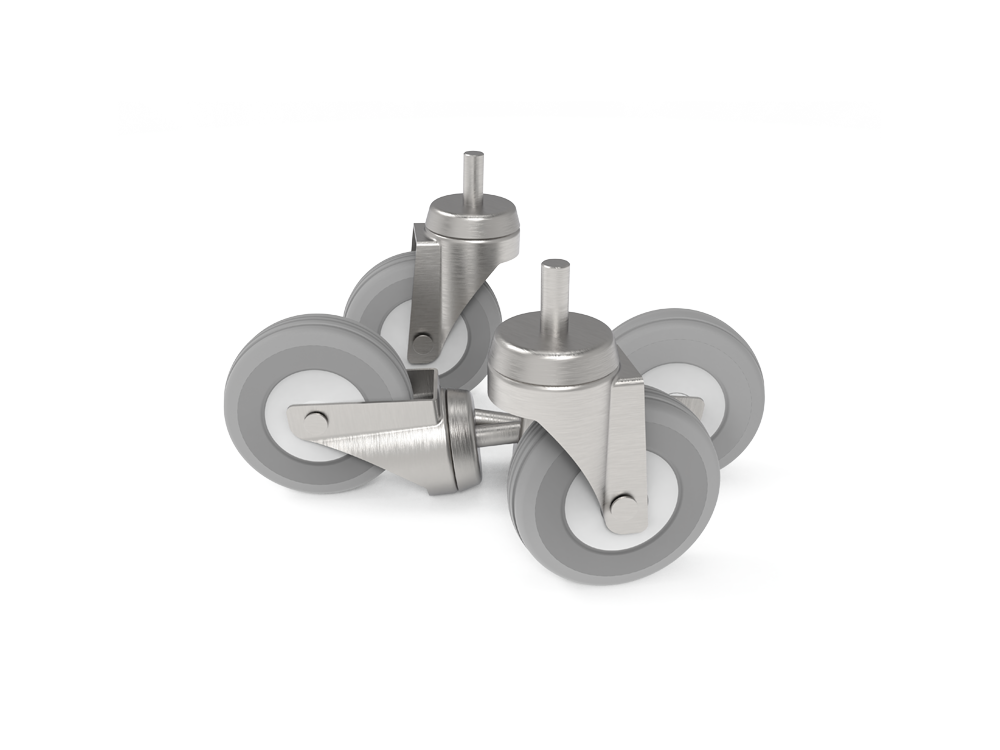

KW-HM 80
SL-CH 115
MSA 220BKS
FMS 220BKS
Speaker Stand
SL-C 115
Nylon Cover
SL-CH 115
Nylon Cover
MSA 220BKS
Speaker Stand
