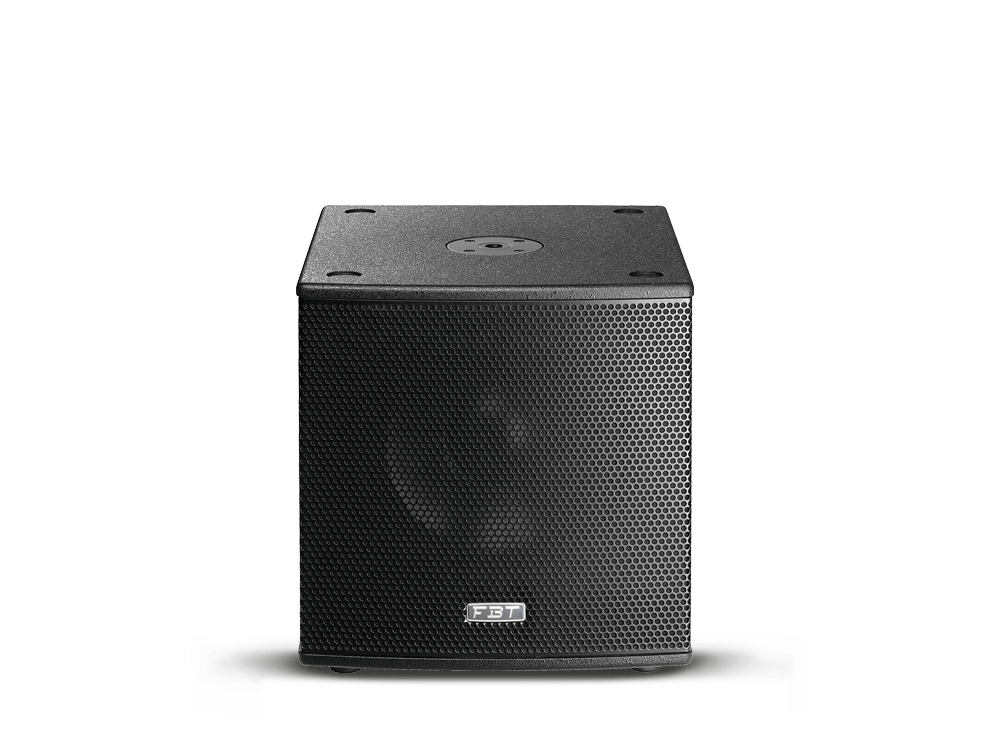

SUBLINE 112SA

ACTIVE SUBWOOFER 12"

Click on the image to zoom

Download Accessories

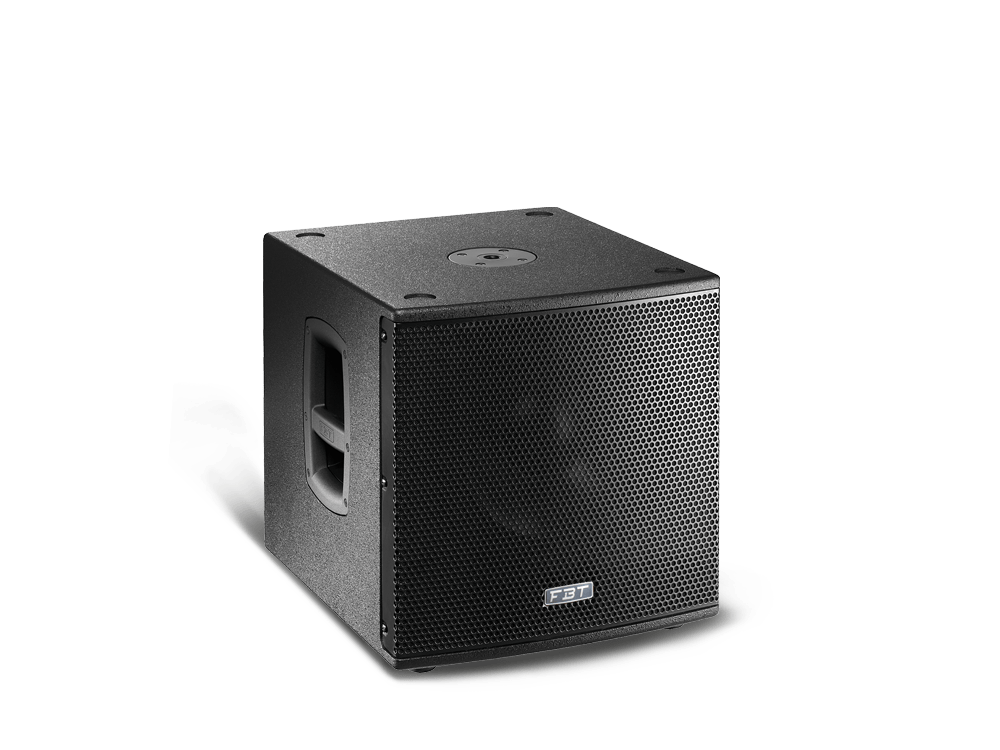

The SUBLINE 112SA is a compact active subwoofer designed for applications where powerful bass is needed in a portable, lightweight format. It features a 12” high-excursion woofer with a 2.5” voice coil, powered by a 700W Class D amplifier delivering precise low-frequency performance. Constructed from robust birch plywood with a scratch-resistant paint finish, this subwoofer includes ergonomic carrying handles and an M20 top mount for pole installation.

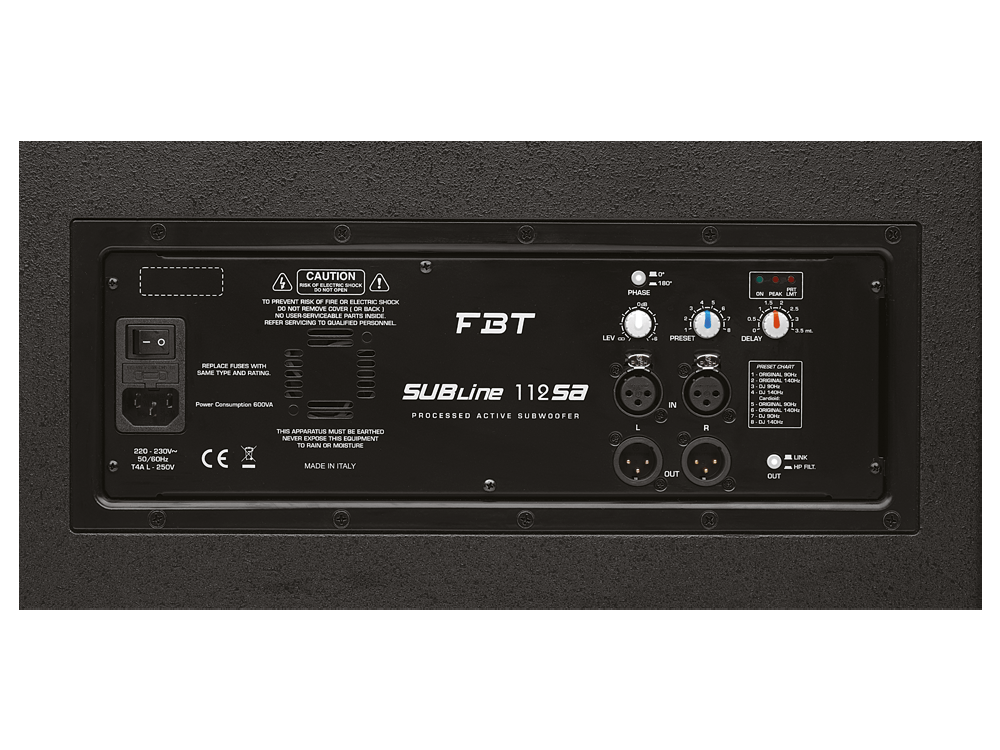

Integrated DSP with 8 presets ensures flexible system tuning, making it the perfect match for FBT’s active full-range speakers in both live and installed sound setups. The SUBLINE 112SA features balanced stereo XLR IN and LINK OUT connectors, volume control, phase inversion, and HP filter for seamless integration and crossover management.

Configuration: Bass reflex
Low Frequency Woofer: 1 x 12” – 3” VC
Built-in Amplifier: 700W RMS
Maximum SPL: 133dB
Material: Baltic birch plywood

Technical Specifications

Code:

41223

Configuration:

1 way Reflex

Built-in amplifier LF/HF:

700W RMS

Built-in amplifier peak LF/HF:

1400W

Frequency response:

40Hz - 140Hz -6dB

Low Frequency woofer:

12'' - 3'' coil

Maximum SPL cont/peak:

130 / 133dB half-space

Dispersion:

Omnidirectional

Input impedance:

22 Kohm

Crossover Frequency:

90Hz - 140Hz

AC Power requirements:

600 VA

Input connector:

XLR IN/OUT

Power cord:

5 m / 16.4 ft

Net Dimension (WxHxD):

430 x 447 x 480 mm / 16.9 x 21.5 x 18.9 inch

Net Weight:

22.8 Kg / 50.2 lb

Transport Dimension (WxHxD):

582 x 545 x 530 mm / 22.9 x 21.4 x 20.8 inch

Transport Weight:

26 Kg / 57.3 lb
