- Configuration: Bass reflex
- Low Frequency Woofer: 1 x 12” – 3” VC
- Recommended Amplifier: 700W RMS
- Maximum SPL: 133dB
- Material: Baltic birch plywood

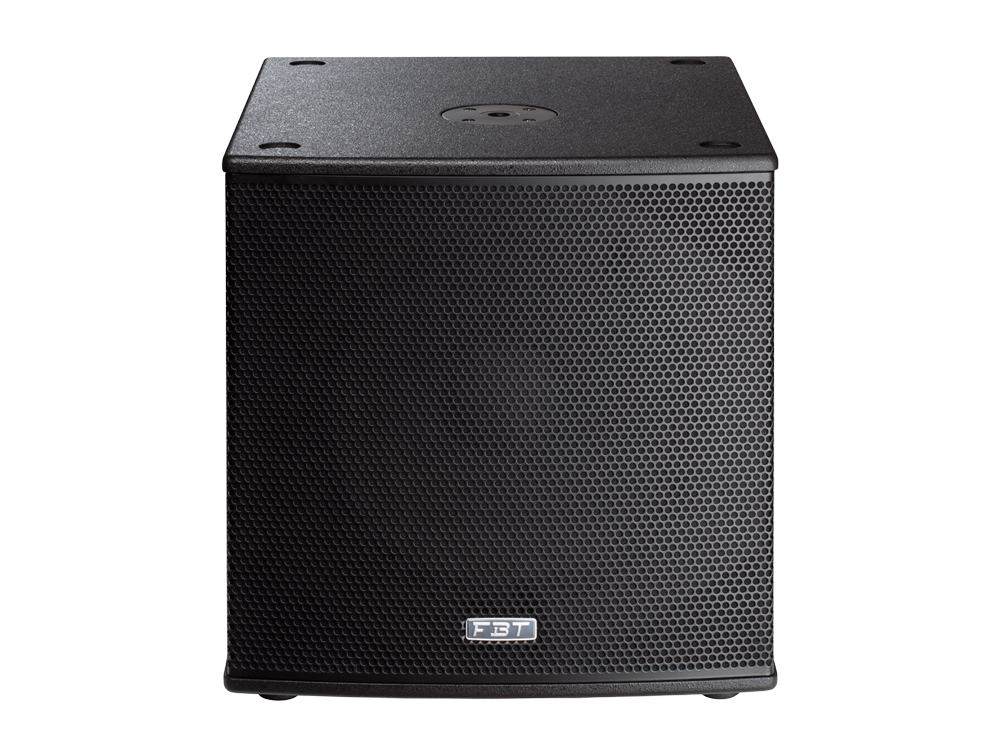

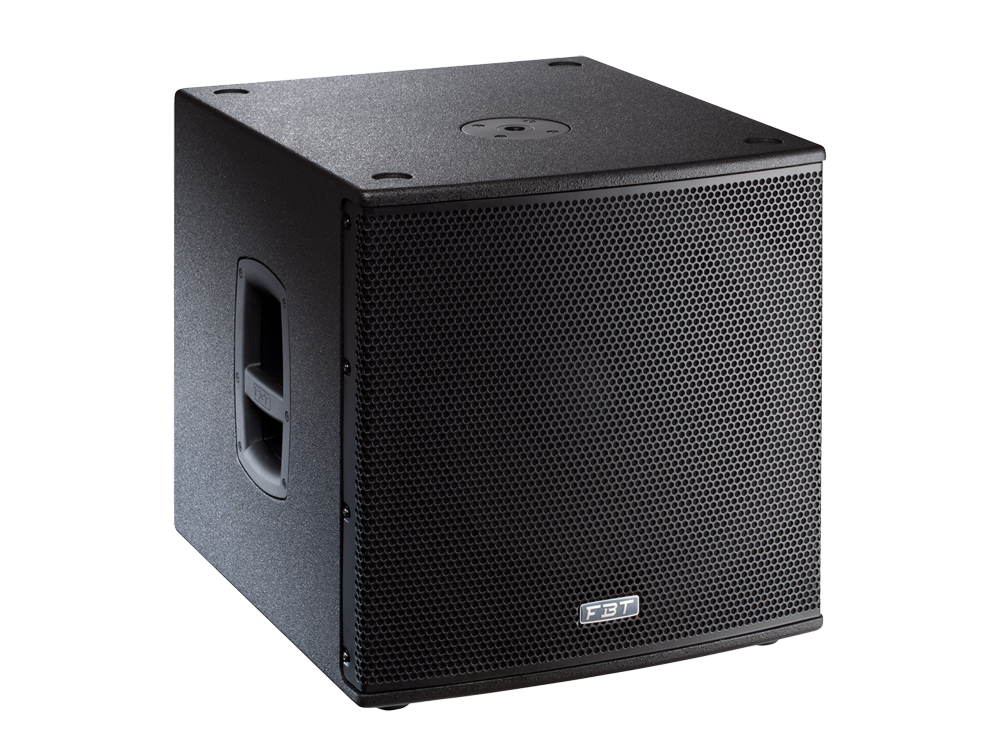

The SUBLINE 112S is a compact passive subwoofer designed for applications where powerful bass is required in a lightweight and portable format. It features a 12” high-excursion woofer with a 3” voice coil, providing precise low-frequency response with punch and clarity.Constructed from robust birch plywood with a scratch-resistant paint finish, this subwoofer is equipped with ergonomic carrying handles and an M20 top mount for pole installation.
It is the ideal complement to FBT’s portable full-range speakers, adding depth and energy to both live performances and installed sound systems. SUBLINE 112S is equipped with integrated Speakon NL4 IN & LINK connectors for secure signal connection and is optimized for use with an external processor (such as the DLM26) to ensure precise crossover management and system alignment.
41512
1 way Reflex
700W RMS
350W
1400W
8 Ohm
45Hz - 140Hz -6dB
12'' - 3'' coil
130 / 133dB half-space
Omnidirectional
---
2 x Neutrik Speakon
430 x 447 x 480 mm / 16.9 x 21.5 x 18.9 inch
20 Kg / 44.1 lb
582 x 545 x 530 mm / 22.9 x 21.4 x 20.8 inch
24 Kg / 52.9 lb
