MSP 420 TW/EN

SOUND PROJECTOR 5"

MSP 420 TW/EN

Weatherproof - EN54-24

MSP 420 TW/EN

Click on the image to zoom

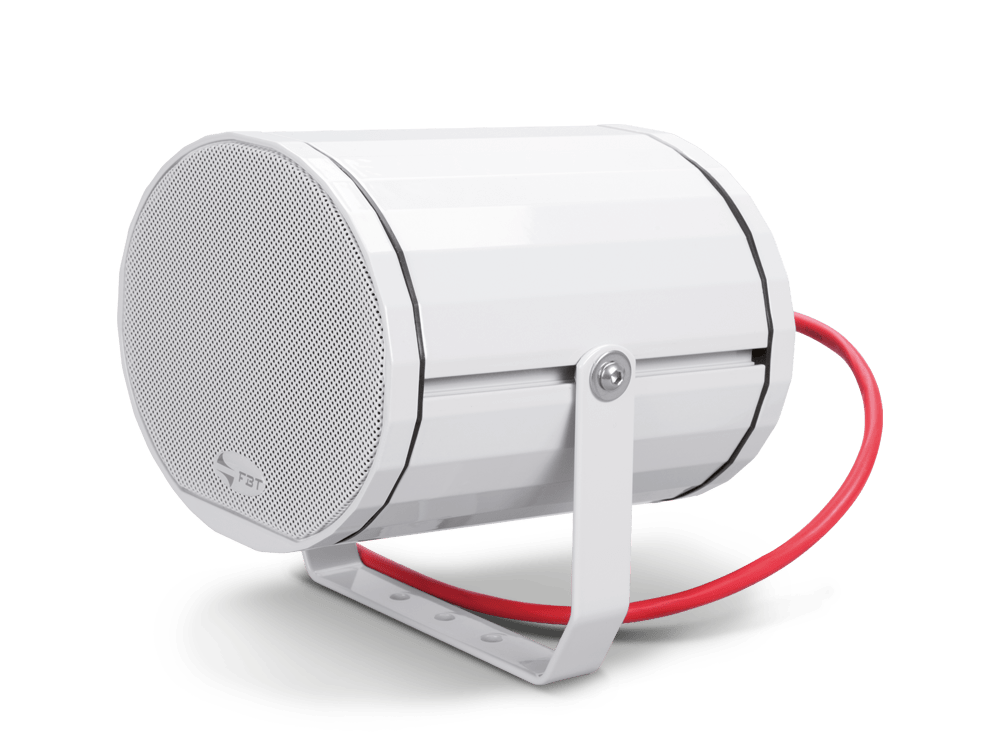

The MSP 420TW/EN sound projector combines durability, safety, and superior sound performance in one robust design. Constructed with a high-strength aluminium alloy housing and a steel front grille, it is built to withstand even the most demanding environments.

Designed for emergency and evacuation systems, each unit is equipped with a fireproof cable (80 cm, compliant with UNI 9795:2010), a ceramic terminal strip, and a thermal fuse. These features provide reliable protection for the speaker line, ensuring continued operation even if one or more units are damaged by fire.

The smart mounting system allows for quick and easy installation, with a swivelling bracket that lets you adjust the projector to the optimal direction for sound coverage.

The MSP 420TW/EN features an integrated constant-voltage transformer (50 V, 70 V, 100 V), making it ideal for professional audio installations that demand both performance and safety.

  • Fullrange: 5″

  • Maximum SPL: 105dB

  • Certification EN 54-24

Technical Specifications

37734

1 way

Horn & Projector

150 - 15.000

92 / 80

aluminum / steel

20 / 10 / 5

180 x 145 x 178 mm / 3.93 x 9.80 x 7 inch

2.5 Kg / 5.51 Lb

5''

105 / 93
