The MIURA 8008I is a high-power, 8-channel Class D amplifier designed for fixed installations requiring flexibility, precision, and reliable high-output performance. Delivering up to 8×1000W at 4Ω, or 4×2000W at 100V in bridge mode, it supports both low-impedance (4/8/16Ω) and high-impedance (70/100V) lines with full asymmetric power distribution. Integrated Dante audio streaming (4 channels) and TCP/IP control (AES70 compatible) via EtherCON ports allow seamless integration into networked systems through INFINITO software. The amplifier also features AES3 digital inputs with link, to ensure compatibility with professional-grade systems. A front OLED display with encoder ensures onboard setup, while Euroblock I/O, GPIO, and comprehensive protection features guarantee safe, long-term operation in demanding installation environments.
-
8×1000W at 4Ω – 8×900W at 70V – 4×2000W at 100V BTL
-
Class D architecture with ultra-low distortion
-
4-channel Dante receiver (24bit, 48–96kHz)
-
TCP/IP AES70 control via INFINITO software
-
Universal PSU with PFC, auto-standby, and high transient response
-
Asymmetric loading per channel, with SE/BTL/Parallel modes
-

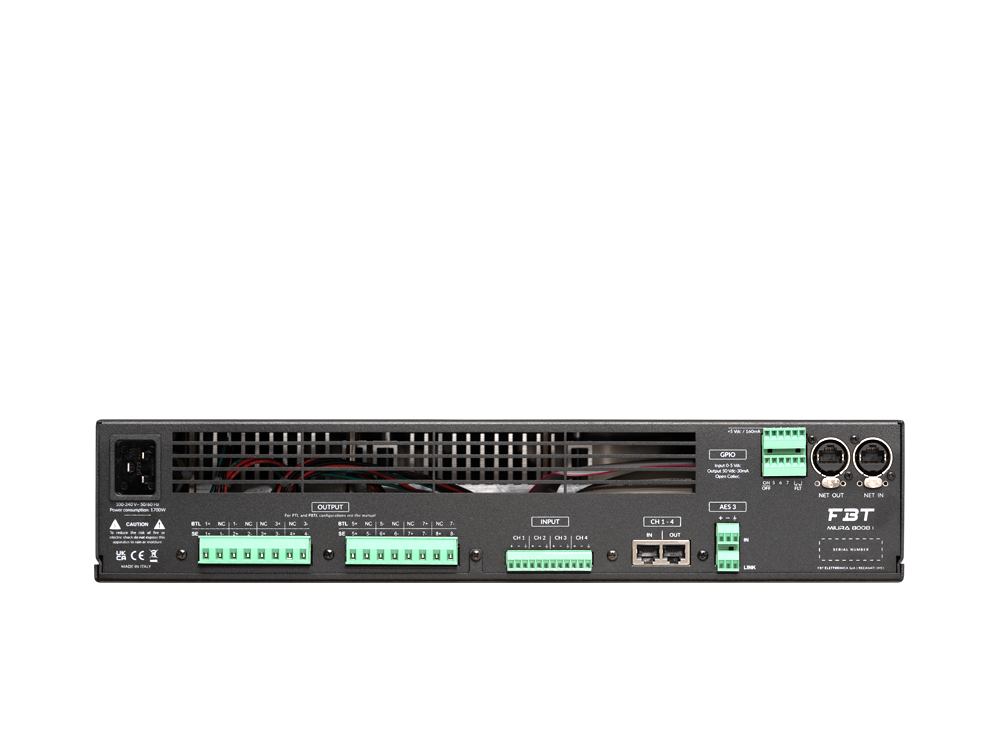

Screw-type Euroblock I/O, 8-channel GPIO, EtherCON network ports
Technical Specifications
44014
20 - 20k (-0.5dB , 3dB below rated power)
Class D - PWM modulator with ultra low distortion
Short Circuit, DC, Undervoltage, Temperature, Overload
482 x 88 x 504 mm / 18.97 x 3.46 x 19.84 inch 2U Rack Mount
9 Kg / 19.84 Lb
