The MIURA 4004I is a high-power 4-channel Class D amplifier housed in a robust 2U chassis, designed for fixed installations and demanding AV applications. It delivers up to 4×1000 W at 4 Ohm, 4×900 W at 70V, or 2×2000 W at 100V in bridge mode, with asymmetric output distribution per channel. The amplifier supports Single-Ended, Bridge, and Parallel modes, offering direct drive to both low and high-impedance systems with extended headroom and efficiency. Network control is enabled via TCP/IP (AES70 compatible) and fully integrated with INFINITO software. A 4-channel Dante receiver, AES3 digital audio input/output with link, and EtherCON ports provide full network integration. The front OLED display with encoder enables onboard configuration, while rear Euroblock I/O and GPIO ensure secure and professional installation.
-
4×1000 W at 4 Ohm – 4×900 W at 70V – 2×2000 W at 100V (BTL)
-
Asymmetric power sharing with SE, Bridge, and Parallel modes
-
Class D topology with PWM and ultra-low distortion (<0.05% THD+N)
-
4-channel Dante receiver (24bit, 48–96kHz) over TCP/IP
-
Network control via EtherCON (TCP/IP – AES70 – INFINITO)
-
AES3 digital audio I/O with link
-
Auto-Standby and universal PSU with Power Factor Correction
-

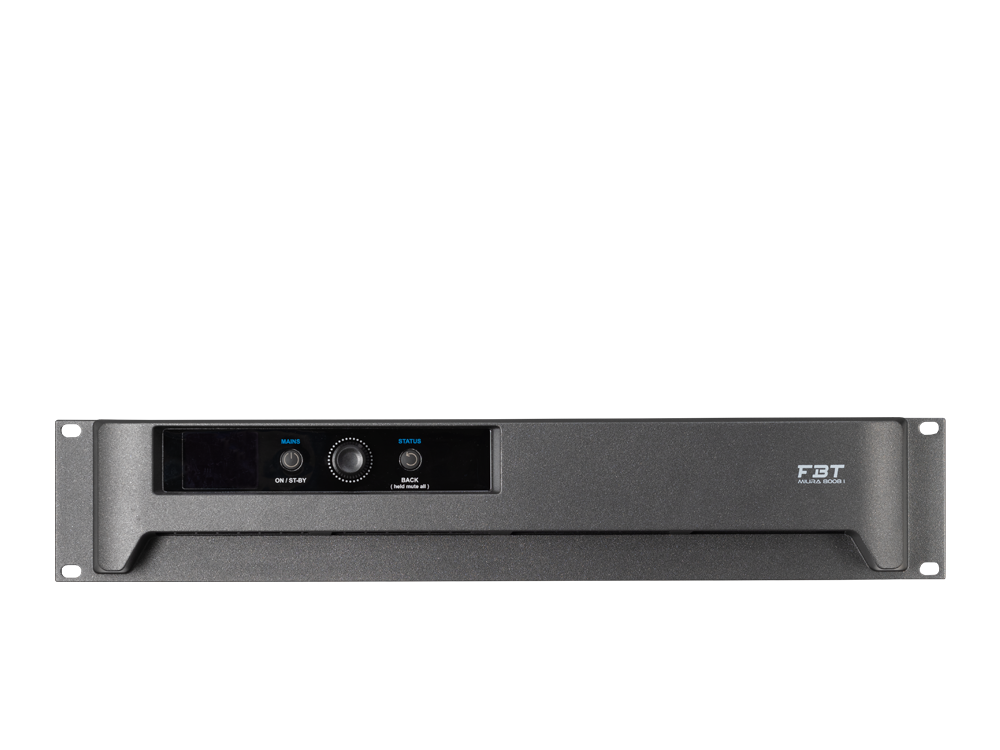

OLED display with encoder for local configuration
-

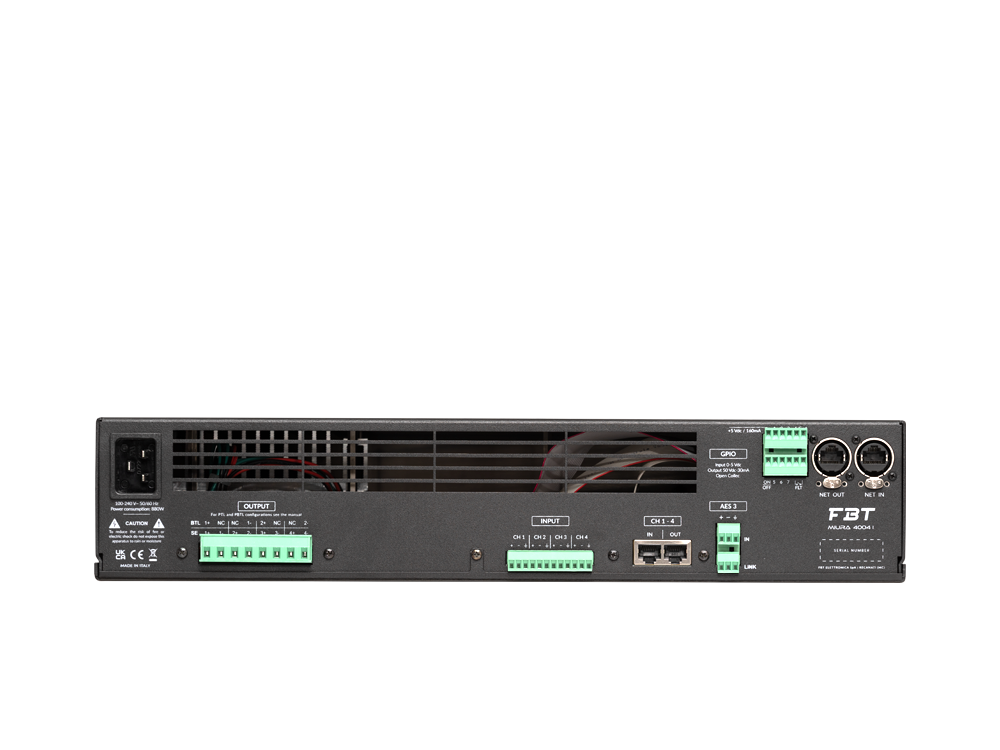

Euroblock connectors, 8-channel GPIO
Technical Specifications
45513
20 - 20k (-0.5dB , 3dB below rated power)
Class D - PWM modulator with ultra low distortion
Short Circuit, DC, Undervoltage, Temperature, Overload
482 x 88 x 504 mm / 18.97 x 3.46 x 19.84 inch 2U Rack Mount
6.7 Kg / 14.77 Lb
