MITUS 118S

PASSIVE SUBWOOFER 18"

Click on the image to zoom

Download Accessories

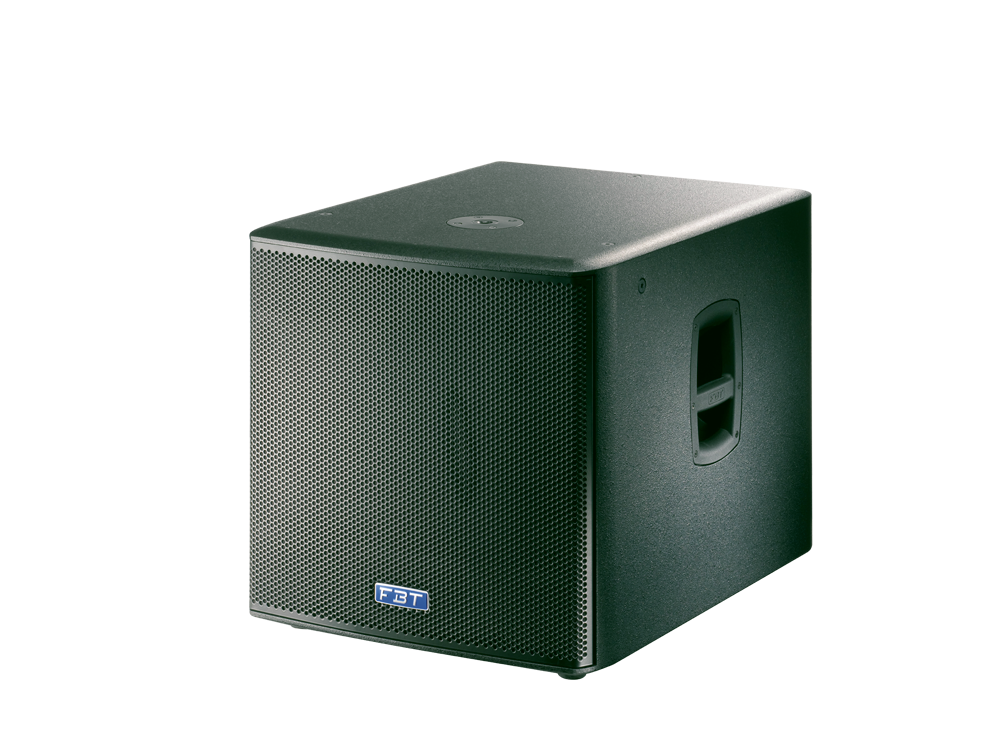

MITUS 118S is a compact 18″ passive band-pass subwoofer designed as the perfect low-frequency extension for the Mitus series, particularly when paired with the MITUS 206LA in ground-stacked configurations using the optional metal base. It delivers powerful and controlled bass response with a peak SPL of 138 dB and extended frequency range down to 36Hz. Constructed from 18 mm birch plywood with a scratch-resistant black coating, the cabinet includes eight M10 fly points, an M20 top-mounted pole socket, and two custom FBT aluminum handles. Recommended power amplifier 1000W RMS @ 4 Ohm.

Configuration: band pass
Low Frequency Woofer: 1 x 18″ – 3″ VC
Recommended Amplifier: 1000W RMS
Maximum SPL: 138 dB
Material: 18mm birch plywood

Technical Specifications

Code:

31861

Configuration:

Vented bass pass

Recommended amplifier:

1000W RMS

Long Term power:

500W

Short term power:

2000W

Nominal impedance:

4 Ohm

Frequency response:

36Hz - 200Hz @-6dB

Low Frequency woofer:

18'' - 3'' vc

Maximum SPL cont/peak:

135 / 138dB half space

Dispersion:

Omnidirectional

Crossover Frequency:

External active

Input connector:

2 x Speakon NL4

Net Dimension (WxHxD):

574 x 593 x 730 mm / 22.59 x 23.34 x 28.74 inch

Net Weight:

45.20 Kg /99.64lB

Transport Dimension (WxHxD):

810 x 780 x 710 mm / 31.9 x 30.7 x 28 inch (with pallet)

Transport Weight:

55.5 Kg / 122.3 lb

Download

Datasheet

1.35 MB

User Manual

34.65 MB

GLL Library Ease & Focus

10.46 MB
