This connection system entails each speaker being equipped with its own line transformer. The amplifier must be supplied with 100V or 70V constant voltage outputs. The loudspeakers, connected in parallel to the amplifier output, will make it easy to amplify the system deriving from any of the speakers installed previously, if necessary; in the same manner, loudspeakers which are no longer necessary can be eliminated.
In the connections, the “phase” both of the individual speaker to its transformer and the in-parallel connection of the speaker must be respected. The input voltage of the speaker must correspond to the output voltage of the amplifier; the sum total of the rated power output of all the speakers connected to the line must not exceed that of the amplifier.

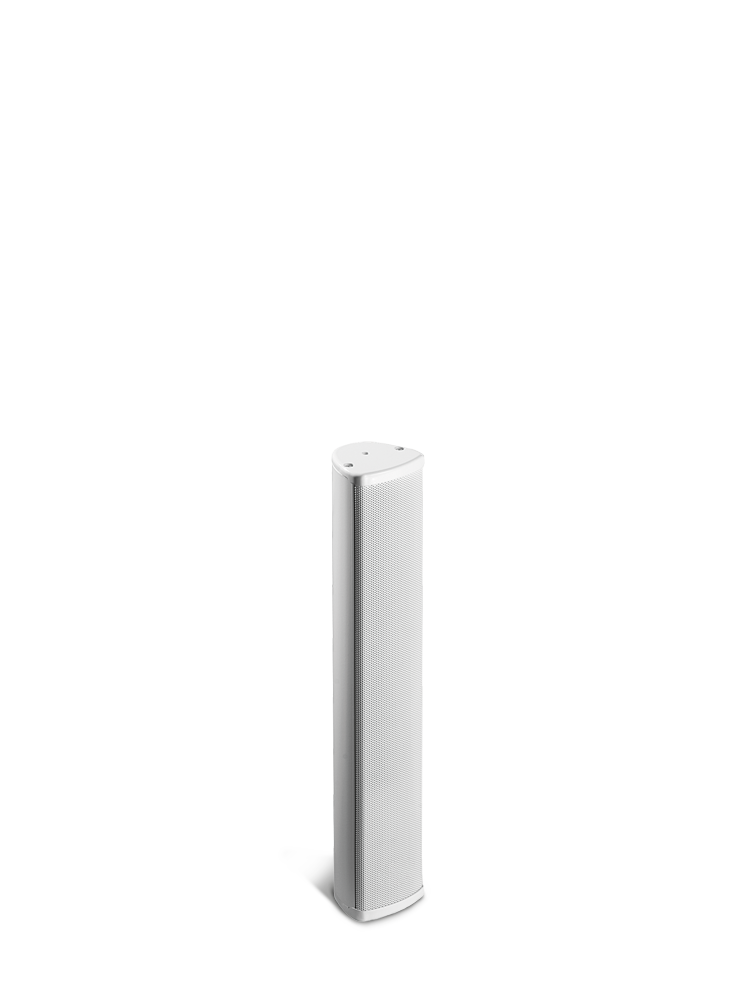

- Configuration: 2 way
- Low Frequency Woofer: 4 x 2” – 1” VC
- High Frequency Driver: 1” – 1” VC
- Recommended Amplifier: 60W RMS
- Maximum SPL: 112dB
- Material: Aluminium
Technical Specifications
37922
2 way
cOLUMN
180 - 18.000Hz (@ - 10dB)
91
Aluminium
30 / 15 / 7.5W
4 x 2'' - 1'' VC
1'' - 1'' VC
74.5 x 405 x 69 mm / 2.9 x 16 x 2.7 inch
1.8 Kg / 4 lb
60w
30w
120w
8 Ohm
---
109 / 112
